2. Place awning onto brackets, ensuring the two (2) grooves in back of awning fall over the two
(2) lips on brackets (Fig. 25) while feeding awning motor cable through previously drilled
hole.
3. Seal motor wire with silicone.
4. Secure awning by moving slide locks (moved in step A-3) along bottom awning track until
centered under respective brackets, directly below arm connection.

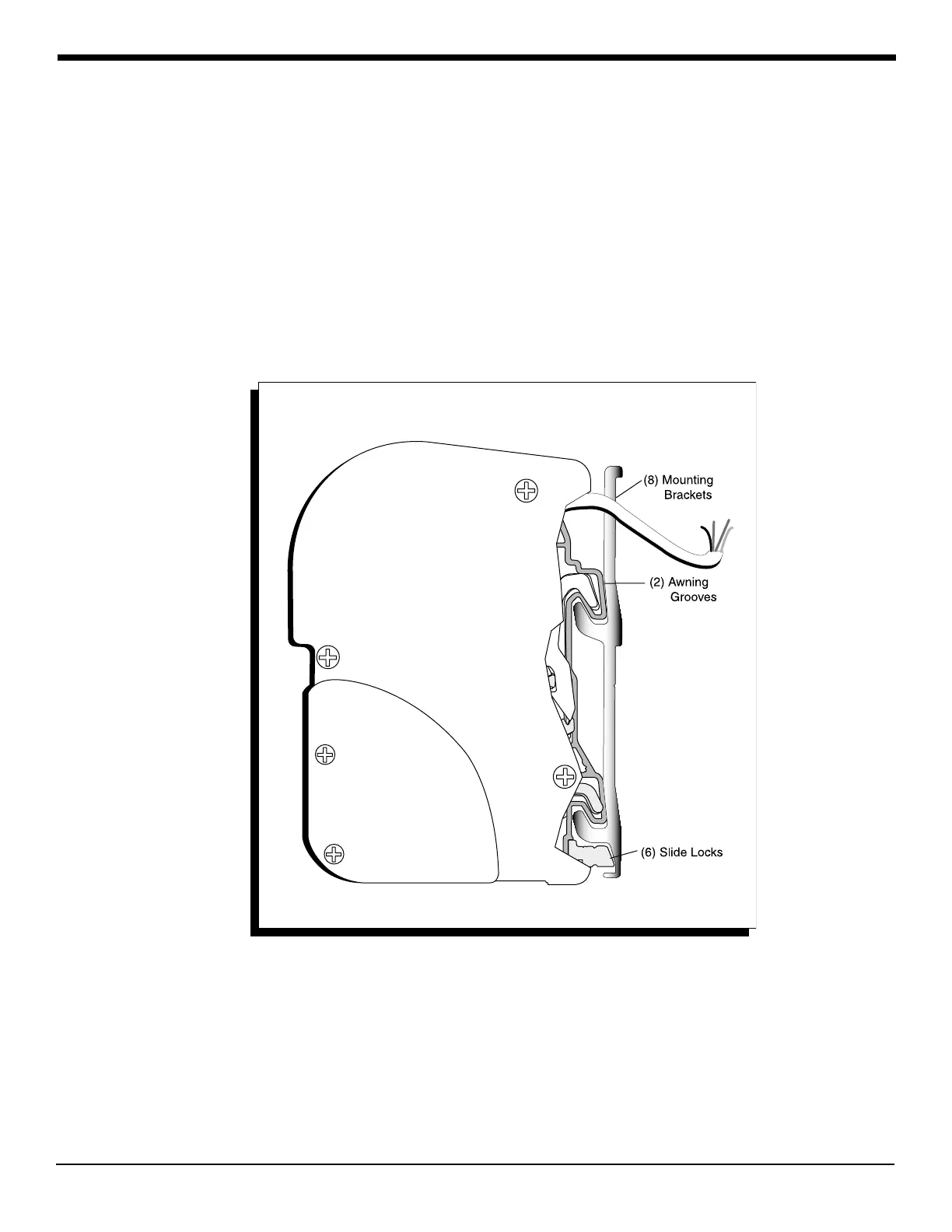

figure 25
awning – end view
5. Tighten set screws into slide lock of each mounting bracket.
