52
position of swinging baffle motor of trim panel onto the hook of indoor unit (notice not winding the
swinging motor conductor into sealing materials)
b. Temporarily hang the other 2 buckles onto the hook of indoor unit. (Notice not winding the swinging
motor conductor into sealing materials.)
c. Screw 4 hexagon bolts under the hook in for about 5mm. (The panel will lift)
d. Tighten the screw till the thickness of sealing materials between trim panel and indoor unit decreases
to 5-8mm.

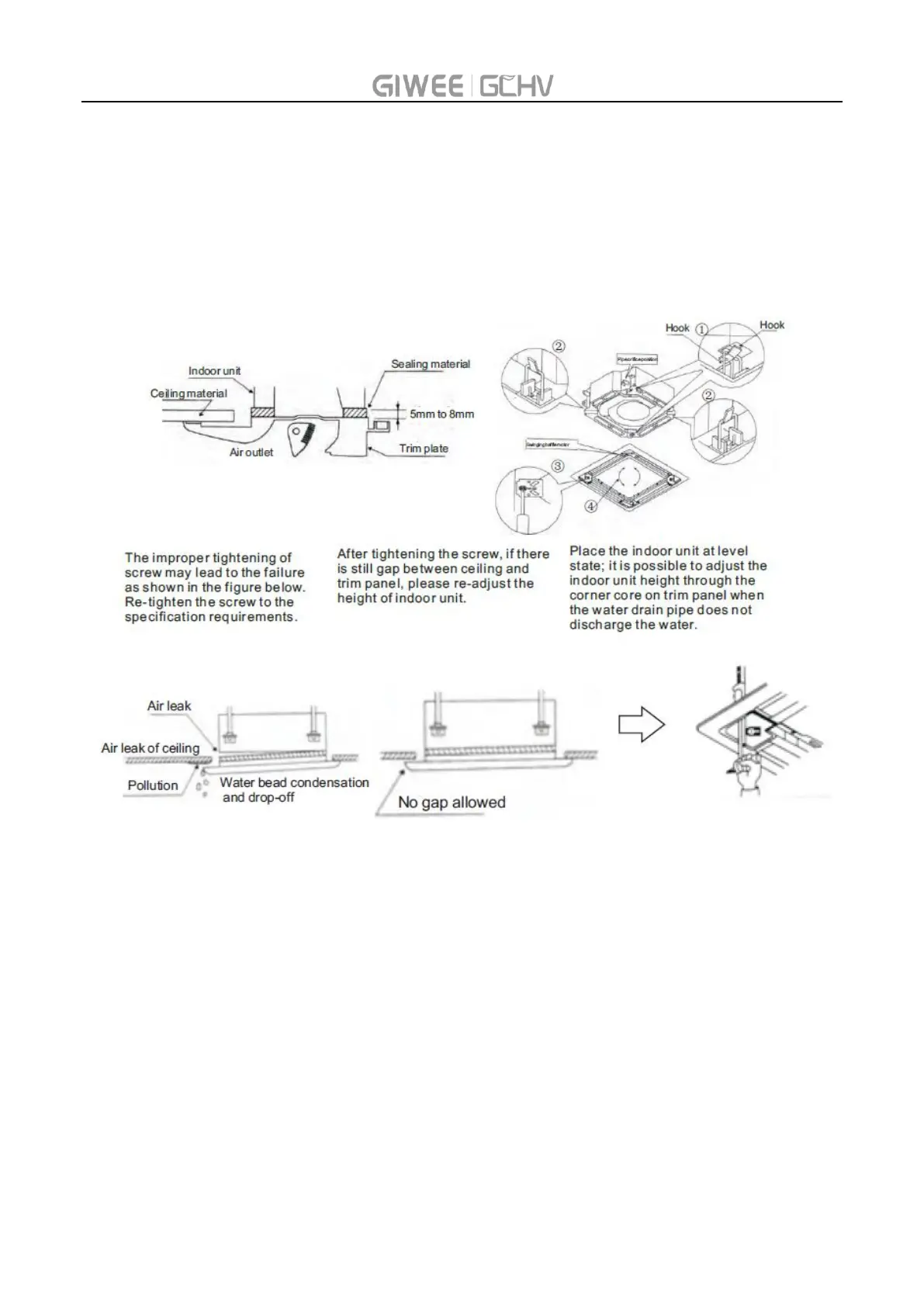

C. Hoisting height of indoor unit
Please adjust the hoisting height of indoor unit to make the dimensions of indoor unit under the ceiling
as shown in below figure.
When there is gap between indoor unit and panel, the condensation may occur.
a. Connect the joint of swinging baffle motor conductor (on the panel).
b. If not connecting the joint, the swinging baffle will not action. Properly connect the joint.
c. Confirm the conductor of swinging baffle motor is not clamped
between indoor unit and trim panel.
