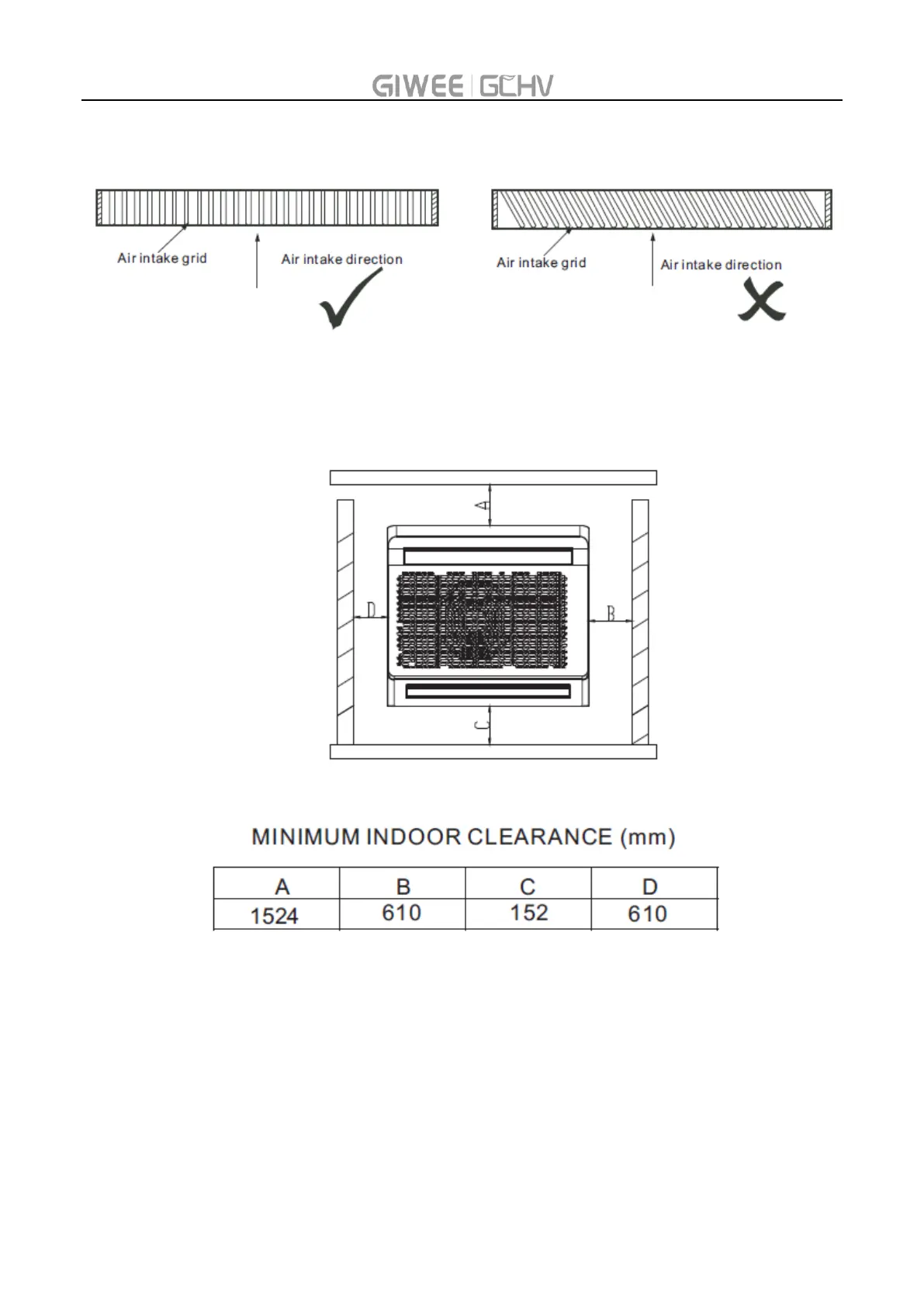

2) There shall not any angle between the air grid angle and the air intake direction. Otherwise, it
may increase the noise. Right picture is the incorrect making method of the air intake grid.
7. Installation of console
7.1 Space required for installation
7.2 Installation of main body
Begin the console indoor unit installation by removing the front panel and cabinet section to gain
access to the unit mounting holes. Remove the front cabinet from the unit casing. Locate and remove
6 mounting screws. Refer to figure below.
