5.3 Panel installation
A. Install the panel
Do not face the panel downward; do not lean against the wall or onto the protruding object.
Do not knock or extrude the swinging baffle. (Otherwise it may lead to failure)

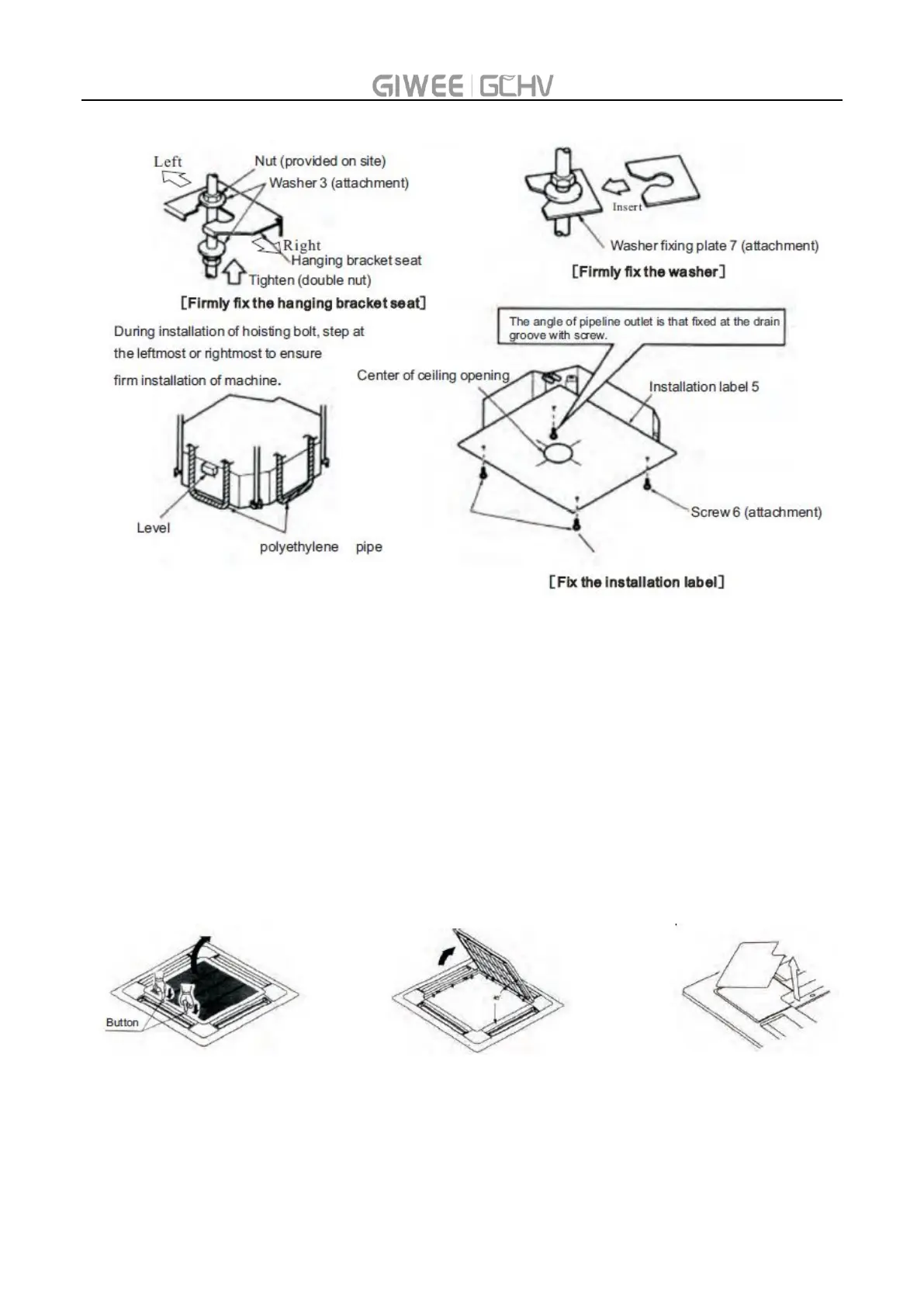

Take down the air return grating from the trim panel
1) First pull down the air return grating and then pull up the other end of button. (See the figure below)
2) Pull up the grating for about 45 degrees and take down the air return grating on trim panel. (See the
figure below)
Take down the seal cover on angle (pull out the seal cover, as shown in figure below)
B. Install the panel on indoor unit
As shown in the figure below, align the position of swinging baffle motor on trim panel with the pipe
opening position of indoor unit for ease of installation of trim panel onto the indoor unit.
a. Temporarily install the trim panel onto the indoor unit; during installation, hang the buckle on reverse
