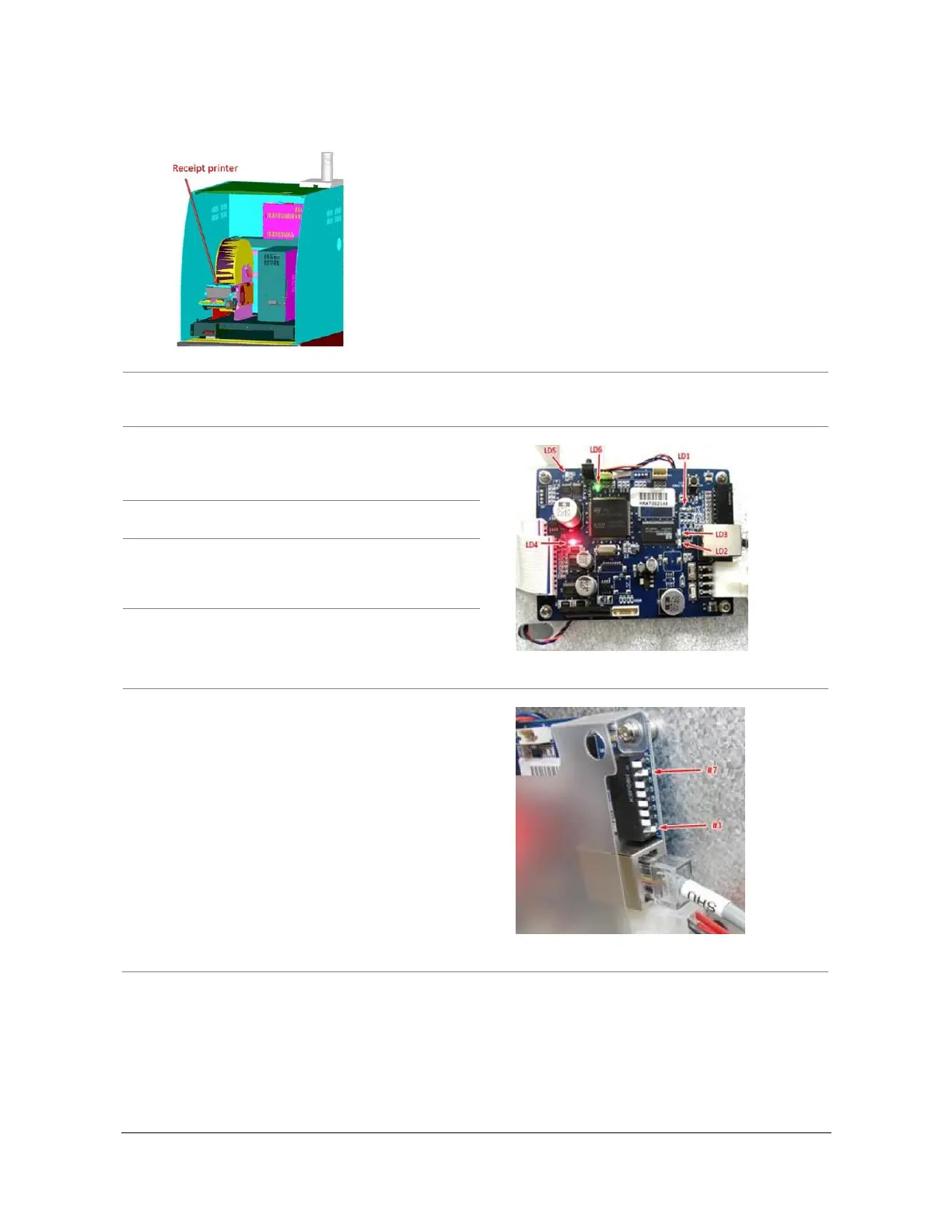

Receipt Printer
Receipt Printer
Settings and
Indicators
Description
Power, DC Input
LED LD4 on control board
always in solid red
LED LD6 always in solid
green
Printer Control Board and its LEDs
Control Board CPU
LED LD1 on control board
always blinking green
Communication
LEDs LD2 and LD3 on
control board: no light at idle
state, but blinking in green
during communication
Thermal Printing
LED LD6 on control board:
no light at idle state, but
solid green during printing
DIP Switches
Set to baud rate of 115200
(8 switches)
 #1 and #7 to ON or
Down
 Others to OFF or Up
Printer Control Board and its DIP Switches
