Global Payments LSA6000 - Cash Dispensing Unit Note Path; Note Dispensing Unit Sensors

LSA6000 User Manual, March 2021 43
© 2017 Global Payments Inc. CONFIDENTIAL

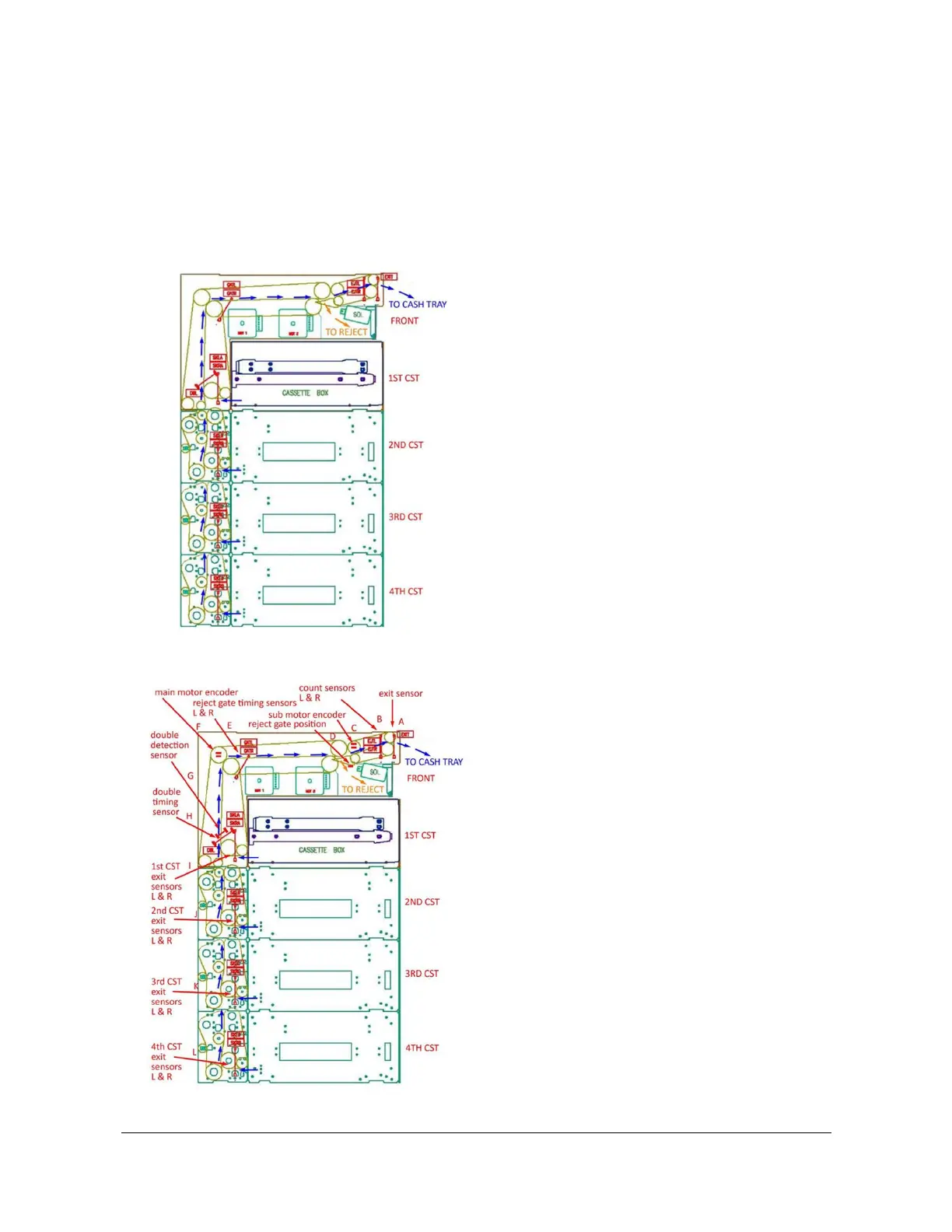

Cash Dispensing Unit Note Path
The CDU note path is as follows:
 Notes are picked up from the rear bottom of each cassette.
 Notes are transported upward all the way to the rear corner of the HCDU.
 Notes are transported forward to the reject gate:
o Normal path to cash tray (in blue arrow), or
o Reject into reject bin (in yellow arrow)
Note Dispensing Unit Sensors
