Global Surgical SMR MAXI Standard User Manual

Section 2 Unpacking and Preparation for Use
2-3
V
A
C
U
U
M
P
R
E
S
S
U
R
E
O
F
F
M
A
I
N
P
O
W
E
R
M
A
X
I
T
M
S
M
R
2.2. Setting Up the S WA77710 Wall Transformer
If the cabinet has a S WA77710 Wall Transformer, the wall transformer and two corded illumination handles
are attached to the side of the cabinet and are ready for use. Attach the instrument heads of your choice to the
handles. Lift one handle from the cradle. The instrument powers on. Only one instrument can be powered on
at a time. See the manufacturer’s Wall Transformer Instructions for Use, part number 723553, 80020201 for
further information.
2.3. Setting Up the 123-000-072 HEINE NT300 Otoscope Charger
If the cabinet has a 123-007-072 Rechargeable Otoscope the cabinet does not need any additional
connections made. Unpack the rechargeable handles and verify proper operation before placing them into
their respective recharging wells. See the Heine manufactures Instructions for Use, med 0613 for further
information.
CAUTION
!
When replacing the handles in the charging compartments, ensure that the internal contacts
compartment are clean and that the instruments are switched o󰀨. Instruments placed next
to each other must not touch each other.

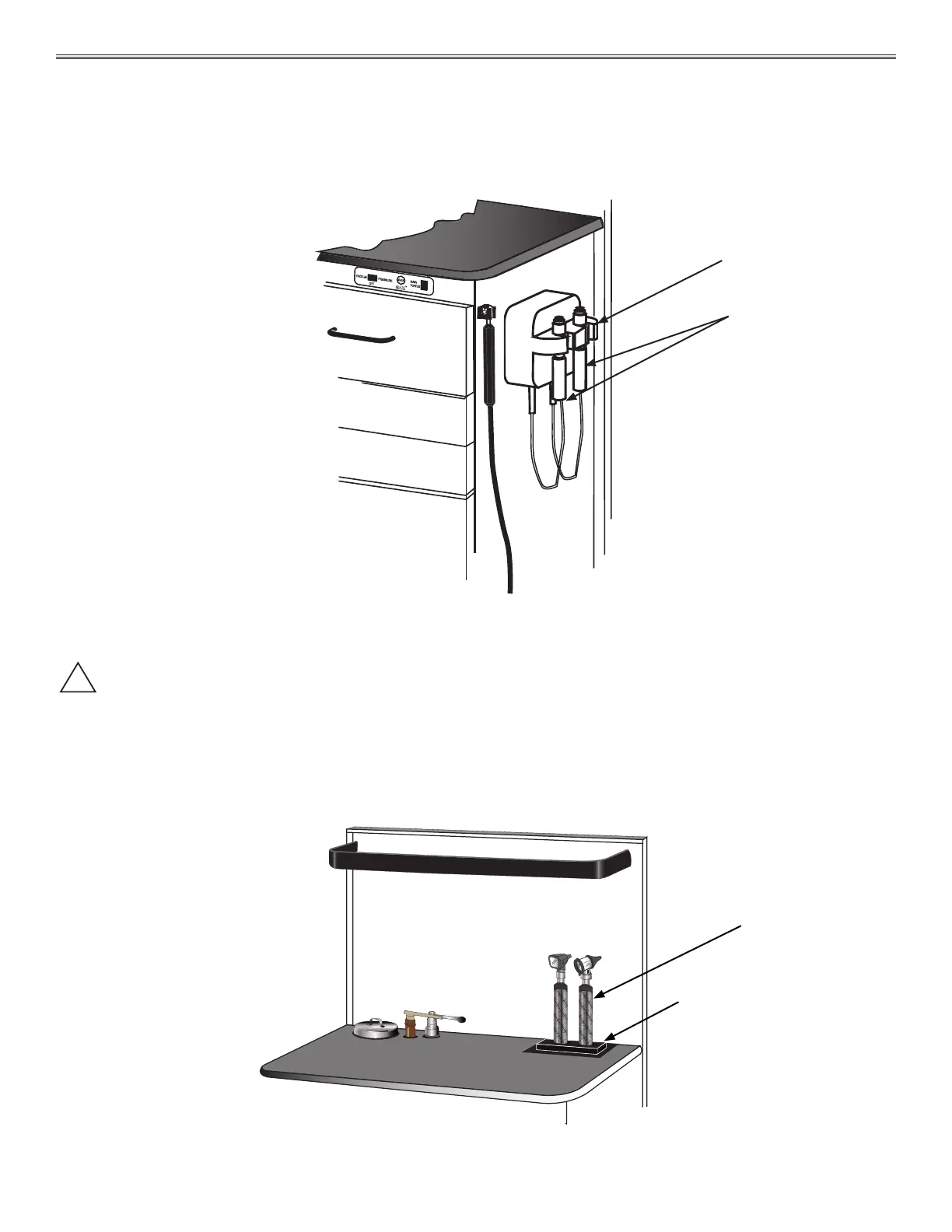

Wall Transformer with
Otoscope Handles, 110V
Illumination
Handles
Rechargeable Illumination
Console
Heine
Illumination
Handles
