Global Surgical SMR MAXI Standard User Manual

Section 4 Operating Instructions
4-4
No. Name Function
1 Power switch Turns the light source on and o󰀨. Fan will operate
2 Light guide adapter
Turret type to t your choice of four: Storz, ACMI, Wolf,
Olympus
3 Intensity control knob Electronically controls the light output.
4.5.1. Optional S 740200LED LED Light Source With Turret
4.5. Optional Light Source
2

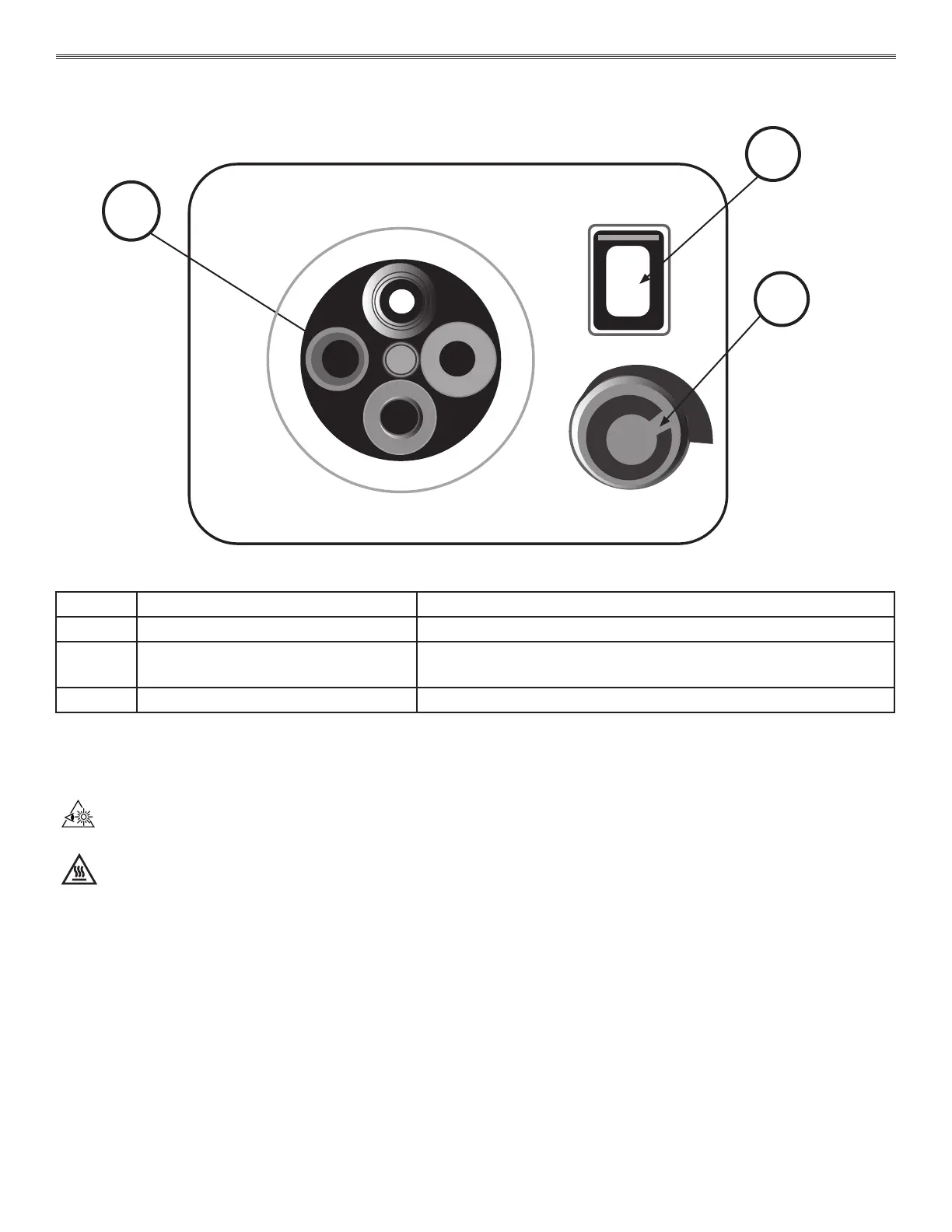

Figure 4-6 LED Light Source Front Panel
I
O
4.5.1.1. Powering Up The LED Light Source
To Operate the LED Light source:
1. Turn on the power switch. The indicator on the power switch will light.
4.5.1.2. Light Brightness Adjustment
1. The intensity control enables the user to obtain a brighter or darker illumination of the object of observation.
2. Adjust the light intensity by turning the intensity control knob clockwise for a brighter illumination and
counter-clockwise for a darker illumination.
See the manufacturer’s operator’s manual LIT168 for warnings, cleaning, fuse replacement and any other
additional information.
CAUTION
Connect an endoscope to the light guide adapter prior to turning on the light source,
or eye damage may occur.
1
3
CAUTION
Turret gets hot to touch when the light source is turned on. Take care installing and
removing endoscopic equipment.

Global Surgical SMR MAXI Standard Specifications

General

Brand	Global Surgical
Model	SMR MAXI Standard
Category	Medical Equipment
Language	English
