Global Surgical SMR MAXI Standard User Manual

Section 4 Operating Instructions
4-6

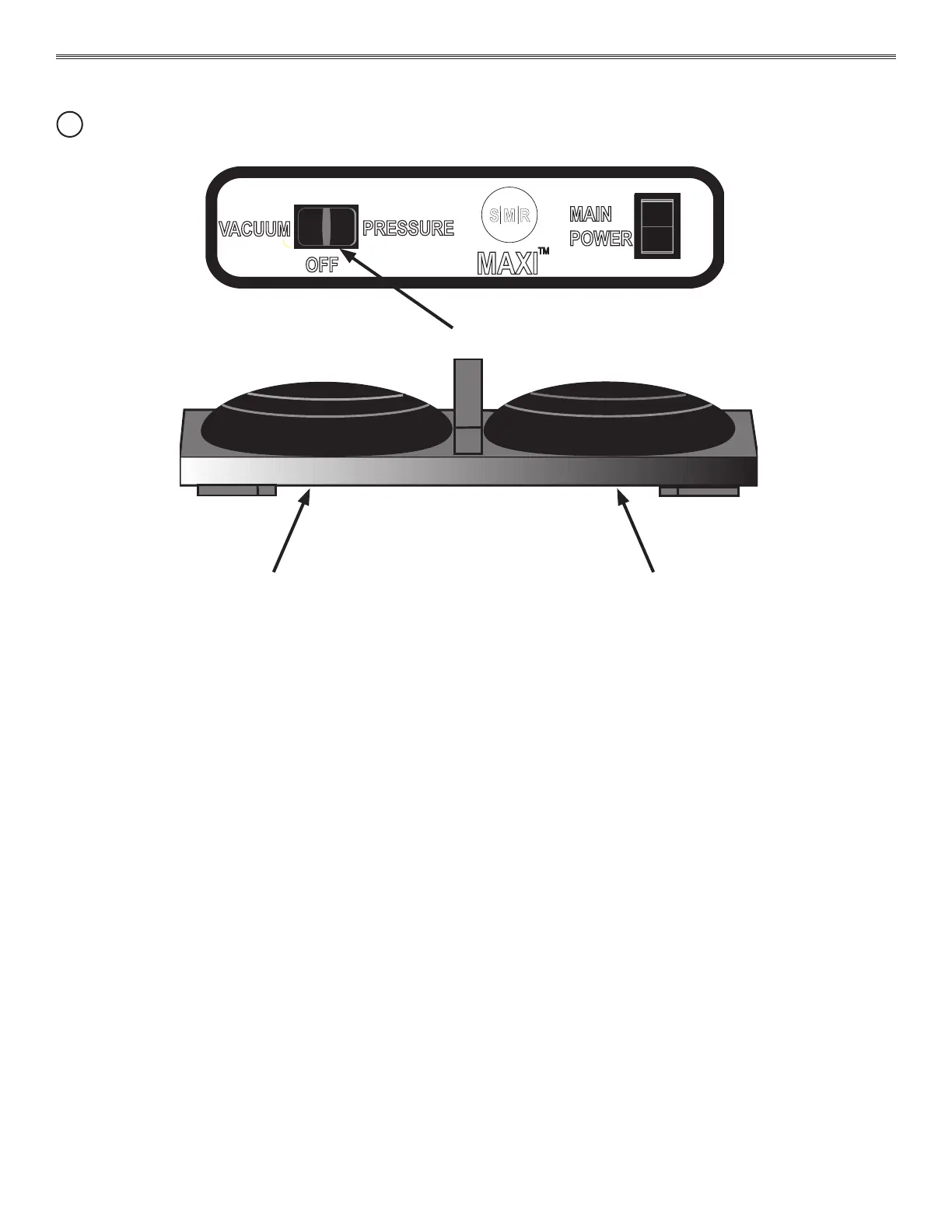

Figure 4-9. Optional S 7401355 Suction / Pressure Foot Switch Operation
Press Right Side
For Pressure
Press Left Side
For Vacuum
P
V
VACUUM
PRESSURE
OFF
MAIN
POWER
MAXI
TM
S M R
I
O
4.8. Optional S 7401355 Suction / Pressure Foot Switch
NOTE
!
To use the foot switch, the switch on the control switch panel must be set to the “OFF” position.
4.9. Pump Controls
The control panel controls the pumps in the cabinet. This switch is located on the front panel just below the
cabinet top. Refer to Figure 4-2 in this section.
4.9.1. Vacuum Pump Controls
The vacuum pump is energized by either:
1. Selecting “VACUUM” on the control panel and pressing the rocker-style switch to the left. See Figure 4-9.
2. Pressing down on the left side of the (optional) pneumatic foot switch. See Figure 4-9
When the vacuum pump is energized, suction will be present in the vacuum hose. The vacuum hose is
located on the left side of the cabinet (standard).
4.9.2. Pressure Pump Controls
The pressure pump is energized by either:
1. Selecting “PRESSURE” on the control panel and pressing the rocker-style switch to the right.
2. Pressing down on the right side of the (optional) foot switch. See Figure 4-9
TM
Turn the Control Panel Switch to the
OFF Position
