Global Surgical SMR MAXI Standard User Manual

Section 5 Care and Maintenance
5-7
To change the Hydrophobic Filter, follow the steps below and refer to Figure 5-3
1. Disconnect the hose from the vacuum pump to the lter.
2. Disconnect the hose from the disposable canister to the lter.
3. Dispose of the old lter.
4. Replace the tubing from the disposable canister to the new lter on the side that is marked “FLUID SIDE”
5. Attach the tubing from the vacuum pump to the other side of the new lter.

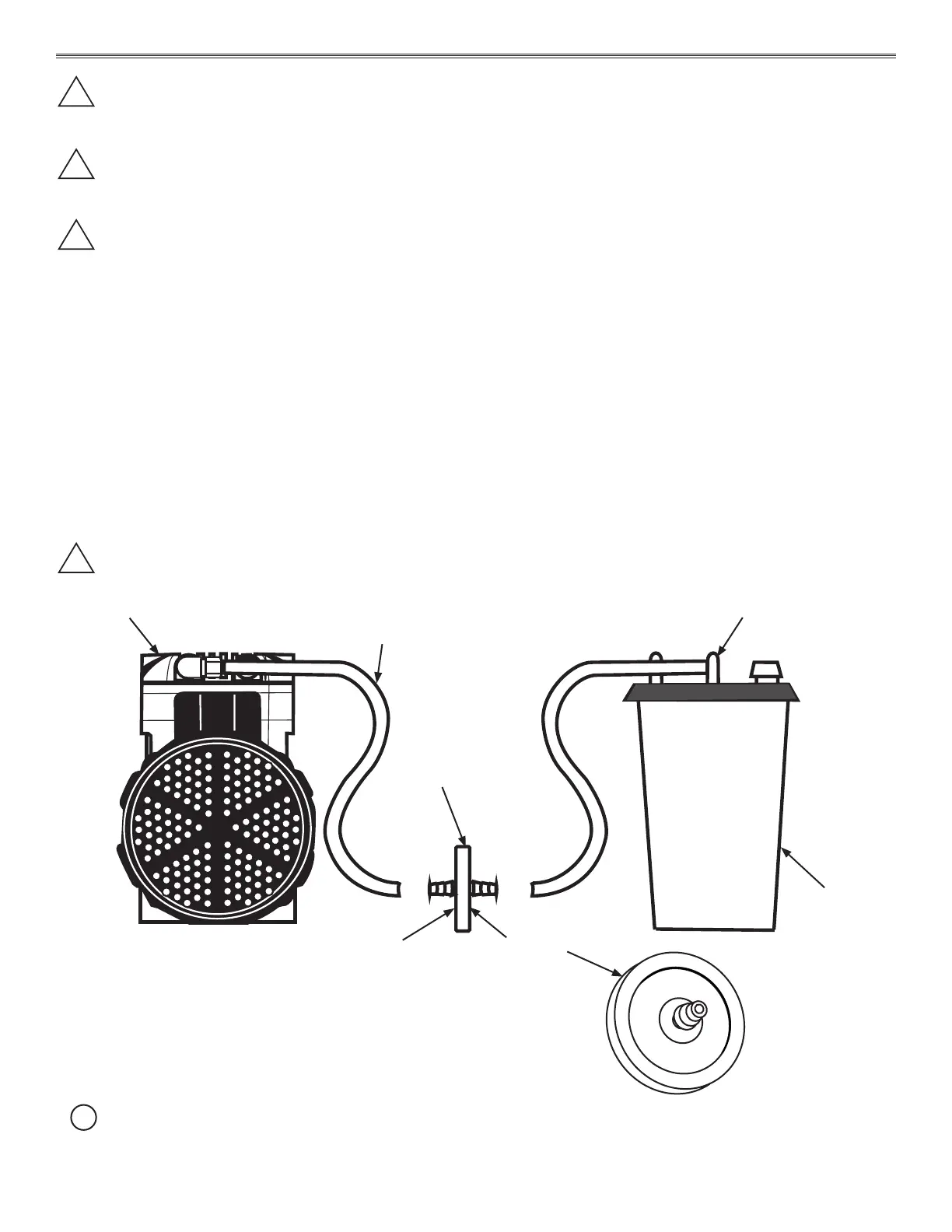

Figure 5-3. Replacing the S 850020 Hydrophobic Filter
CAUTION
!
Failure to replace this lter on a regular basis (at least once a month) will lead to reduced ow.
Non-use will lead to possible contamination and pump failure.
5.5. Replacing the S 850020 Hydrophobic Filter
The Hydrophobic Filter should be replaced every month or whenever lter/vacuum operation is impaired.
Contact your Global Surgical Representative for a supply of lters.
WARNING
!
A HYDROPHOBIC FILTER MUST BE USED TO PREVENT CONTAMINANT DAMAGE
TO THE PUMP. GLOBAL SURGICAL WILL NOT RECEIVE OR REPLACE ANY PUMP
WHERE THIS FILTER HAS NOT BEEN USED.
CAUTION
!
Extended use of alcohol or solvents may reduce the e󰀩ciency of the microporous
membrane of the HYDROPHOBIC FILTER. If these chemicals are used frequently, the
lter should be inspected and replaced more often than the recommended time.
CAUTION
!
Care should be used by all personnel coming into contact with suction equipment. Wear
gloves when handling suction equipment and hand washing is necessary to prevent the
possibility of cross-contamination.
Vacuum Pump
Vacuum Port
Vacuum Line
Fluid Side *
S 850020
Hydrophobic
Filter
S 600001
Collection
Canister
Pump Side
8
5
0
0
2
0
F
L
U
I
D
S
I
D
E
NOTE
!
The side of the lter marked “FLUID SIDE” should always face towards the collection canister.
