Section 7 Technical Information
7-1
Table 7-1 Pump Compartment Components
7.1. Cabinet Pump Compartment Components
NOTE: If you need more information than provided in this user manual, Global Surgical will provide assistance to
SERVICE PERSONNEL for parts repair. See Section 8.2 for Technical Service contact information.
Reference
No.
Part Number Description
1 102-027-011 Pressure Hose Assembly
2 102-005-251 Air Reservoir Assembly Pulsation Damper
3 027-021-032 Pressure Tubing
4 102-005-144 Air Regulator-Gauge Assembly
5 S 400446 Suction Hose, 1/4” ID x 1.5 m long
6 160-066 Hose Clamp
7 160-413 Screw, Suction Hose Clamp
8 102-032-612 Vacuum Pump Assembly, 115V
9 S850020 Disposable Hydrophobic Filter
10 102-009-017 Pressure Pump Assembly, 115V
11 S 600050 Canister Bracket Assembly
12 S 600001 Disposable Sunction Canister, 1200 ml
13 S 740600C Sunction Canister for Disposal Liner System
14 S 600050DL Disposable Canister Liner - 50 Pack
1
4
6
5
2
9
11
12
7
5
13
14
10
8
5
3

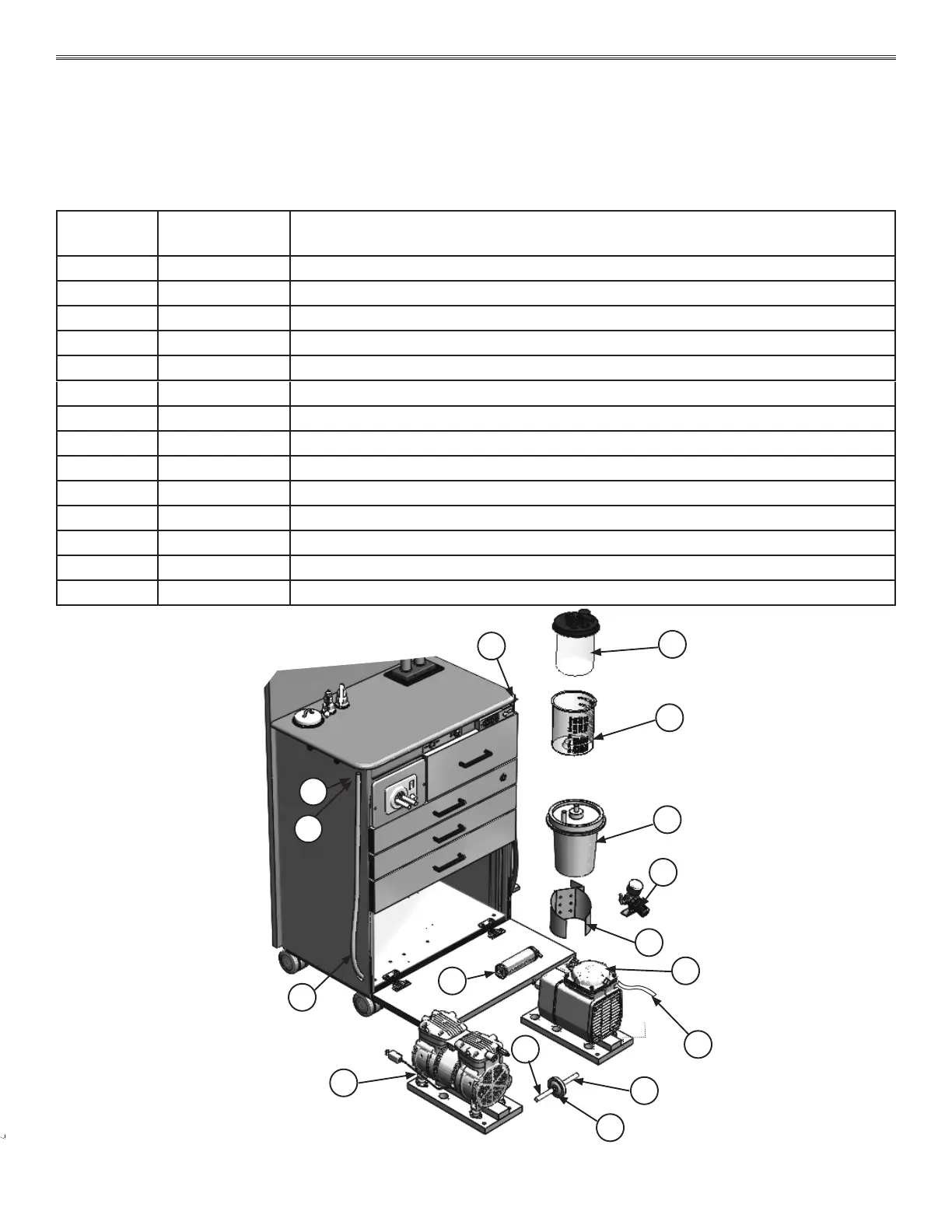

Figure 7-1. Pump Compartment Component Breakdown
