24
INSTALLATION & COMMISSIONING MANUAL - REVISION 1.0 - 19.FEB.2007

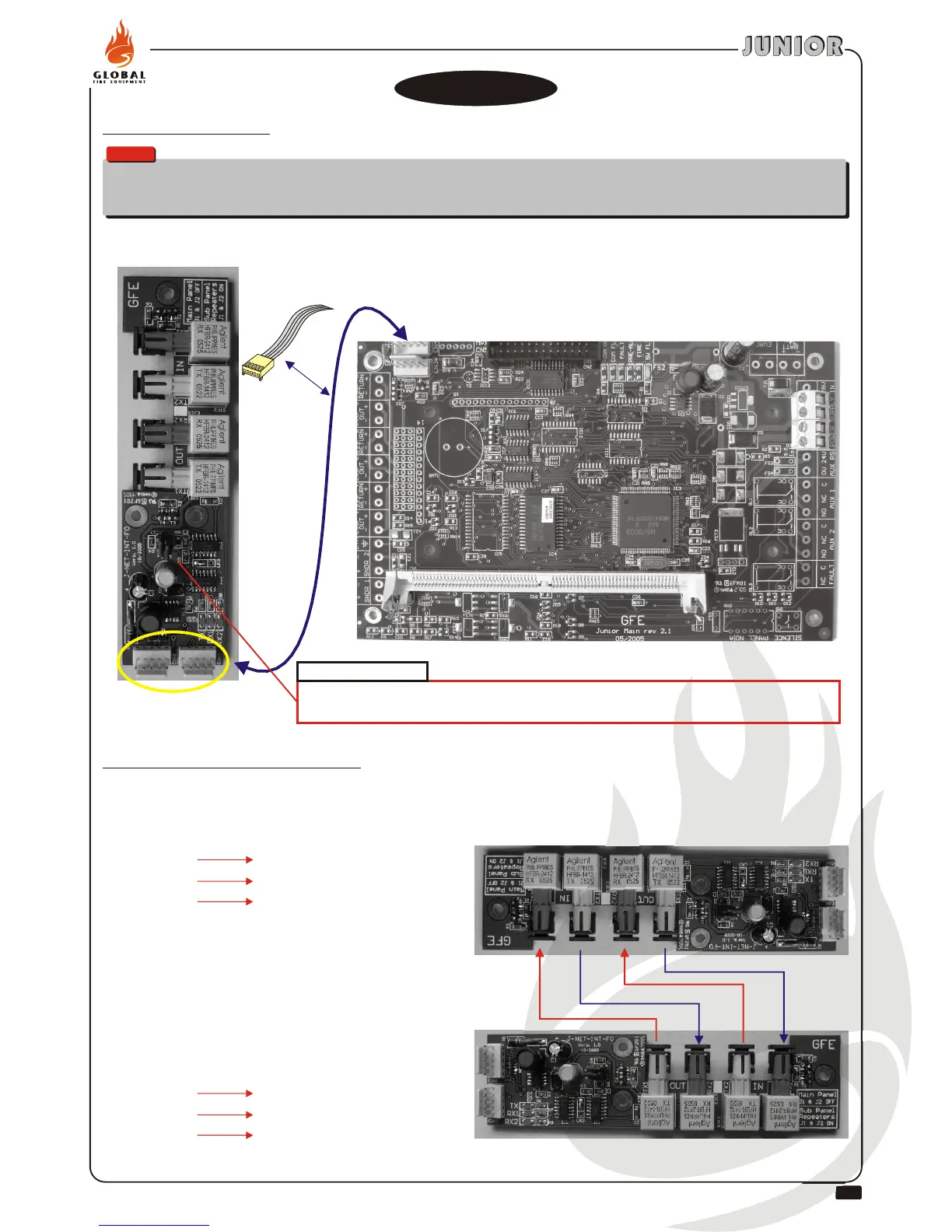

INSTALLATION
Repeater Fiber-Optic
MINI-REP MB
The interface inside the Junior panel must have the link jumpers OFF.
The interface inside the Mini-Repeater must have the link jumpers ON.
PANEL =
REPEATER =
OFF
ON
LK1 & LK2
LINKS
Fibre-Optic External Connection
Panel
Panel
Mini-Repeater
Mini-Repeater
The dual fibre external fibre-optic connections should be made as follows:
LOOP OUT
TX1
RX2
LOOP OUT
TX1
RX2
LOOP IN
RX1
TX2
LOOP IN
RX1
TX2
J-NET-INT-FO:
Then continue to connect OUT of one Repeater
to IN of the next Repeater following the same
connection rules as
shown.
When you reach
the last Repeater in the loop make the
connections as follows: .
The repeater connections to the Fibre-Optic Interface are basically the same as for the Panel.
Panel
Repeater
NOTE:
Make all connections with the power turned off to avoid risk of permanent damage to the
circuit boards.
