INSTALLATION & COMMISSIONING MANUAL - REVISION 1.0 - 19.FEB.2007
OVERVIEW
Internal maximum 24V / 7AH
Battery
The maximum alarm sounder current is 400mA for both conventional sounder circuits.
The maximum quiescent current per loop is 275mA. The loop short circuit (trip) current is 900mA.
Voltage
Primary supply voltage 85 - 264 V A.C.
EMC Standard EN55022 class B
EN61000-4-2,3,4,5,6,8,11
EN61000-3-2,3
Current 1.7A PSU’s recommended for 1 and 2 loop panels.

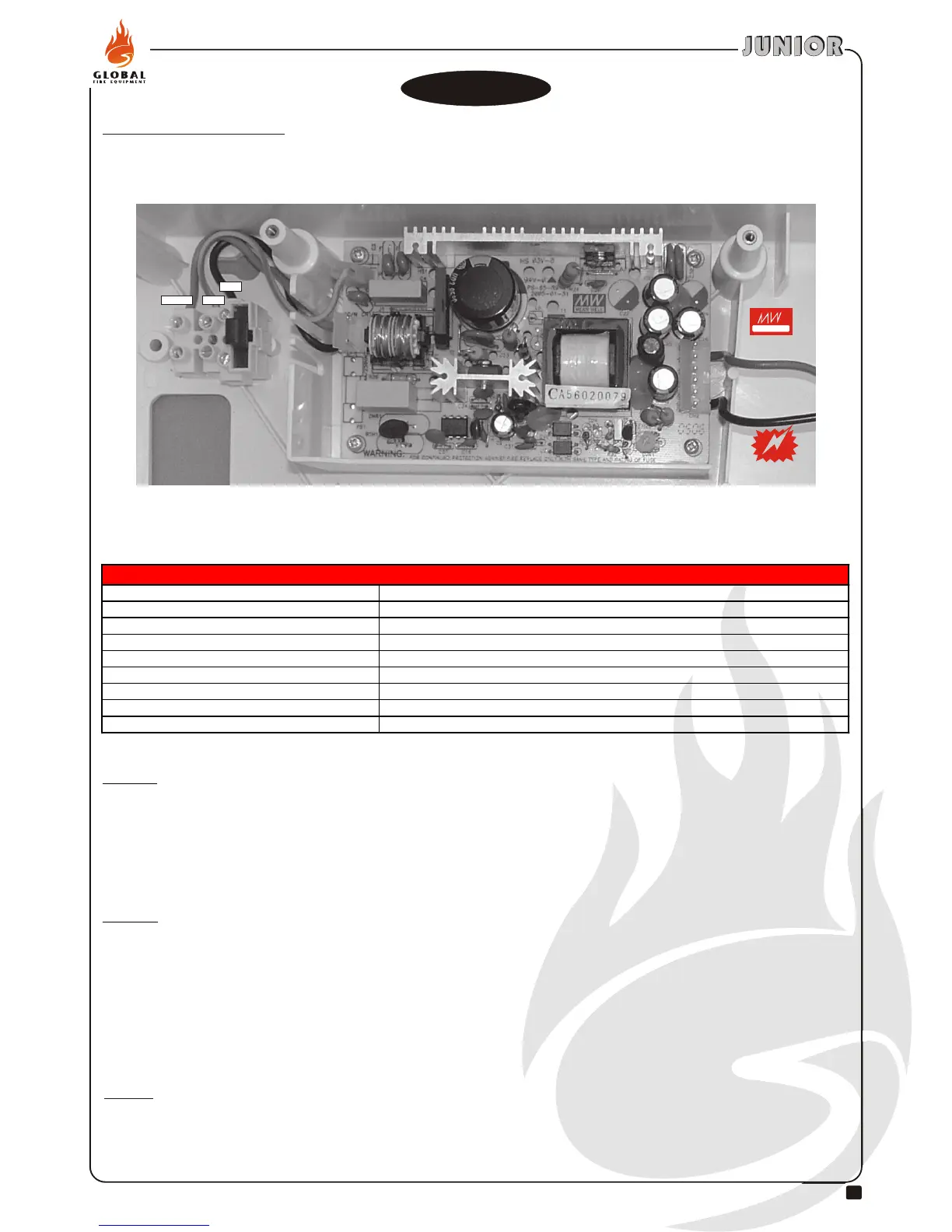

Power Requirements
Mains supply voltage 85-264V 50/60 Hz
Internal power supply Min. 20 V DC – Max. 30 V DC (28.5 V DC nominal) Max. Ripple 1 V peak-peak
Total output current 1,7A @230Vac
Supply and battery charger monitored YES
Batteries monitored YES
Max Battery size 2 x 12V 7AH VRLA
Mains Fuse 4 A – 250 V Slow Blow – 20 mm
Battery Fuse 1.6 Amp Resettable – Electronic Fuse
Max Current Draw from Battery (Mains Fail) 1.5 Amp Max.@ Max. Operating Temperature
