8-2
PURGE MODEUSER HANDBOOK

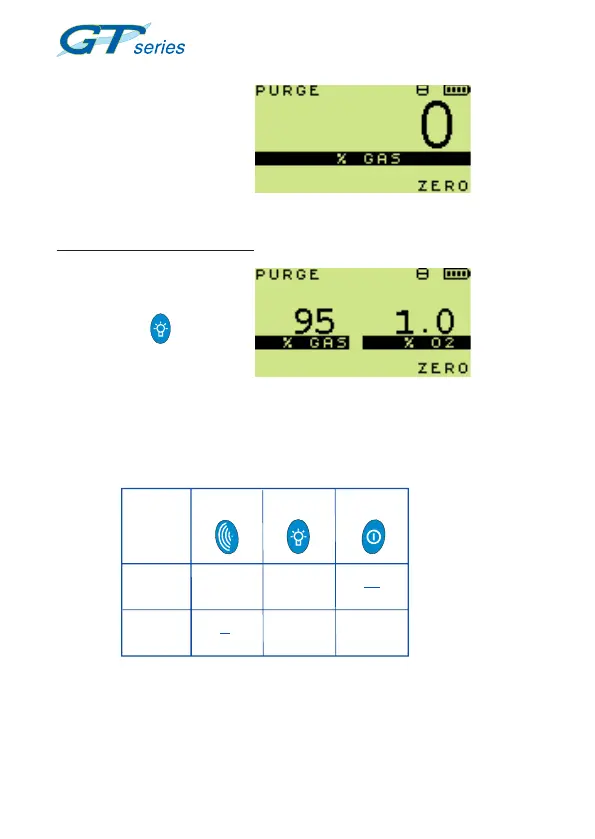

After the sensor check the
normal display will be shown,
as in Fig. 8.2:
To display both % Gas and % O
2
:
(as shown in Fig. 8.3)
• Press the Centre
button
8.4 PURGE BUTTON OPERATION
A summary of the button operation is detailed in Table 8.1:
LH
(INVERT)
RH
(PUMP)
CENTRE
(RANGE)
ACTION
PRESS
INVERT
DISPLAY
RANGE
ZERO
BACKLIGHT /
FLASHLIGHT
PUMP
ON / OFF
CLEAR FLOW
FAULT
PRESS
and
HOLD
Table. 8.1 Button Operation in Purge Mode
Fig. 8.2 Normal Display
Fig. 8.3 Gas and Oxygen
Display
