BARHOLE TESTING MODE
USER HANDBOOK
6.4 VIEW BARHOLE RESULTS
To view previous barhole results:
(to a maximum of six barhole tests)
• Press and hold VIEW
.
To return the display to normal operation:
• Press and hold LIVE .
If a *Flow Fault or **Bead Fault
is detected during a barhole
test, the pump will stop and
the test will be aborted with
indication as shown in Fig. 6.11
or Fig. 6.12 respectively.
* Refer to paragraph 6.6.3 for explanation of Flow Fault.
** Refer to paragraph 6.6.4 for explanation of Bead Fault.

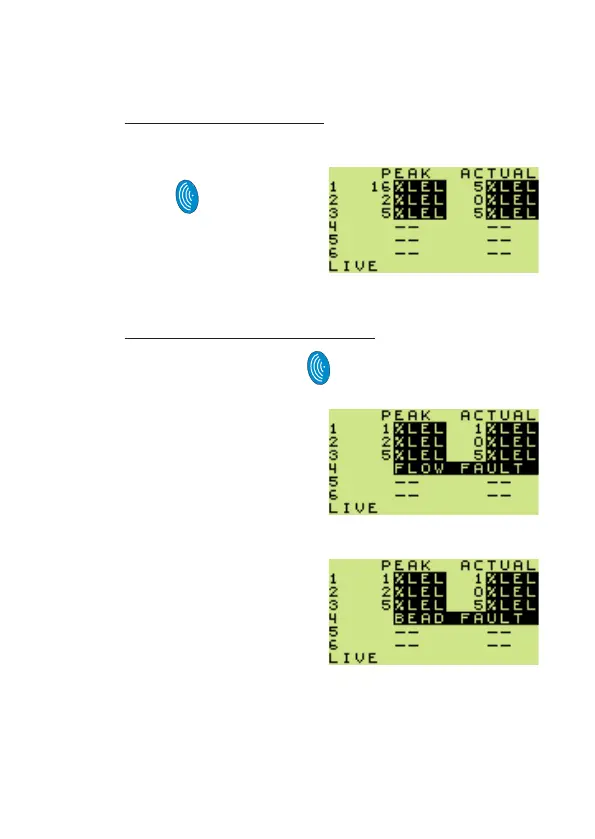

Fig. 6.10 View Barhole Results
Fig. 6.11 Flow Fault
Fig. 6.12 Bead Fault
