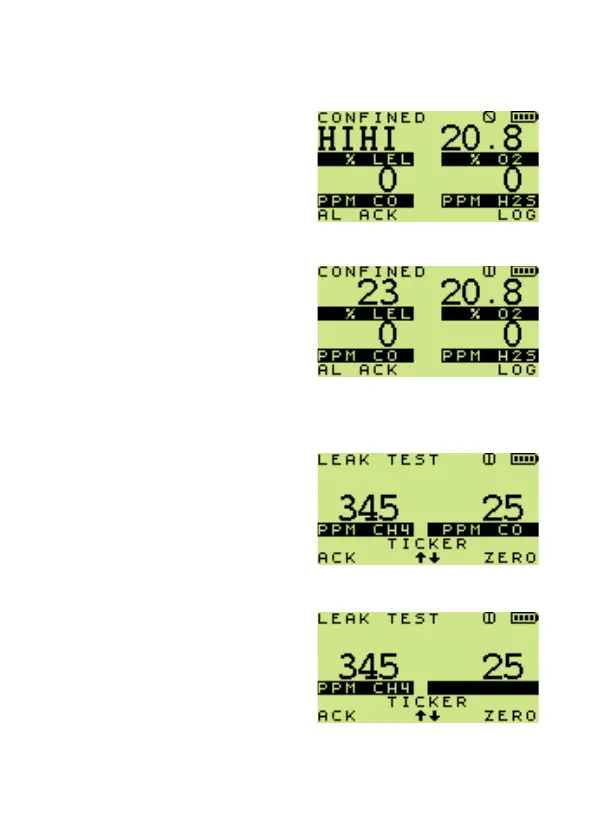

Example 2 (Fig. 12.2) shows
the instrument signalling a
‘HIHI’ LEL alarm. Again
the alarm warbles and all
eight (8) LED’s ramp. If more
than one gas alarm level is
exceeded, the gas value will
ash for each type in alarm.
Example 3 (Fig. 12.3) shows
an instrument in Leak
Test Mode with a Carbon
Monoxide warning alarm.
There is no audible alarm and
the LED’s do not ramp. The
gas range (ppm CO in this
example) will ash.
Example 2:
Example 3:
Toggles to
Fig. 12.2 HIHI LEL Alarm
Toggles to
Fig. 12.3 CO Warning Alarm
