Godex RT700i SERIES User Manual

8
2 Printer Setup
008
Load the Ribbon on the Printer
For Ribbon Supply Module
RIBBON SUPPLY MECHANISM
RIBBON SUPPLY SPINDLE FIXED SLOT
RIBBON SUPPLY WHEEL
Place
RIBBON SUPPLY
MODULE

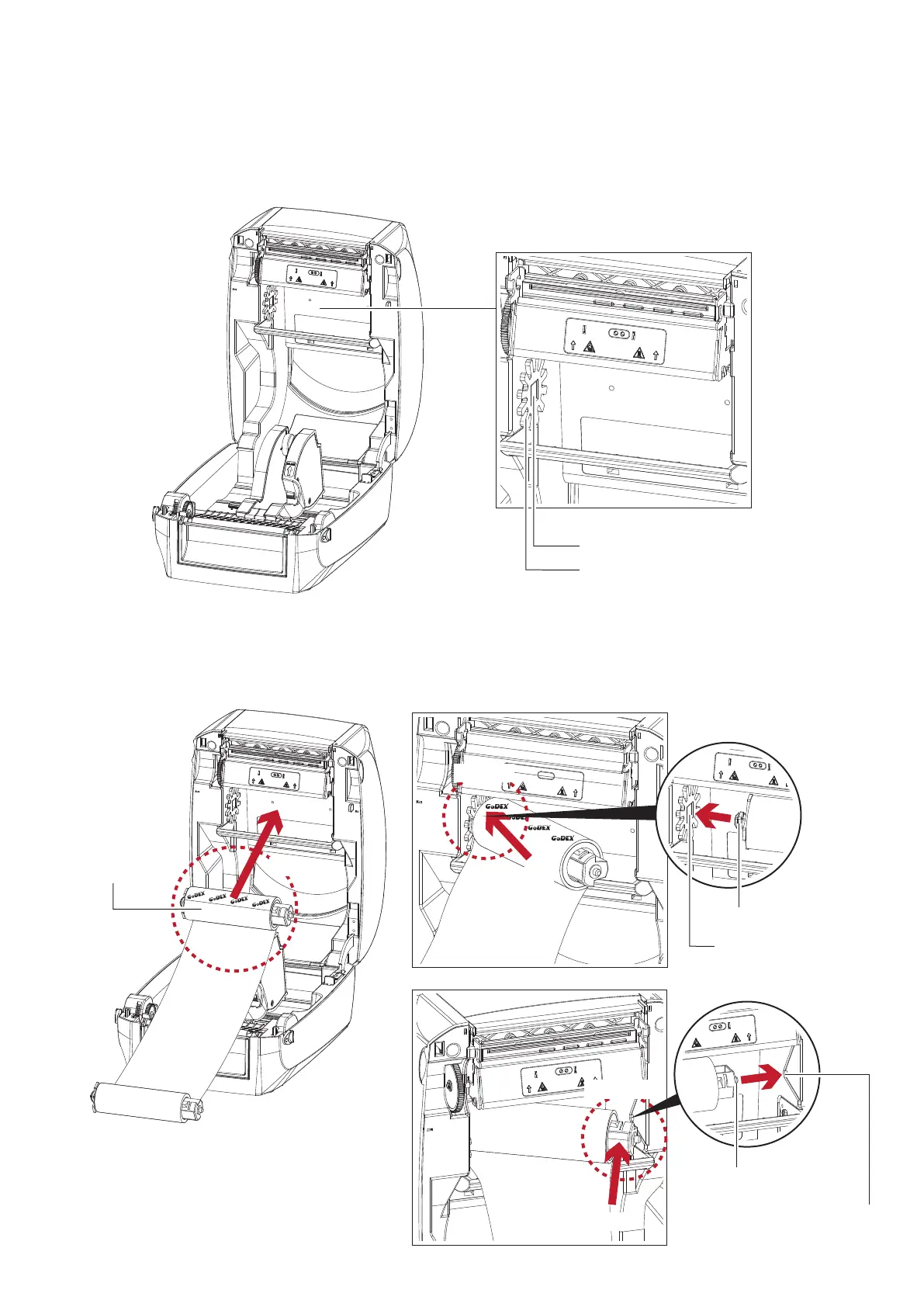

1. Place the ribbon module into the printing mechanism. Please the left-hand side of ribbon supply spindle
fixed slot first. Make sure the holder of square fixed shaft is inserted into the notch. Then place the
right-hand side of ribbon positioning round shaft. Can be fixed ribbon supply module.
放入
Left side
SQUARE FIXED SHAFT
RIBBON SUPPLY SPINDLE
FIXED SLOT
Place
Right side
POSITIONINGROUND SHAFT
Place
POSITIONING HOLES

Godex RT700i SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max Print Width	4.09" (104 mm)
Print Resolution	203 dpi
Print Speed	7 IPS (177.8 mm/s)
Max Print Length	1727 mm (68")
Memory	8 MB Flash, 16 MB SDRAM
Interface	USB 2.0, Serial RS-232, Ethernet
Processor	32-bit RISC CPU
Sensors	Gap transmissive sensor, Black mark reflective sensor
Power	AC 100-240V, 50/60Hz
Label Width	10 - 110 mm
Label Thickness	0.06 - 0.25 mm (2.36 - 9.84 mil)
Roll Outer Diameter	127 mm (5")
Core Diameter	25.4 mm (1")
Dimensions	285 mm (W) x 171 mm (H) x 226 mm (D)
Weight	5.5 lbs (2.5 Kg)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Operating Humidity	30% - 85% non-condensing
Certifications	CE, FCC, RoHS
