Godex RT700i SERIES User Manual

22
3 Setting and Control for Operation Panel
3.2 LCD Interface Introduction
022
Getting Started

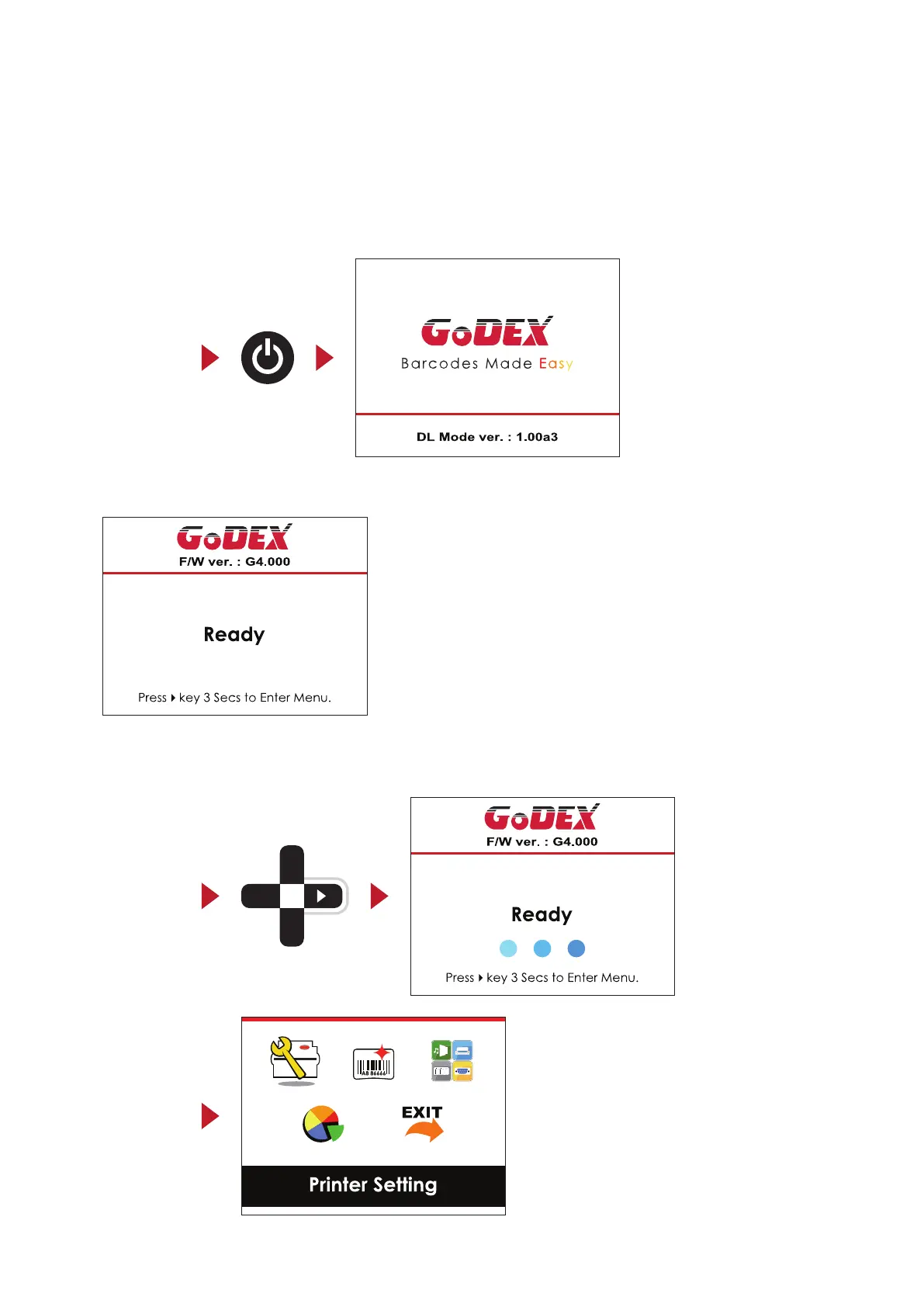

Press the POWER button to turn on the printer, and the START UP SCREEN appears.
If the printer is on “ready to print” status, the LCD screen should display the message “Ready“ on the screen.
Please keep pressing

button and wait for the timer to be filled, then the LCD interface will enter into the MAIN
PAGE for SETTING MODE. You can make various setting functions in SETTING MODE.
Power on
Enter Main page

Godex RT700i SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max Print Width	4.09" (104 mm)
Print Resolution	203 dpi
Print Speed	7 IPS (177.8 mm/s)
Max Print Length	1727 mm (68")
Memory	8 MB Flash, 16 MB SDRAM
Interface	USB 2.0, Serial RS-232, Ethernet
Processor	32-bit RISC CPU
Sensors	Gap transmissive sensor, Black mark reflective sensor
Power	AC 100-240V, 50/60Hz
Label Width	10 - 110 mm
Label Thickness	0.06 - 0.25 mm (2.36 - 9.84 mil)
Roll Outer Diameter	127 mm (5")
Core Diameter	25.4 mm (1")
Dimensions	285 mm (W) x 171 mm (H) x 226 mm (D)
Weight	5.5 lbs (2.5 Kg)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Operating Humidity	30% - 85% non-condensing
Certifications	CE, FCC, RoHS
