16
2 Printer Setup
2.5 Installing Printer Driver and GoLabel with Super Wizard CD
016

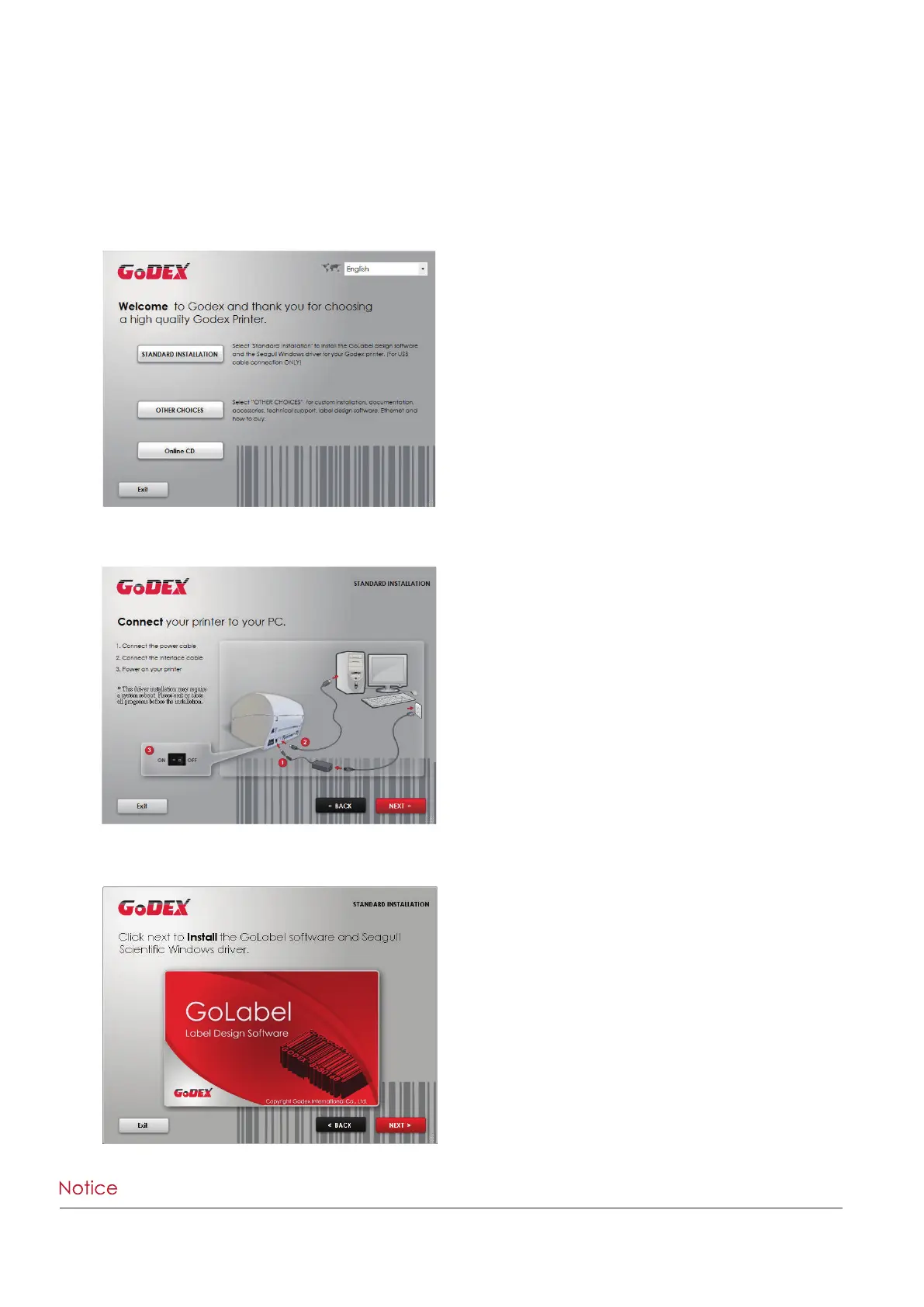

1. Insert the Super Wizard CD in the CD/DVD drive of the host computer and the program should pop up
automatically. You will see the Welcome screen first. On the Welcome screen, choose “Standard Installation”.
2. The wizard will then ask you to make sure your USB and power cables are connected and that the power is
turned on. Make sure that is done and then click “Next”.
3. The next screen you will see is, “Install the GoLabel Software and Windows driver”. Click “Next” to continue.
****If the Super Wizard program did not run automatically, you can either turn on the “Auto-run” setting for your
CD/DVD driver or double-click the icon of CD/DVD driver to run the program.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Godex RT700i SERIES and is the answer not in the manual?

Godex RT700i SERIES Specifications

General IconGeneral
Print MethodThermal Transfer / Direct Thermal
Max Print Width4.09" (104 mm)
Print Resolution203 dpi
Print Speed7 IPS (177.8 mm/s)
Max Print Length1727 mm (68")
Memory8 MB Flash, 16 MB SDRAM
InterfaceUSB 2.0, Serial RS-232, Ethernet
Processor32-bit RISC CPU
SensorsGap transmissive sensor, Black mark reflective sensor
PowerAC 100-240V, 50/60Hz
Label Width10 - 110 mm
Label Thickness0.06 - 0.25 mm (2.36 - 9.84 mil)
Roll Outer Diameter127 mm (5")
Core Diameter25.4 mm (1")
Dimensions285 mm (W) x 171 mm (H) x 226 mm (D)
Weight5.5 lbs (2.5 Kg)
Operating Temperature41°F to 104°F (5°C to 40°C)
Storage Temperature-4°F to 122°F (-20°C to 50°C)
Operating Humidity30% - 85% non-condensing
CertificationsCE, FCC, RoHS
