Godex RT700i SERIES User Manual

23
3 Setting and Control for Operation Panel
023

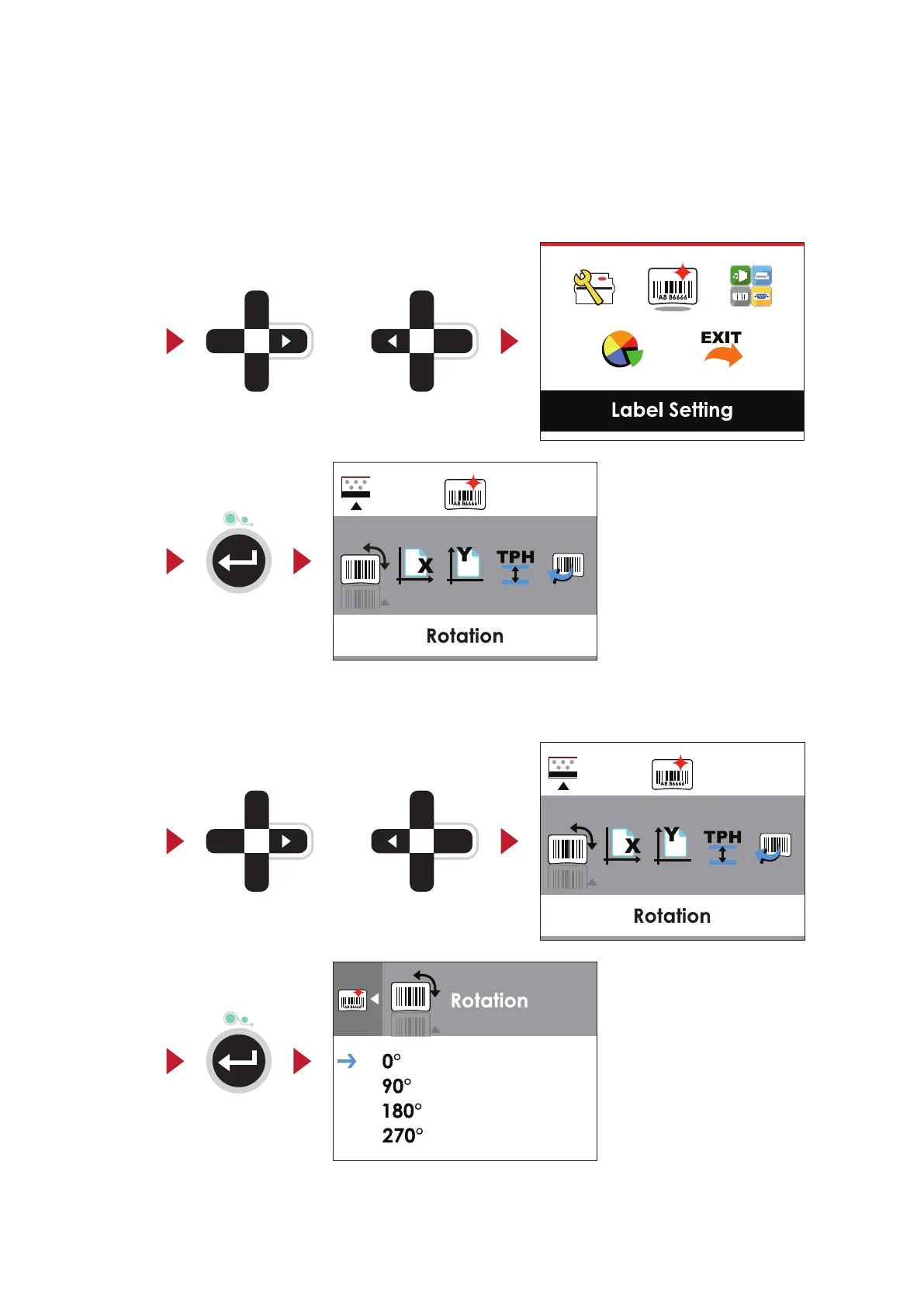

Operations on Setting Page
On MAIN PAGE, press

or

button to move the cursor and select the functions.
Select a designated function and press FEED button, you will enter the SETTING PAGES for the function.
or
Select
Enter
On SETTING PAGES, press

or

button to select the setting items.
Select a designated function and press FEED button, you will enter the SETTING VALUE PAGES for the function.
orSelect
Enter

Godex RT700i SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max Print Width	4.09" (104 mm)
Print Resolution	203 dpi
Print Speed	7 IPS (177.8 mm/s)
Max Print Length	1727 mm (68")
Memory	8 MB Flash, 16 MB SDRAM
Interface	USB 2.0, Serial RS-232, Ethernet
Processor	32-bit RISC CPU
Sensors	Gap transmissive sensor, Black mark reflective sensor
Power	AC 100-240V, 50/60Hz
Label Width	10 - 110 mm
Label Thickness	0.06 - 0.25 mm (2.36 - 9.84 mil)
Roll Outer Diameter	127 mm (5")
Core Diameter	25.4 mm (1")
Dimensions	285 mm (W) x 171 mm (H) x 226 mm (D)
Weight	5.5 lbs (2.5 Kg)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Operating Humidity	30% - 85% non-condensing
Certifications	CE, FCC, RoHS
