Godex RT700i SERIES User Manual

42
4 NetSetting for Ethernet
4.2 The Interface of NetSetting

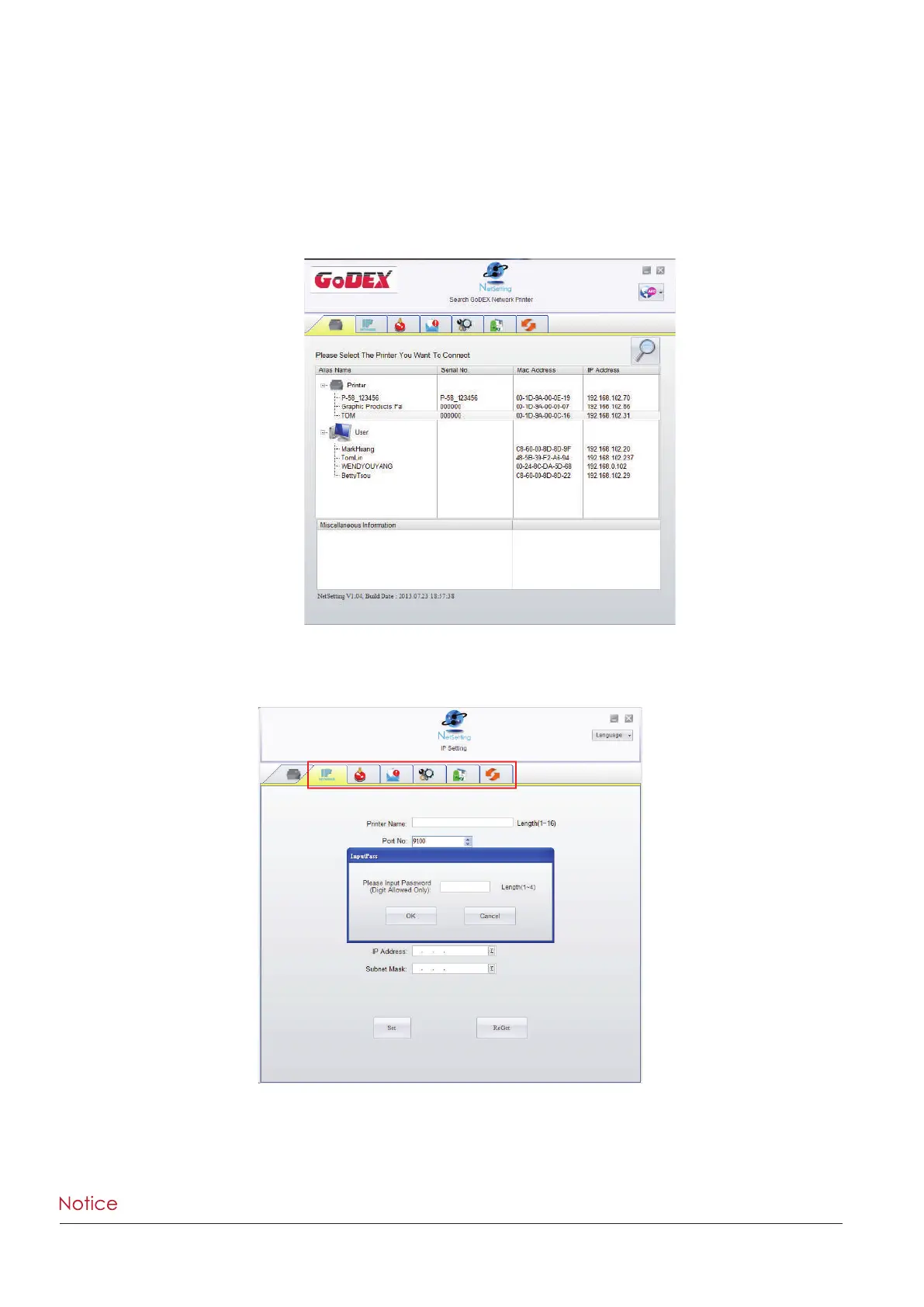

Click the NetSetting icon to start the program; you will see the start page as below. The start page will display the
basic information of connected printer and your PC.
There are six tabs on the top of interface which can configure different types of network settings. But for the data
security reason, you need correct password to enter the configuration pages.
Click the magnifier icon to search the Godex printers which are connected via Ethernet port in you network
environment. Once a connected Godex printer is detected, it will be listed on the start page.
**** The default password is “1111”, you can change the password later from the “IP Setting” tab.
ZX1200

Godex RT700i SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max Print Width	4.09" (104 mm)
Print Resolution	203 dpi
Print Speed	7 IPS (177.8 mm/s)
Max Print Length	1727 mm (68")
Memory	8 MB Flash, 16 MB SDRAM
Interface	USB 2.0, Serial RS-232, Ethernet
Processor	32-bit RISC CPU
Sensors	Gap transmissive sensor, Black mark reflective sensor
Power	AC 100-240V, 50/60Hz
Label Width	10 - 110 mm
Label Thickness	0.06 - 0.25 mm (2.36 - 9.84 mil)
Roll Outer Diameter	127 mm (5")
Core Diameter	25.4 mm (1")
Dimensions	285 mm (W) x 171 mm (H) x 226 mm (D)
Weight	5.5 lbs (2.5 Kg)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Operating Humidity	30% - 85% non-condensing
Certifications	CE, FCC, RoHS
