Godex RT700i SERIES User Manual

48
4 NetSetting for Ethernet
In addition to the firmware update, you can press “Recover To Factory Settings” button to restore the printer
configurations back to factory default.

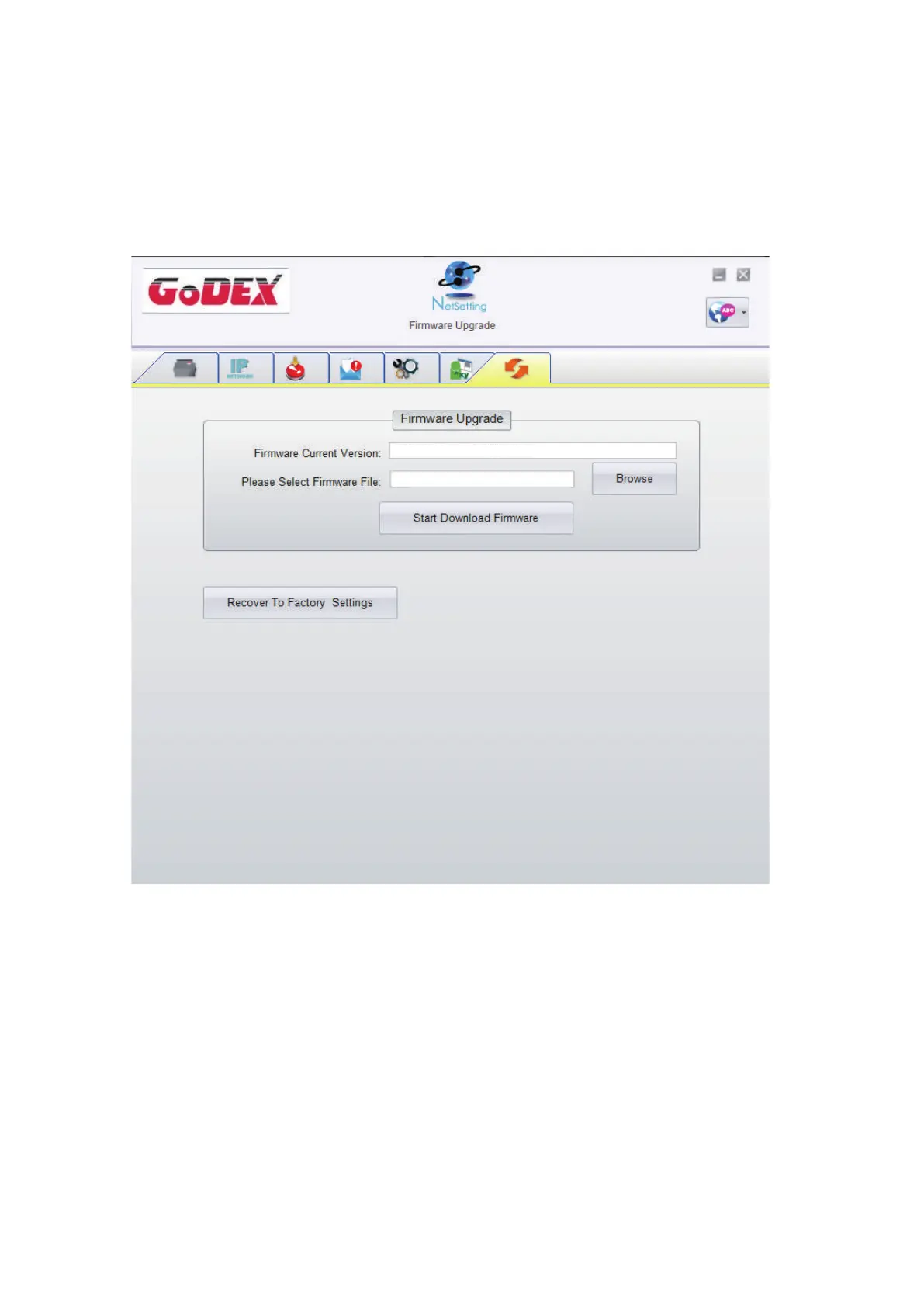

Firmware Download
On “Firmware Download” tab, the current version of printer firmware will be showed on the screen. If you need to
update the printer firmware, just specify the file location of firmware file and press “Start Download Firmware” button.
The printer firmware then can be updated remotely.
BOOT : 1.000a1 F/W : RT700i 1.000a

Godex RT700i SERIES Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max Print Width	4.09" (104 mm)
Print Resolution	203 dpi
Print Speed	7 IPS (177.8 mm/s)
Max Print Length	1727 mm (68")
Memory	8 MB Flash, 16 MB SDRAM
Interface	USB 2.0, Serial RS-232, Ethernet
Processor	32-bit RISC CPU
Sensors	Gap transmissive sensor, Black mark reflective sensor
Power	AC 100-240V, 50/60Hz
Label Width	10 - 110 mm
Label Thickness	0.06 - 0.25 mm (2.36 - 9.84 mil)
Roll Outer Diameter	127 mm (5")
Core Diameter	25.4 mm (1")
Dimensions	285 mm (W) x 171 mm (H) x 226 mm (D)
Weight	5.5 lbs (2.5 Kg)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
Operating Humidity	30% - 85% non-condensing
Certifications	CE, FCC, RoHS
