Book No.: 95-0014-0000/A OPERATOR
Issue: 06 HANDBOOK
Page 11 of 30
11. Release the nuts (65) holding the hydraulic
motor (76) to the bearing cover (11) and
remove the motor.
12. HS100 only. Undo the screws (60) and
remove the bearing cover (11) from the
bearing bracket.
HS150 only. Remove bearing cover (11) from
bearing bracket.
13. Press the shaft assembly out of the bearing
bracket from the pump end.
14. Remove the internal plugs (84) from the pump
end of the bearing bracket and using a pair of
rods, press the roller bearing outer race out.
15. Flatten the tags on the locking washer (50),
prevent the shaft from rotating, and unscrew
the bearing locknut (49).
16. Pull the ball bearing (48) off the shaft and remove
the bearing outer and inner (12) spacers.
17. Pull the roller bearing inner race (47) off the
shaft.
Dismantling is now complete. Inspect all parts for
damage or wear.

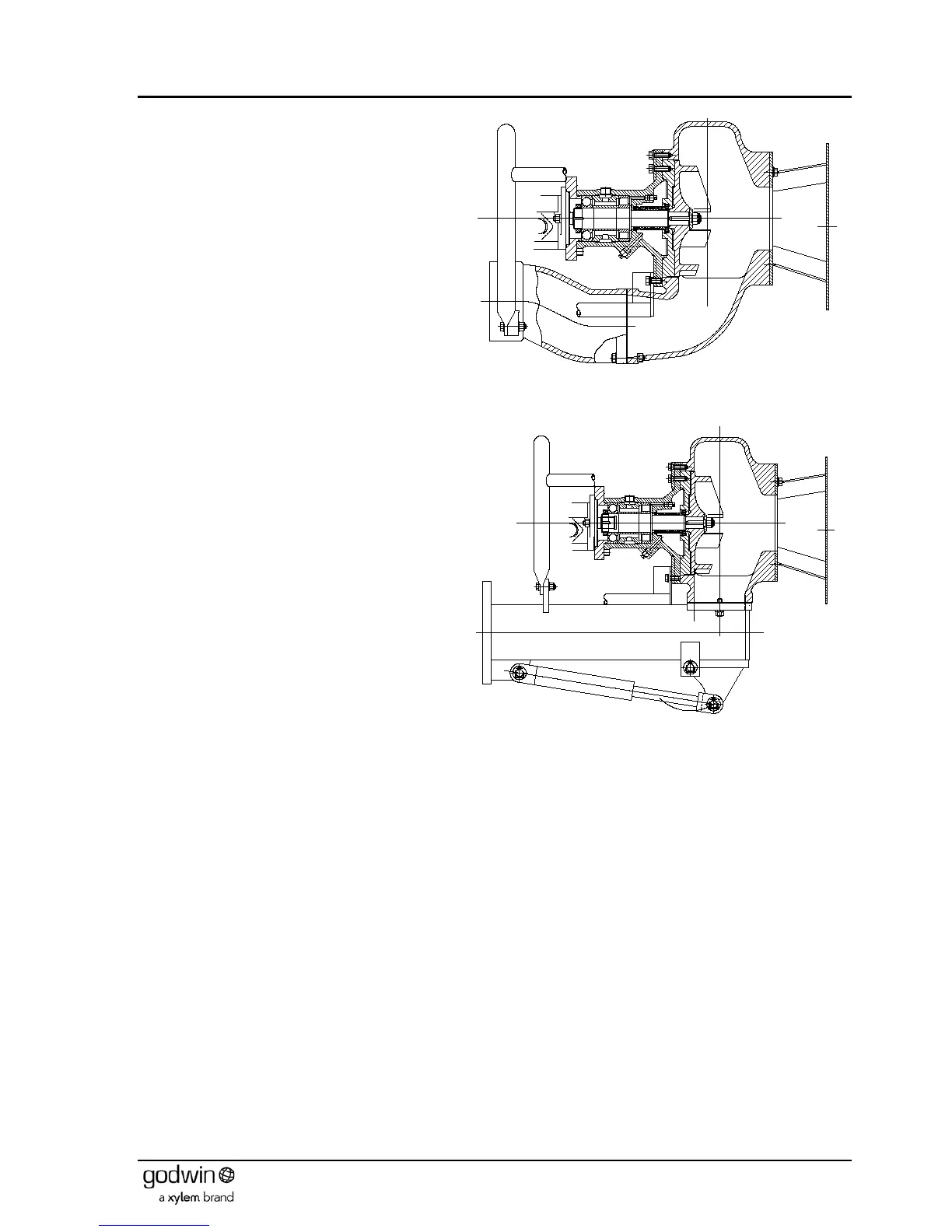

Figure 8 Typical HS150V pump
