SmartBox

1 / SmartBox

2 / SmartBox

part no. 28 100 57 f 7 / 20

Excess voltage!

Damage to components and device defect.

No 230 V AC connections may be made to terminals 3 + 4 or probe input terminals 1 + 2!

START-UP

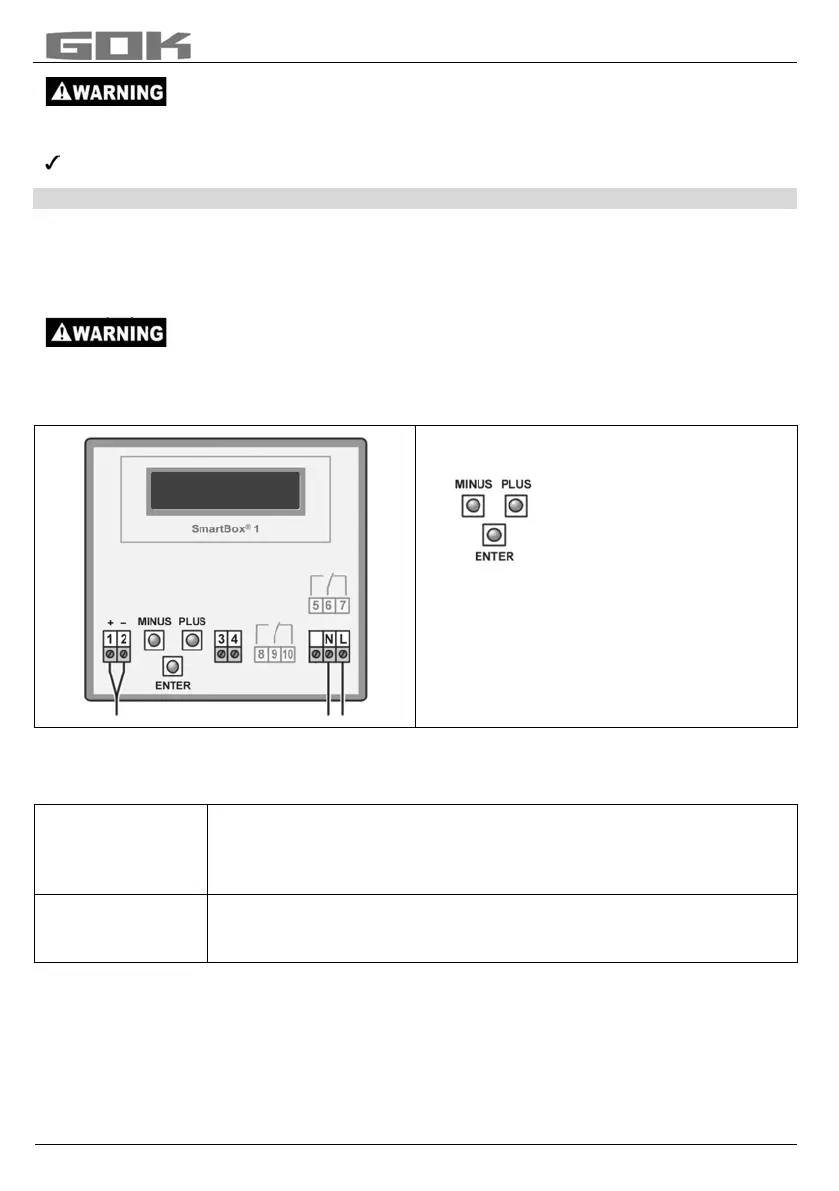

Operation elements and display

The device is adjusted once when it is put into operation. After start-up the device operates in

display mode with the top closed.

The display is a two-line LCD display with 2 x 16 characters.

The display has blue background lighting for best readability in all lighting conditions.

Activating power supply:

Keep away from the area of the 230 V terminal!

SmartBox

1, 2 and 3 has the following display:

The device is adjusted via the three small

blue buttons:

These are located on the

motherboard between the

terminals.

Select the language (German, English or

French) in menu step 18.Language.

After the level indicator has been installed, it can be started up. Before PROGRAMMING, you

need to ascertain the tank data and enter the values into the right column input value of the

following table. Then, enter the values for the individual entry steps.

Setting a

parameter:

Press [ENTER] to open setup mode.

Select the desired setting parameter via [PLUS].

Press [ENTER] to call up the value selection for the parameter.

Set the value with [MINUS]/[PLUS], press [ENTER] to save.

Quitting the

setup mode:

You can quit the setup mode at any time.

Select “Exit“ and press [ENTER]

 to go back to the standard display mode.

Heat oil 37.400L

-10.100L 75%
