Article No. 28 100-

Version 12.2007

Page 1 of 12

SmartBox 1 / SmartBox 2 / SmartBox 3

Electronic Content Indicator - Optionally with additional functions

CONTENT Page:

GENERAL 1

DESIGN 1

OPERATING MEDIA 1

IDENTIFICATION 2

INSTALLATION 2

START-UP 5

EXAMPLES FOR PROGRAMMING 6

OPERATION 10

PERFORMANCE CHECK 10

MAINTENANCE 10

REPAIR 10

ADDITIONAL TECHNICAL DATA 11

LIST OF ACCESSORIES 11

GENERAL

The electronic tank management system SmartBox 1, SmartBox 2 and SmartBox 3 can be used

for monitoring of the liquids contained in unpressurized liquids tanks.

In addition to the registration of tank content, other functions can be implemented by system

enhancements, e.g. temperature measurement, data telecommunication, or connection to master

control systems of the building.

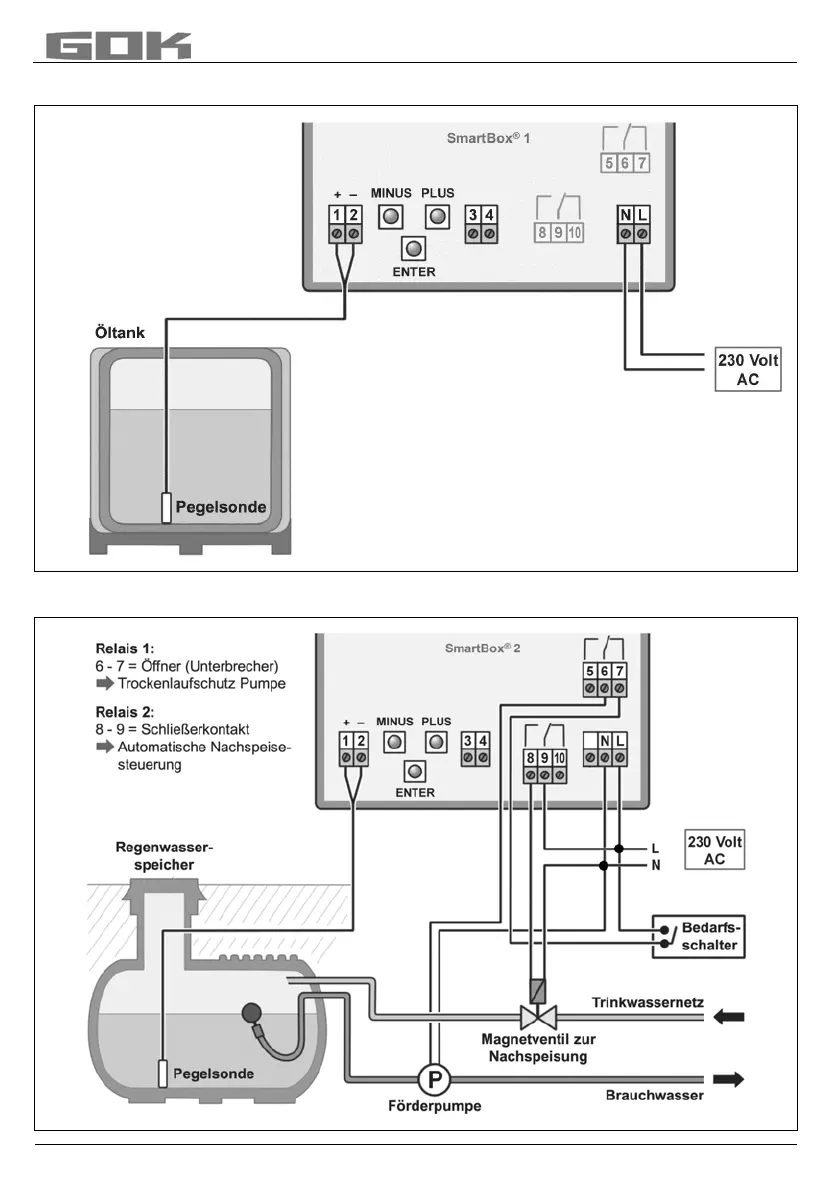

The SmartBox 2 has additional relay control functions, e.g. for activating external alarm devices,

solenoid valves, or the dry-run protection function of pumps.

The SmartBox 3 has relay control functions and an audible alarm for minimum level Indication.

When the acoustic alarm sounds, it can be switched off by pressing the ‘Quit’ key.

Thanks to its modular design, the system can be equipped with additional modules, e.g. with an

analog interface or a GSM module for telecommunication.

The indicated measurements are not gaged for invoicing.

The measuring probe is not a safety device, not even in connection with an electronic indicator.

Accordingly, it will not replace a limit monitoring indicator at the tank.

To operate the device as intended and to observe the warranty conditions, it is imperative that

you adhere to this Installation and Operating Manual and hand it over to the user.

DESIGN

The SmartBox 1 has an 8-digit LCD display and a measuring input for connecting the probe. The

SmartBox 2 has additionally 2 programmable relays with make and break switching output. The

SmartBox 3 has a programmable relay with make and break switching output and an acoustic

alarm for minimum level Indication. As a standard, the measuring probe can be installed with tank

connecting thread G1, G1½ or G2.

OPERATING MEDIA

Fuel oil EL acc. to DIN 51603-1

petroleum

fire point > 55°C

Diesel fuel DK

acc. to DIN EN 590

alcohol

fire point > 55°C

FAME (Biodiesel)

acc. to DIN EN 14214

glycerin

Hydraulic oil glycol

Motor oil brake fluid

Vegetable oil water

Urea solution

e.g. AdBlue acc. to

DIN 70700

Otto fuel

with fire point < 55°C

only with SmartBox

in EX version
