07 Equipment Commissioning
User Manual V1.1-2022-07-20
1
3
No. Check Item
1
The inverter is rmly installed in a clean place where is well-ventilated and easy to
operate.
2
The PE cable, DC input cable, AC output cable, and communication cable are connected
correctly and securely.
3 Cable ties are routed properly and evenly, and no burrs.
4 Unused ports and terminals are sealed.
5 The voltage and frequency at the connection point meet the on-grid requirements.

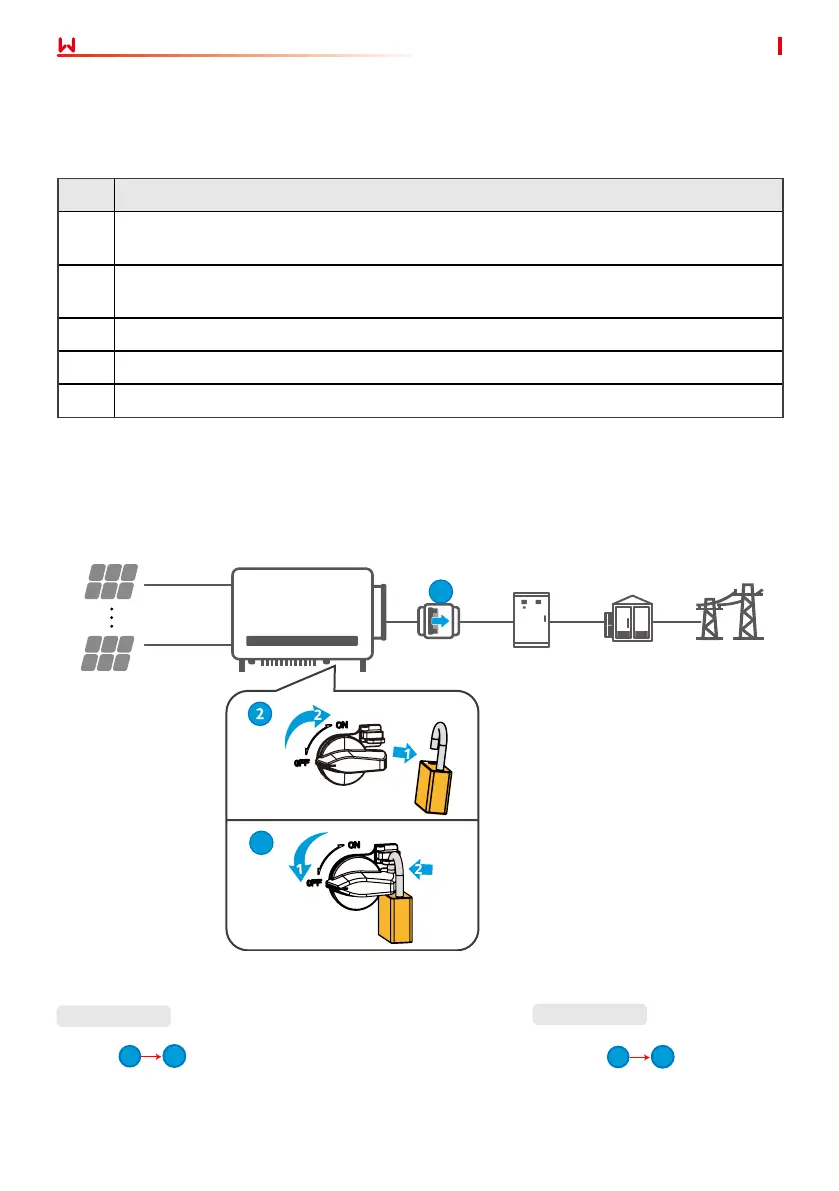

7 Equipment Commissioning
7.1 Check Items Before Switching Power ON
7.2 Power On
Step 1 Turn on the AC switch between the inverter and the utility grid.
Step 2 Turn on the DC switch of the inverter.
Transformer
Power
distribution
cabinet
PV
Grid
Power ON
Power OFF
Turn on
1
2
Turn o
1
3
Inverter
The DC switch locking hole is for Australia only.
AC Breaker

Goodwe HT Series Specifications

General

Max DC Input Voltage	1100V
MPPT Voltage Range	200-1000V
Max AC Output Power	3.6kW to 10kW
Number of MPPTs	1 or 2
Max PV Input Voltage	1100V
MPPT Range	200-1000V
AC Output Frequency	50/60Hz
Communication	RS485, Ethernet
Operating Temperature Range	-25°C to 60°C
Protection Level	IP65
