Goodwe SMT Series User Manual

06 Electrical Connection
User Manual V1.3-2023-01-31
20

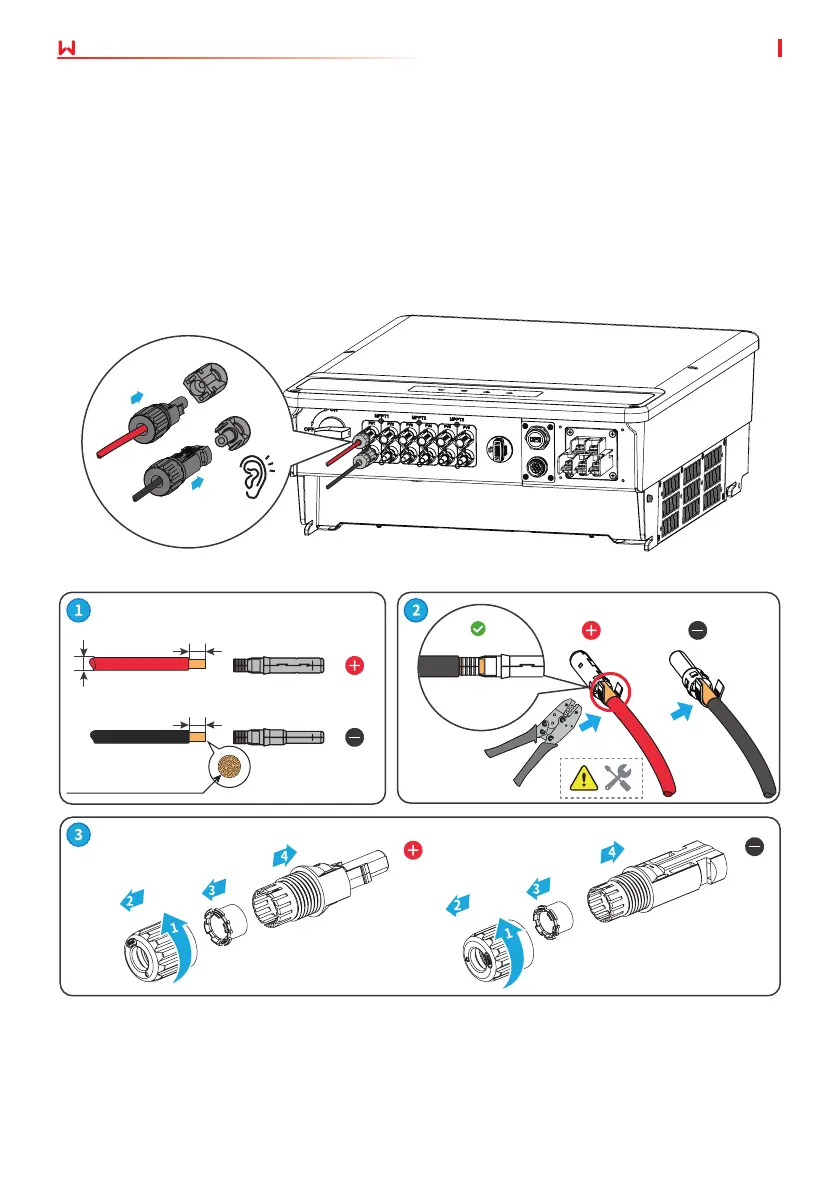

MC4 PV Connectors (1000V)
Step 1 Prepare DC cables.
Step 2 Crimp the crimp contacts.
Step 3 Disassemble the PV connectors.
Step 4 Make the DC cable and detect the DC input voltage.
Step 5 Plug the PV connectors into the PV terminals.
Connecting the DC Input Cable
Click
7~8mm
7~8mm
Φ: 4~5mm
4mm² ≤ S ≤ 6mm²
