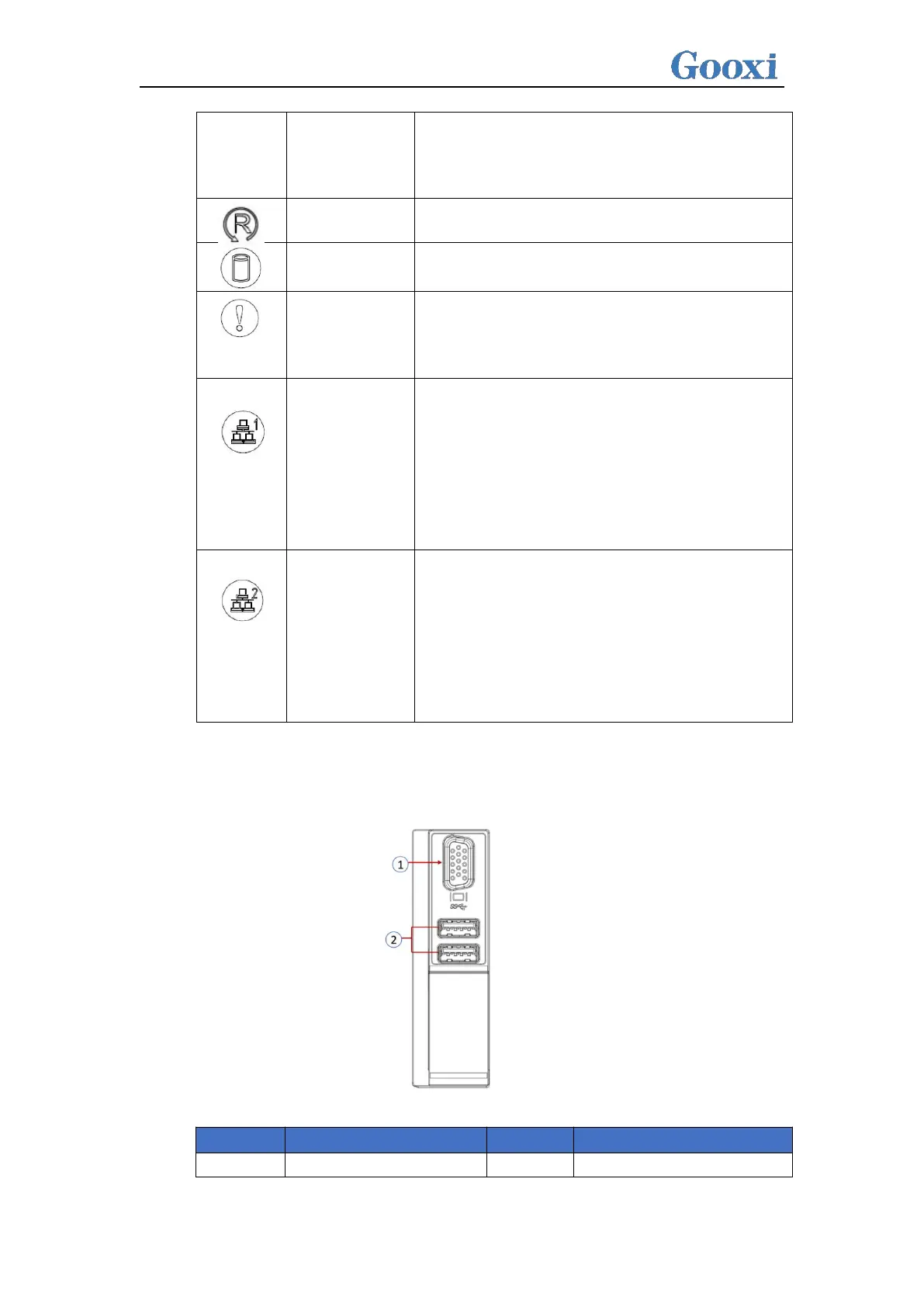

is located.
Off: Indicates that the server is not located.
UID button description: Short press this
button to turn on/off the positioning light.
Reset restart
server button
Press to restart the server
Green flashing: The hard disk is operating
normally
System warning LED. Including system
alarms, fan alarms, power supply alarms,
etc., which can be viewed through the IPMI
management software
Network port
connection
status LED
Corresponds to the Ethernet port LED of the
network card.
Green on: Indicates that the network port is
connected normally.
Off: Indicates that the network port is not in
use or faulty.
Note: Corresponds to two 1GE network ports
on the motherboard.
Network port
connection
status LED
Corresponds to the Ethernet port LED of the
network card.
Green on: Indicates that the network port is
connected normally.
Off: Indicates that the network port is not in
use or faulty.
Note: Corresponds to two 1GE network ports
on the motherboard.
Table (2-4)
2.1. 3 Interface
Interface location
Figure (2-5)
