Gooxi SR201 2U User Manual

23

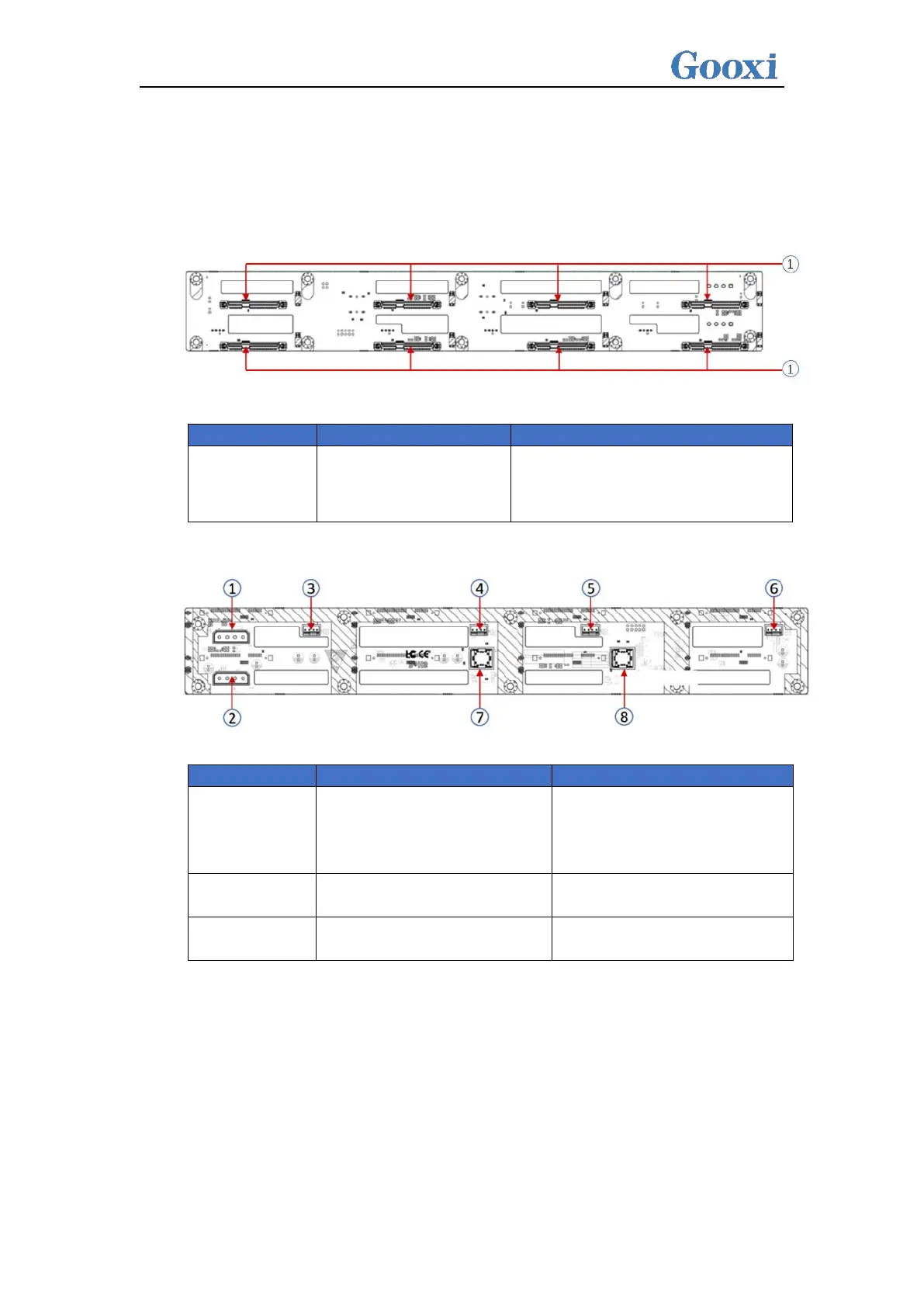

2.9. 2 Hard disk backplane

Front 8 × 3.5 inch hard disk backplane
TOP surface
Figure (2-24)
S/N
Description
Function
1, 2
SAS/SATA hard disk
connector
1. Support 12Gb/s SAS hard disk;
2. Support 6Gb/s SATA hard disk;
3. Support SAS/SATA hard disk hot
swap.
Table (2-14)
Bottom side
Figure (2-25)
S/N
Description
Function
1, 2
ATX power input
Backplane power
transmission connector,
used for 12V power
transmission
3, 4, 5, 6
Temperature-controlled fan
socket
For 4pin fan interface
7, 8
MiniSAS HD high-speed
connector
For 12Gb/s SAS or 6Gb/s SATA
signal transmission
Table (2-15)
