Gooxi SR201 2U User Manual

37

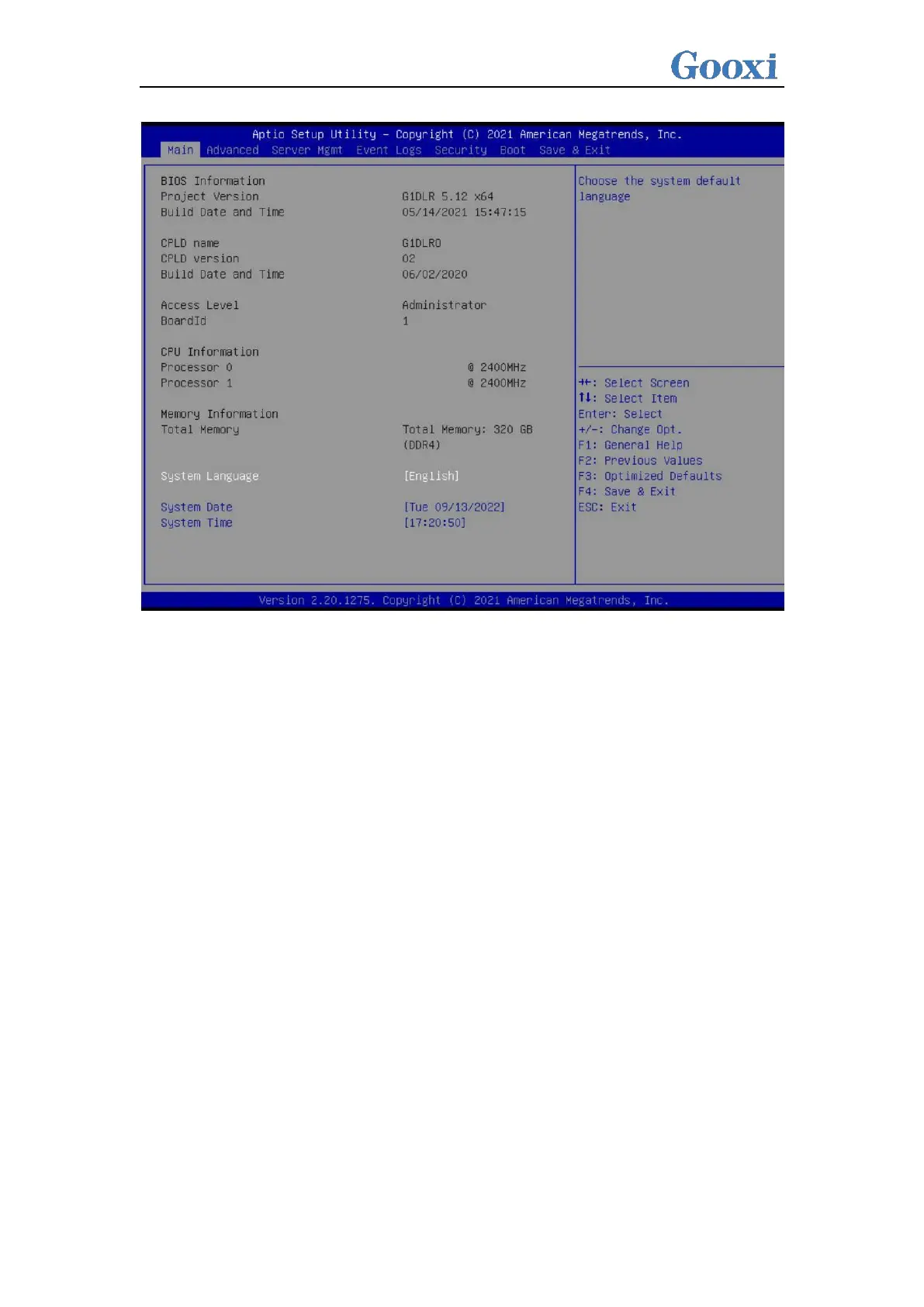

Figure 4-3
The Main interface contains the basic information of the BIOS system,
such as the BIOS version number, CPU model, memory capacity, and the
system time can be set. For detailed instructions, please refer to the "BIOS
User Manual".
 Navigation key description:
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
4.1. 4 Configure BMC
When the server is powered on, make sure that the BMC dedicated management
network port cable is properly connected. Use another device, make sure to enter the IP
address in the same LAN as the BMC management network , and the login interface is as
shown in the figure:

Gooxi SR201 2U Specifications

General

Brand	Gooxi
Model	SR201 2U
Category	Server
Language	English
