2.9 PCBA
2.9. 1 Motherboard

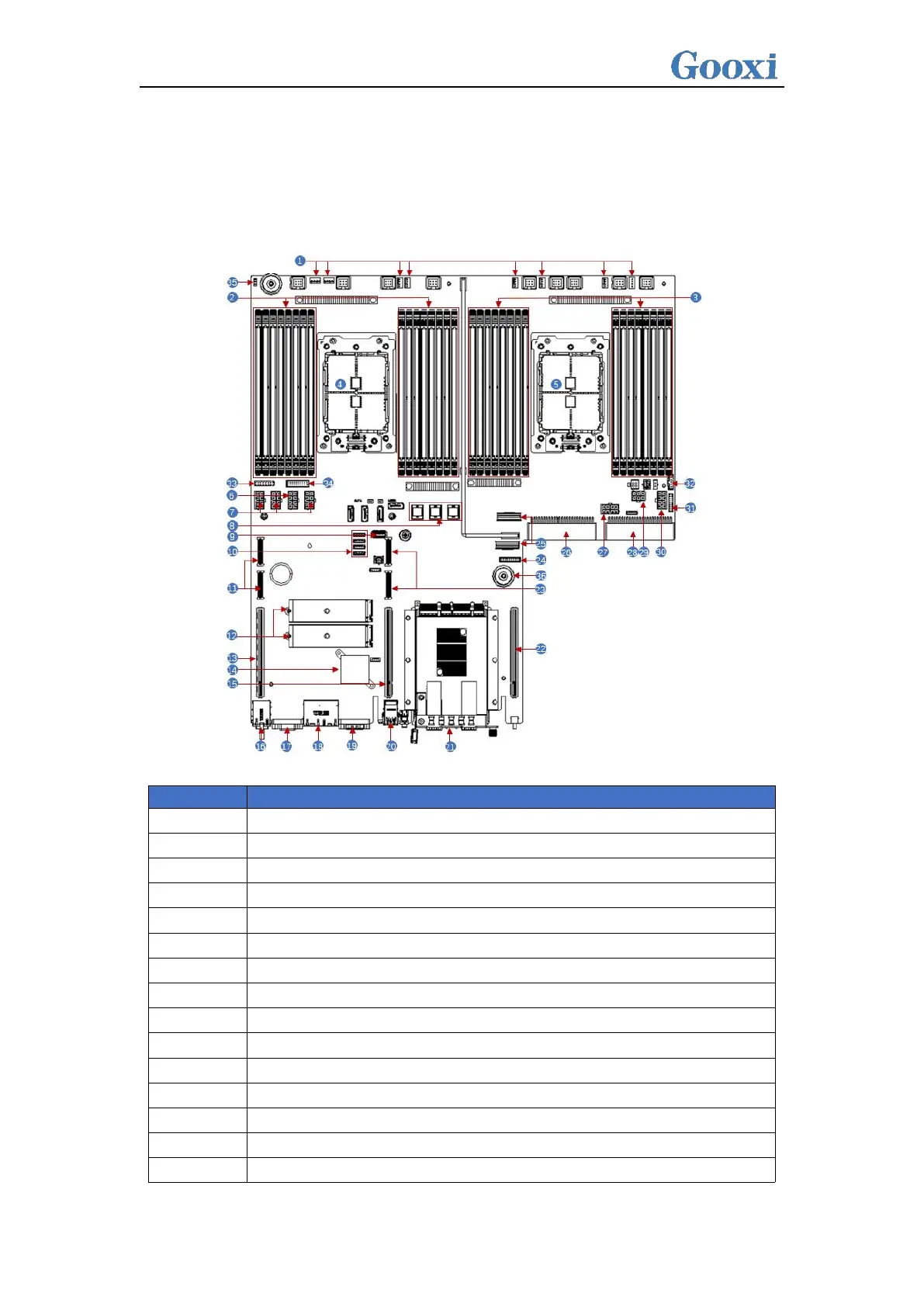

G1DLRO-B motherboard diagram (2-23)
S/N
Name
1
4U chassis fan control 4 pin interface
2
Memory slot (corresponding to CPU 0)
3
Memory slot (corresponding to CPU1)
4
CPU0
5
CPU1
6
GPU Power 2*4 pin interfaces
7
BP Power 2*4pin interfaces
8
SFF8643 SATA interface
9
USB3.0 interface
10
BP I2C interface
11
PCIe X8
12
M.2
13
PCIe X16
14
I350
15
PCIe4.0 X16
