Gooxi SR201 2U User Manual

3
1.2 Product structure
The physical structure of the SR201 2U rack-mounted server is different due to different
requirements, and the configuration will be different. Taking the SR201-D12RE model as an
example, describe the components of the server, as shown in the figure below:

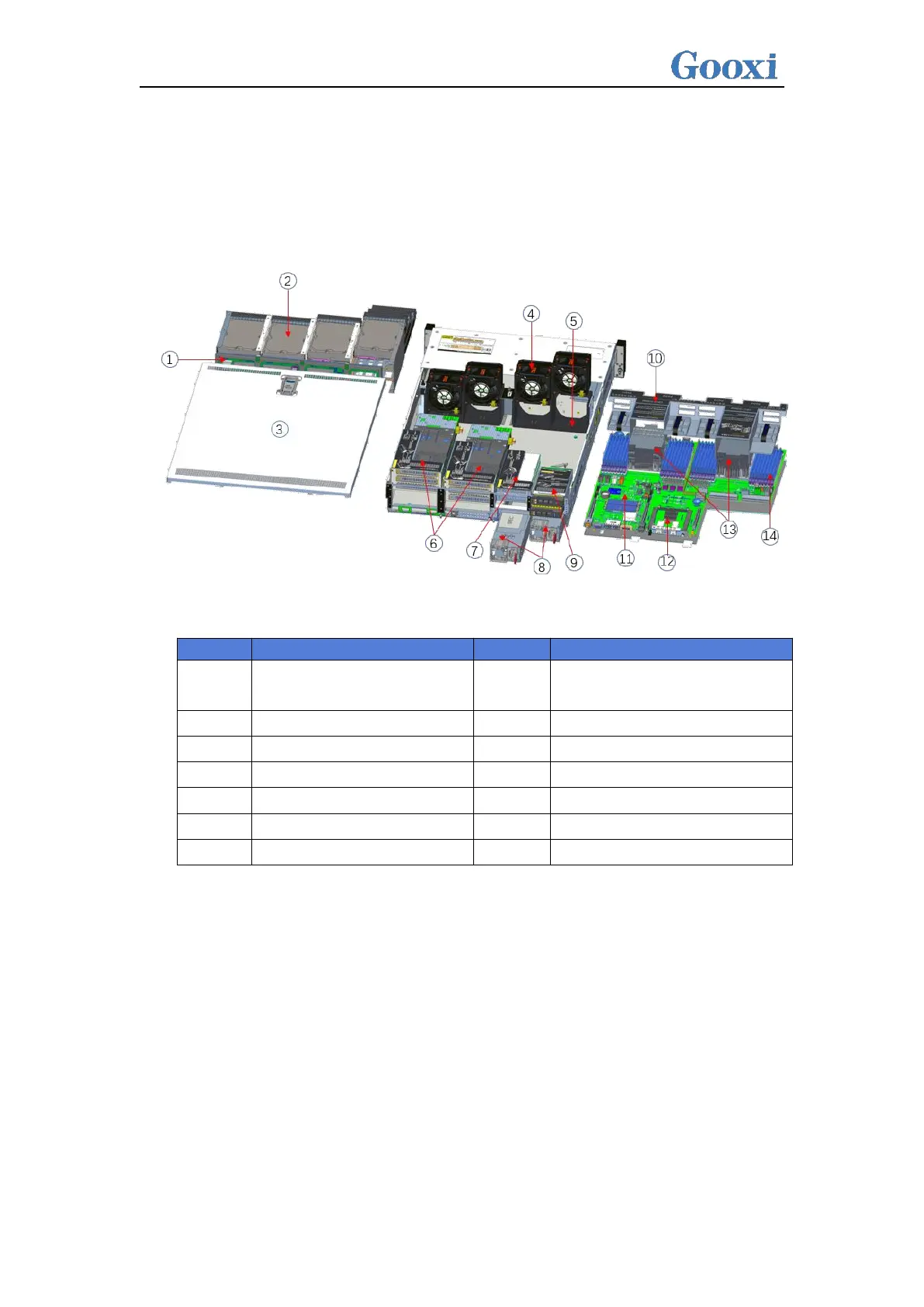

Structure diagram (1-5)
Table (1-1)
1.3 Logical structure
The logic of SR201 2U rack server is shown in the figure below:
S/N
Name
S/N
Name
1
Hard disk backplane
combination
8
Redundant power supply
2
Hard disk holder module
9
Rear 2.5 inch hard disk module
3
Upper cover
10
Wind shield
4
Fan module
11
Motherboard (G1DLRO-B)
5
Fan bracket
12
OCP3.0 network card (optional)
6
Full-height PCIe module
13
CPU heat-sink
7
Half-height PCIe module
14
Memory

Gooxi SR201 2U Specifications

General

Brand	Gooxi
Model	SR201 2U
Category	Server
Language	English
