9
Table (2-5)
Interface description
Name
Type
Amount
Description
VGA
interface
DB15
1
For connection to a display terminal,
such as a monitor or KVM
USB
interface
USB 3.0
2
For accessing USB devices
Table (2-6)

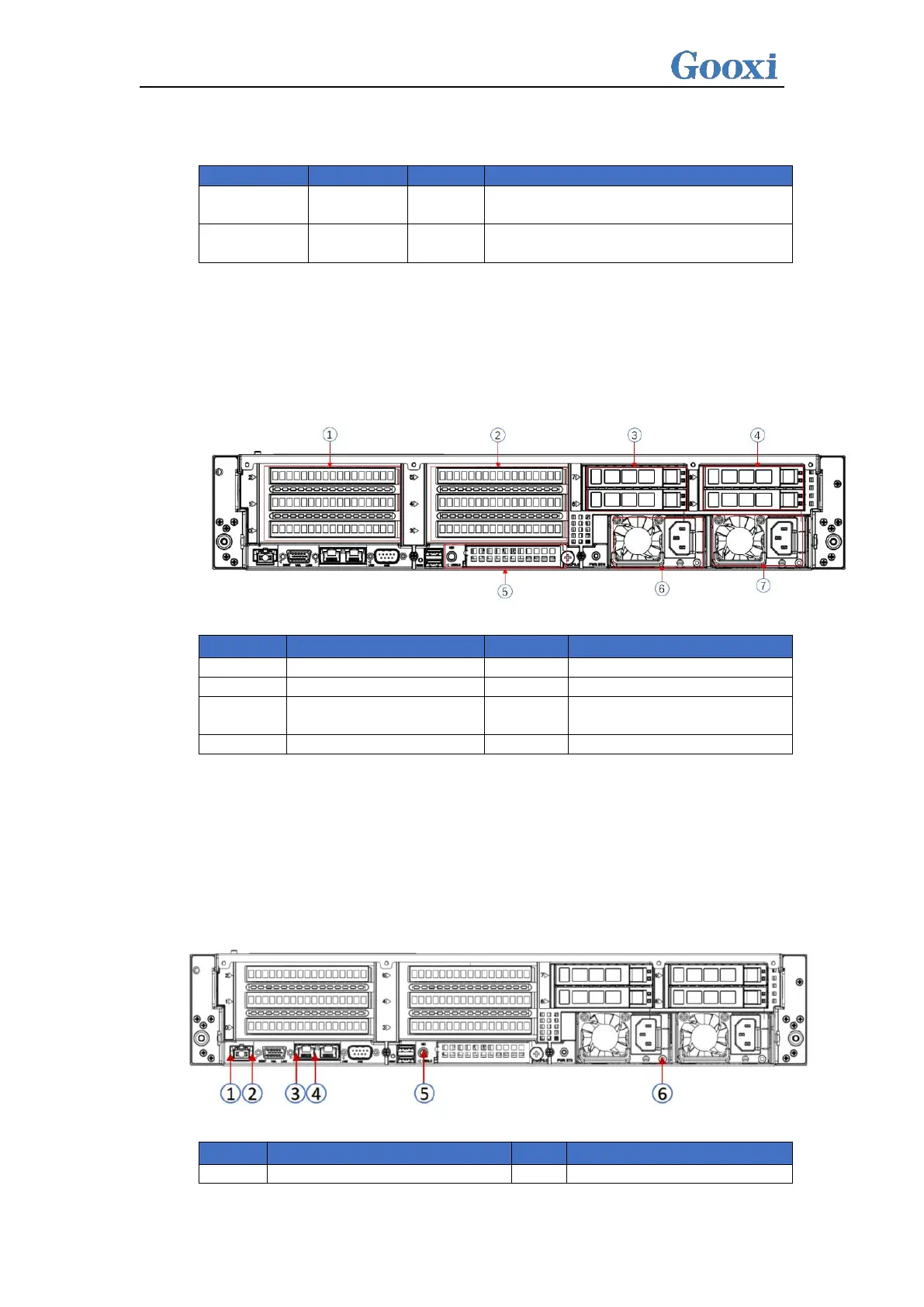

2.2 Rear panel
2.2. 1
Appearance
Appearance of the rear panel
Figure (2-6)
S/N
Name
S/N
Name
1
Riser 1 module
2
Riser 2 module
3
Riser 3 module
4
Riser 4 module
5
OCP network card
(optional)
6
PSU0
7
PSU1
-
-
Table (2-7)
Description:
1. Riser1 module, Riser2 module, Riser3 module, Riser4 module can choose
rear hard disk module or PCIe Riser module.
2. This picture is for reference only, the actual configuration shall prevail.
2.2. 2 LED and button
Rear panel LED
Figure (2-7)
S/N
Name
S/N
Name
1
Management network port data
2
Management network port
