Gooxi SR201 2U User Manual

24


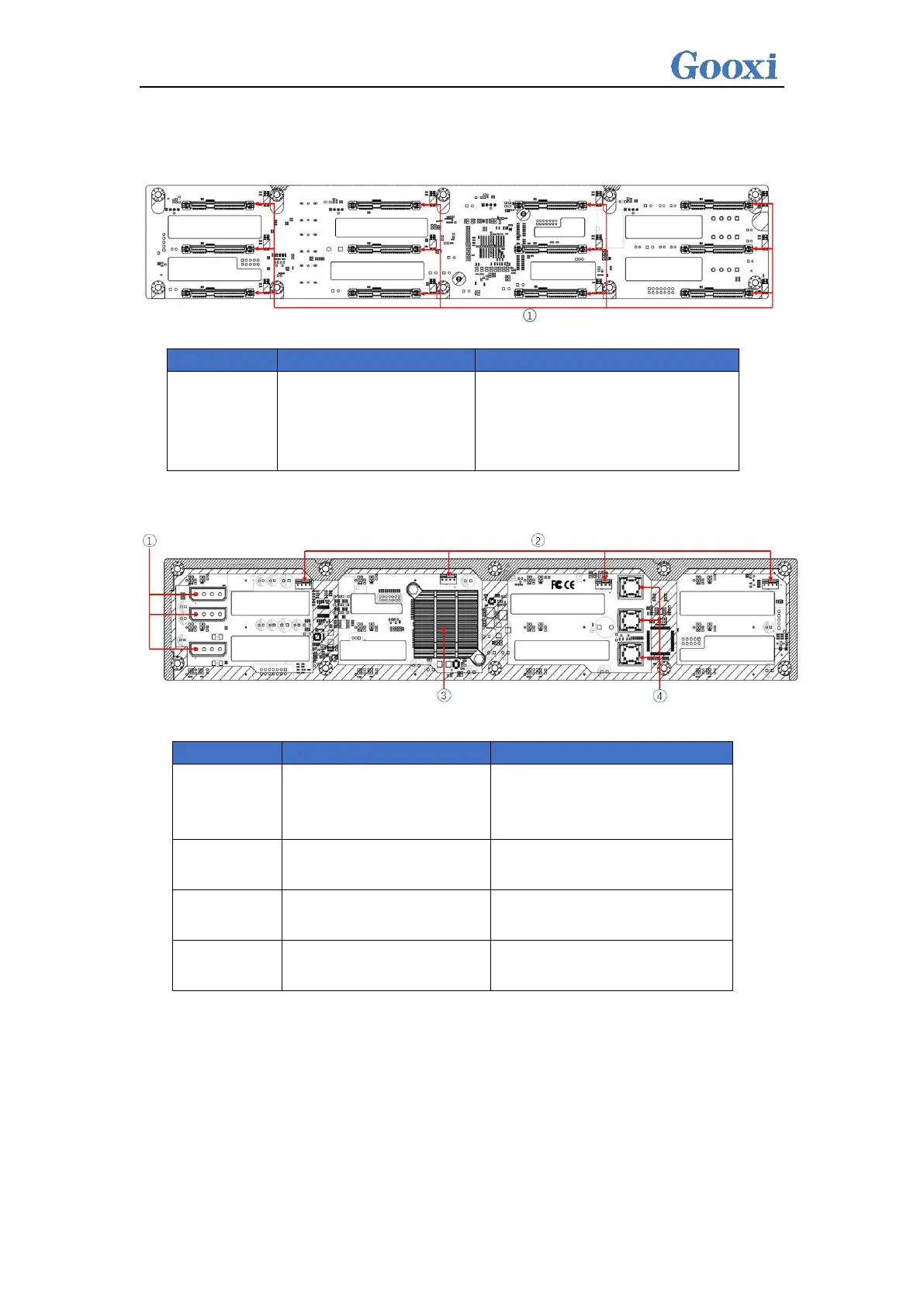

12 x 3.5 inch backplane
TOP surface
Figure (2-26)
S/N
Description
Function
1
SAS/SATA hard disk
connector
1. Support 12Gb/s SAS hard disk;
2. Support 6Gb/s SATA hard disk;
3. Support SAS/SATA hard disk hot
swap.
Table (2-16)
Bottom side
Figure (2-27)
S/N
Description
Function
1
Power connector
Backplane power transmission
connector, used for 12V power
transmission
2
Temperature-controlled fan
socket
For 4pin fan interface
3
Expander chip
PM8043 SXP 24Sx12G
24-port 12G SAS Expander
4
MiniSAS HD high-speed
connector
Used for 12Gb/s SAS or 6Gb/s
SATA signal transmission
Note:*The expansion chip is not available for the direct connection backplane.
Table (2-17)
