Gooxi SR201 2U User Manual

26

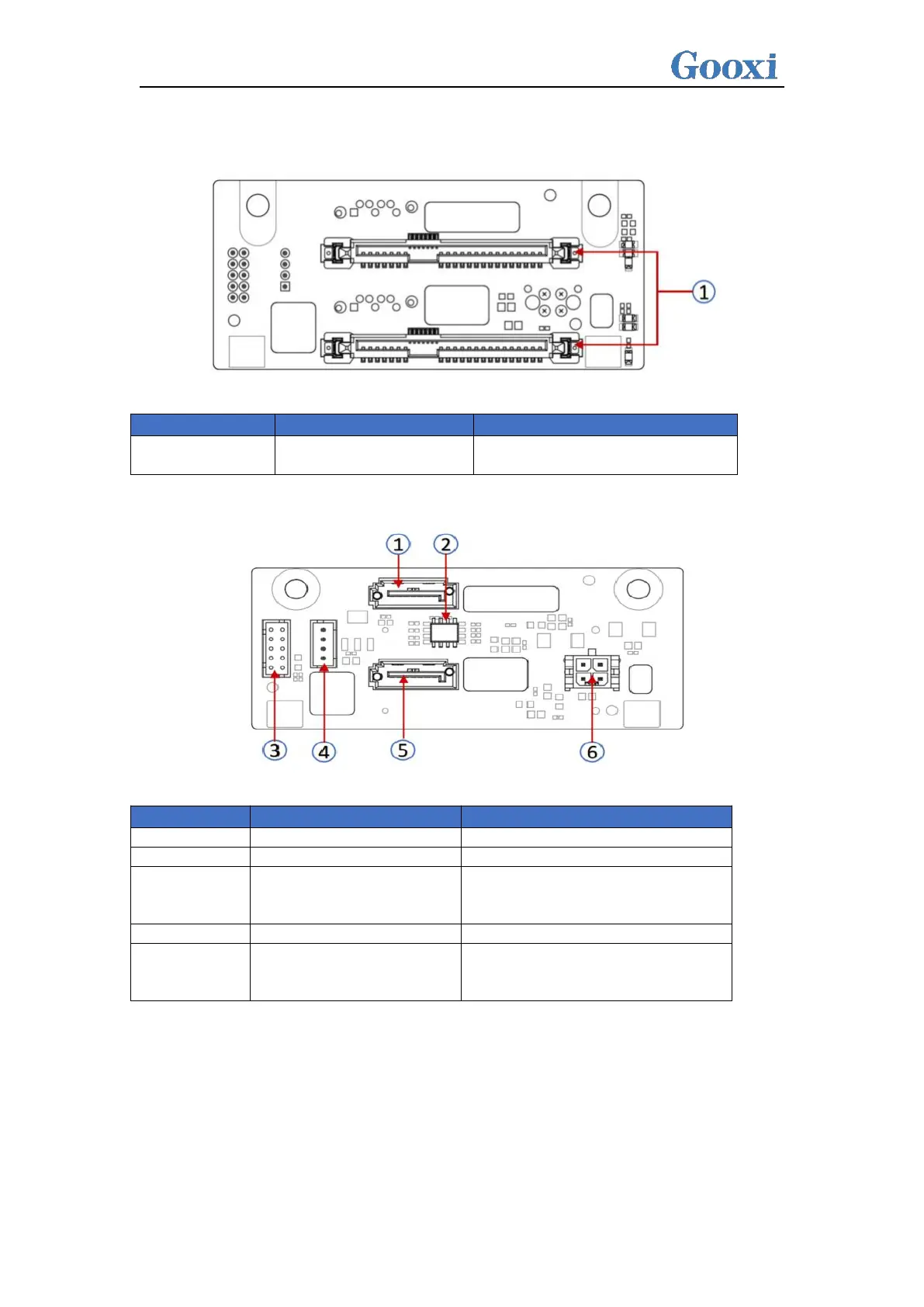

 2 × 2.5 rear hard disk backplane-1
TOP surface
Figure (2-30)
S/N
Description
Function
1
SAS/SATA hard disk
connector
1. Support 12Gb/s SAS hard disk;
2. Support 6Gb/s SATA hard disk.
Table (2-20)
Bottom side
Figure (2-31)
S/N
Description
Function
1, 5
7PIN SATA interface
SATA disk signal cable interface
2
Temperature sensor IC
Temperature sensor chip
3
SGPIO lighting signal
Used for hard disk LED positioning
lighting and fault LED indication
function.
4
I2C interface
For I2C signal interface
6
Power interface
Backplane power transmission
connector, used for 12V power
transmission
Table (2-21)
