Gorilla Playsets Chateau - Page 18

9
1
4
3
2
5
6
7
8

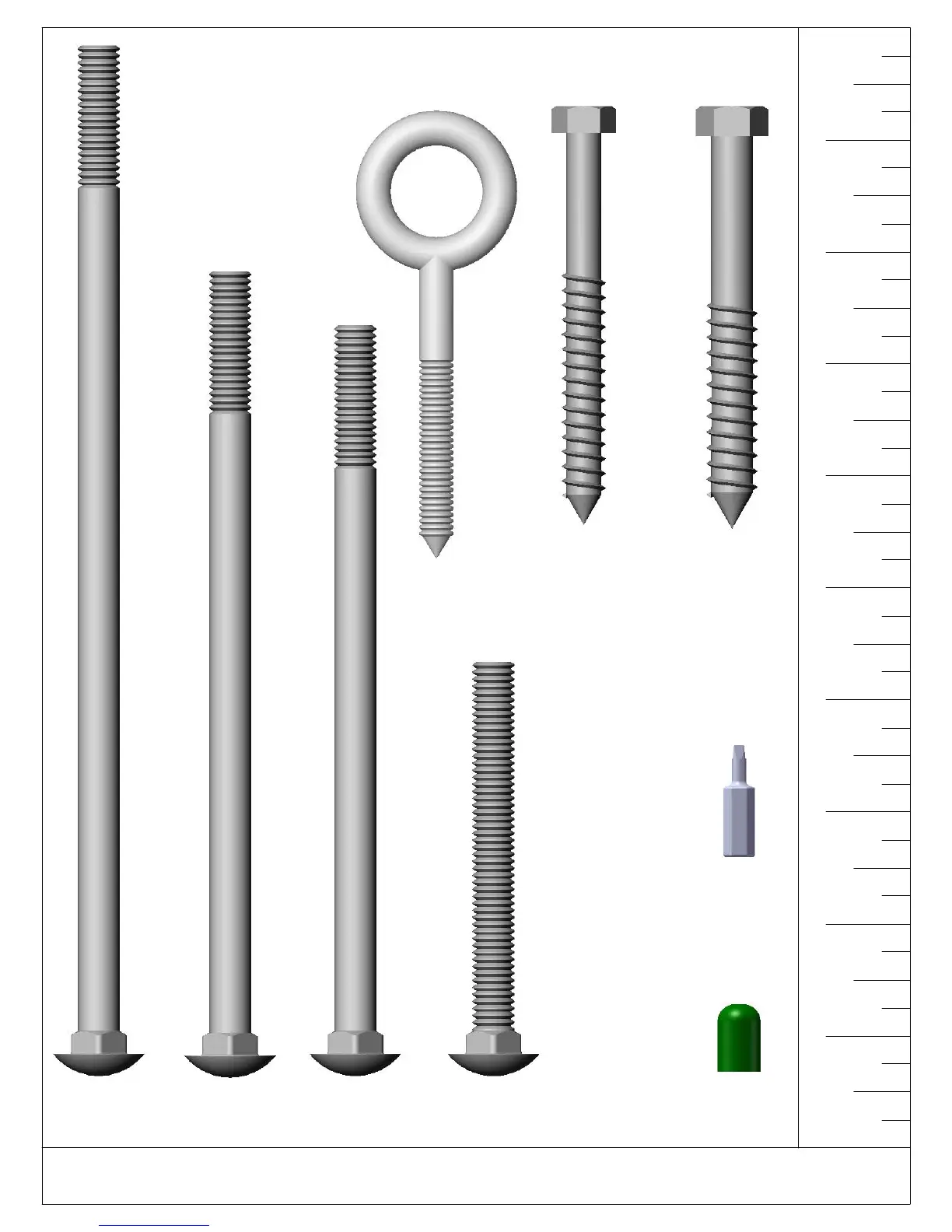

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN
ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.
3/8 x 9"
CARIAGE BOLT
QTY: 1
3/8 x 6-1/2"
CARIAGE BOLT
QTY: 2
3/8 x 7"
CARIAGE BOLT
QTY: 14
5/16 X 4"
EYEBOLT LAG
QTY: 3
QTY: 2
CARIAGE BOLT
3/8 x 3-1/2"
#2 SQUARE
DRILL BIT
QTY: 1
5/16 X 3-1/2"
HEX LAG SCREW
QTY: 22
3/8 X 3-1/2"
HEX LAG SCREW
QTY: 12
PLASTIC
BOLT CAP
QTY: 19
