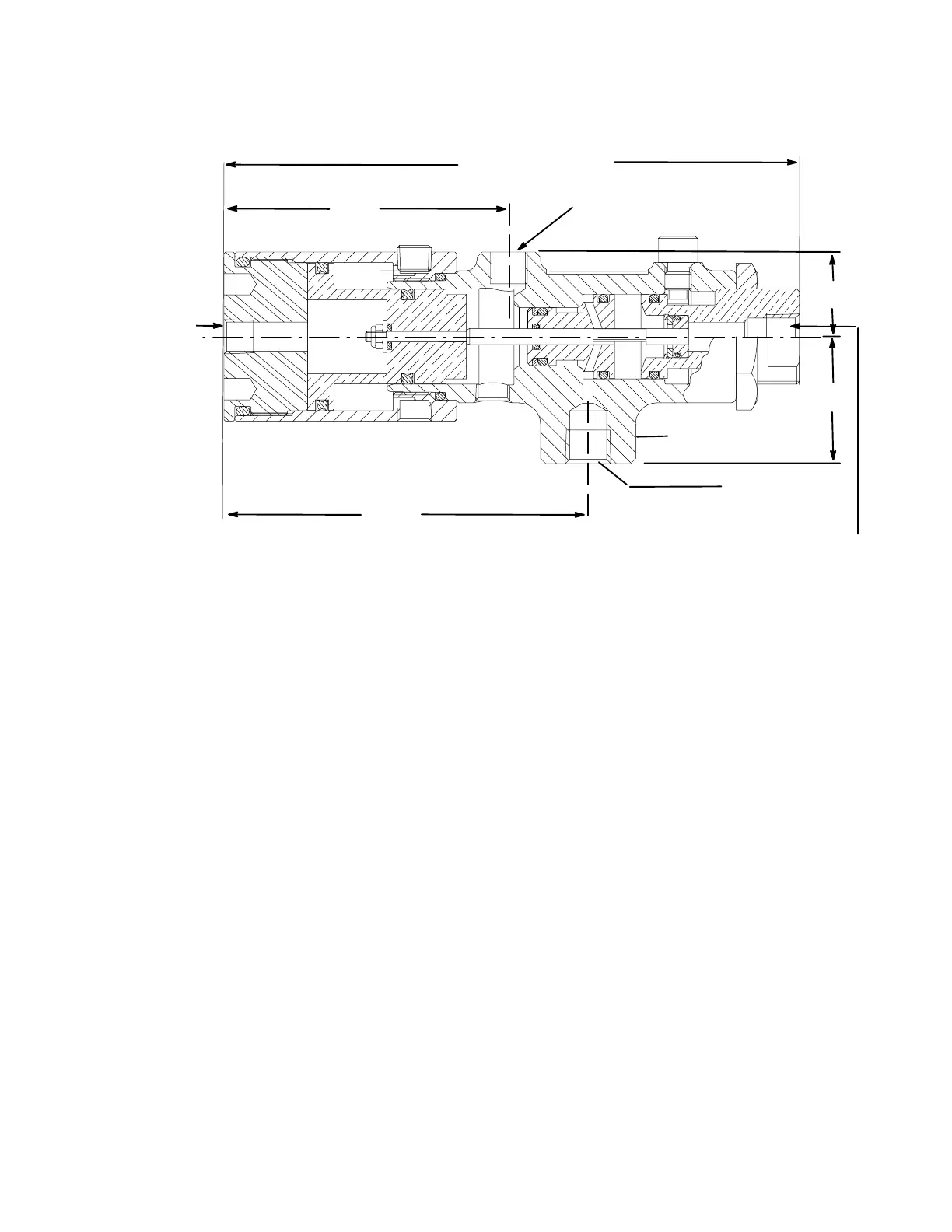

Dimensions
5.50 Max. 5.19 Min.
(139.7 mm Max. 131.8 mm Min.)
7/16–20 x 5/8 Deep
Mounting Hole
Air Supply
Inlet 1/8
NPT
Minimum
80 P.S.I.
3.37
4.30
6.80 MAX 6.49 MIN
1.00
1.50
Material Inlet
1/8 NPT
7/8–18 UNS–2A
Thread for Mounting
Material Outlet
1/8 NPT
