Graco A Series Assembly

Parts
10 306436M

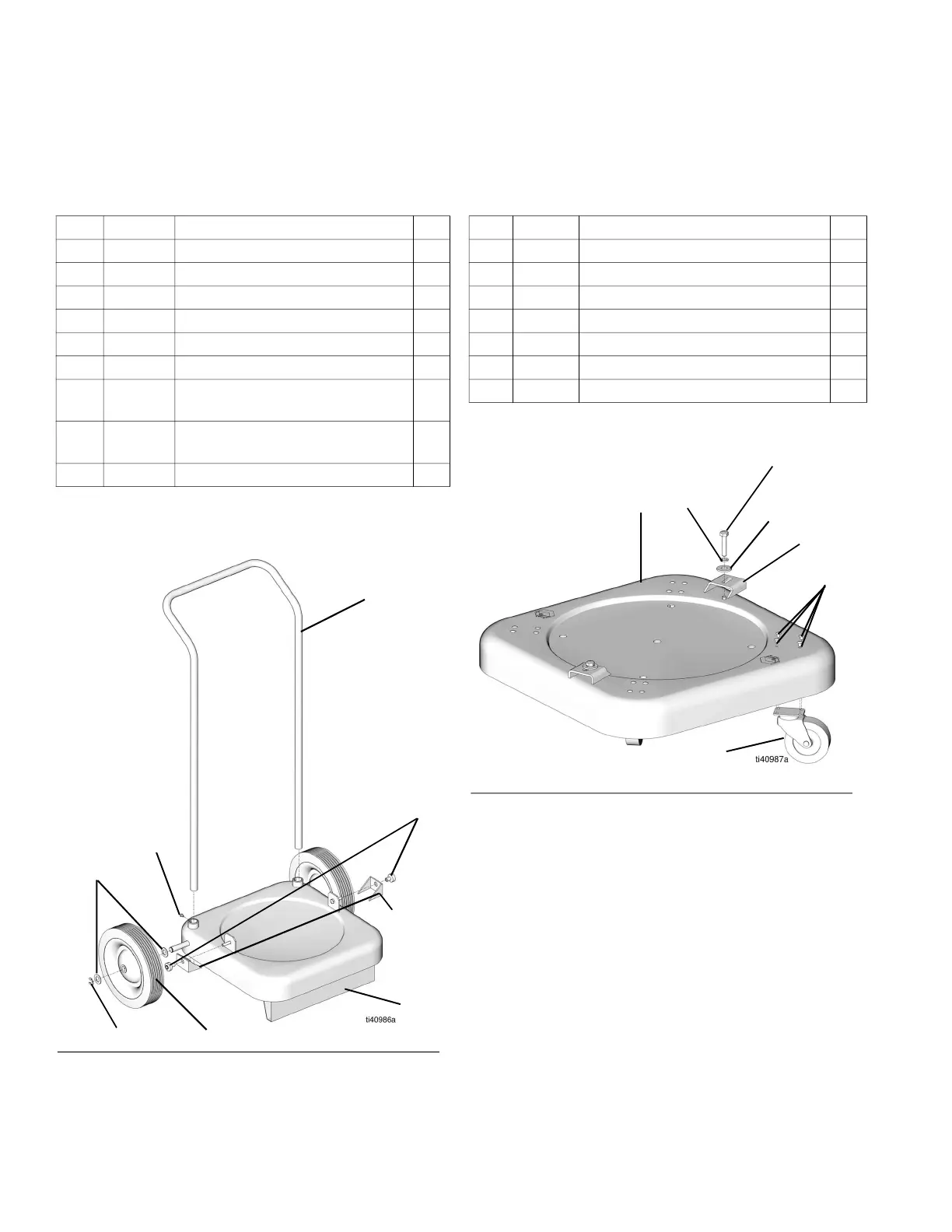

Ref 7, Part 203650, Series A
Truck Assembly
*Must be ordered separately.
Ref 1, Part 203622, Series B
Portable Base Assembly
Ref. Part Description Qty.
701 203651 TRUCK BASE 1
702 100609 SCREW, rd hd, 1/4 - 20 x 3/8 in. 2
703 101242 RETAINING RIGH 2
704 101251 WHEEL 2
705 154636 WASHER 4
706 159912 THUMBNUT 2
707 159913
HOLD DOWN CLAMP, steel
drums only
2
159952*
HOLD DOWN CLAMP, 5 gallon
pail
2
708 159924 TRUCK HANDLE 1
FIG. 8
706
703
708
704
702
701
705
707
Ref. Part Description Qty.
101 191750 BASE, drum 1
102 113646 CASTER, polyurethane 4
103 102547 BOLT, hex hd; 5/16 in - 18 x 1.5 in. 2
104 191747 BRACKET 2
105 100214 WASHER, lock 2
106 100132 WASHER, flat 2
107 113660 RIVET 16
FIG. 9
102
103
101
104
106
105
107
