Graco A Series Assembly

Parts
306436M 7
Gear Lube Dispenser
Model 225384, Series B
Automatic Transmission Fluid
Dispenser
Model 225880, Series B
Ref. Part Description Qty.
2 239705
HOSE AND METER ASSEMBLY, see
Parts List, page Ref 2, Part 239705,
Series A Hose and Meter
Assembly, page 11
1
3 204867
HAND PUMP ASSEMBLY, see Parts
List, page Gear Lube Dispenser,
page 6
1
6 204574
COVER ASSEMBLY, see Lube
Ranger Components manual
1
7 203650
TRUCK ASSEMBLY. See Parts List,
page Model 204867, page 8.
1

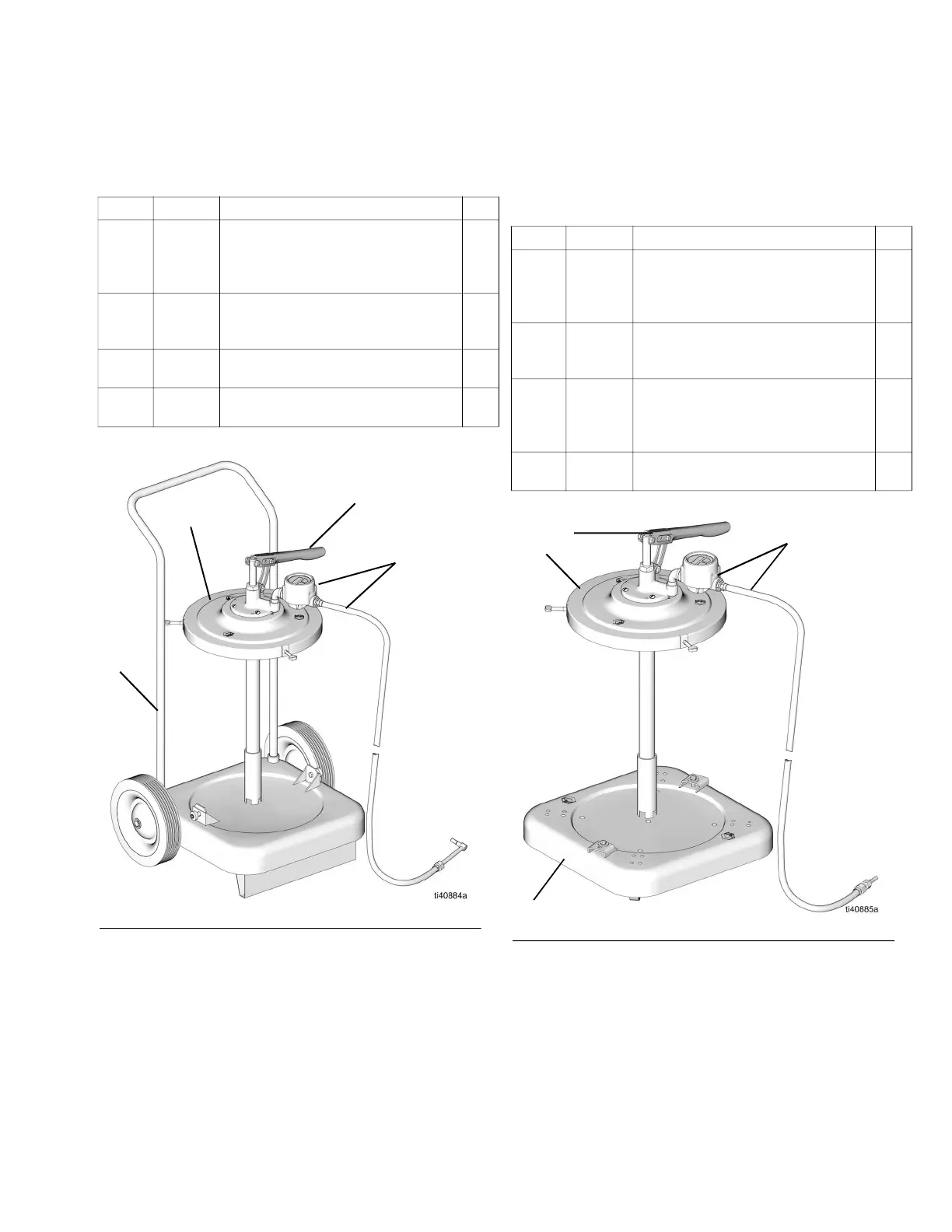

FIG. 6
1
3
201
6
2
3
6
7
Ref. Part Description Qty.
1 203622
PORTABLE BASE ASSEMBLY, see
Parts List, page Ref 1, Part 203622,
Series B Portable Base Assembly,
page 10
1
3 204867
HAND PUMP ASSEMBLY, see Parts
List, page Gear Lube Dispenser,
page 6
1
5 239707
DISPENSE KIT, metered. See Parts
List, page Ref 5, Part 239707,
Series A Metered Dispense Kit,
page 11
1
6 204574
COVER ASSEMBLY, see Lube
Ranger Components manual
1
FIG. 7
1
3
5
6
