Graco A Series Assembly

Parts
6 306436M
Parts
Gear Lube Dispenser
Model 225378, Series A without meter
Includes items 1, 3, 6, 201
Model 225376, Series B with meter
Includes items 1, 2, 3, 6
Gear Lube Dispenser
Model 225380, Series A
Includes items 3, 6, 201
Ref. Part Description Qty.
1 203622
PORTABLE BASE ASSEMBLY, see
Parts List, page Ref 1, Part 203622,
Series B Portable Base Assembly,
page 10
1
2 239705
HOSE AND METER ASSEMBLY, see
Parts List, page Ref 2, Part 239705,
Series A Hose and Meter
Assembly, page 11
1
3 204867
HAND PUMP ASSEMBLY, see Parts
List, page Gear Lube Dispenser,
page 6
1
6 204574
COVER ASSEMBLY, see Lube
Ranger Components manual
1
201 214658
HOSE ASSEMBLY, Model 225378
only. Includes items 201a - 201c;
See Parts List, page Ref 2, Part
239705, Series A Hose and Meter
Assembly, page 11.
1

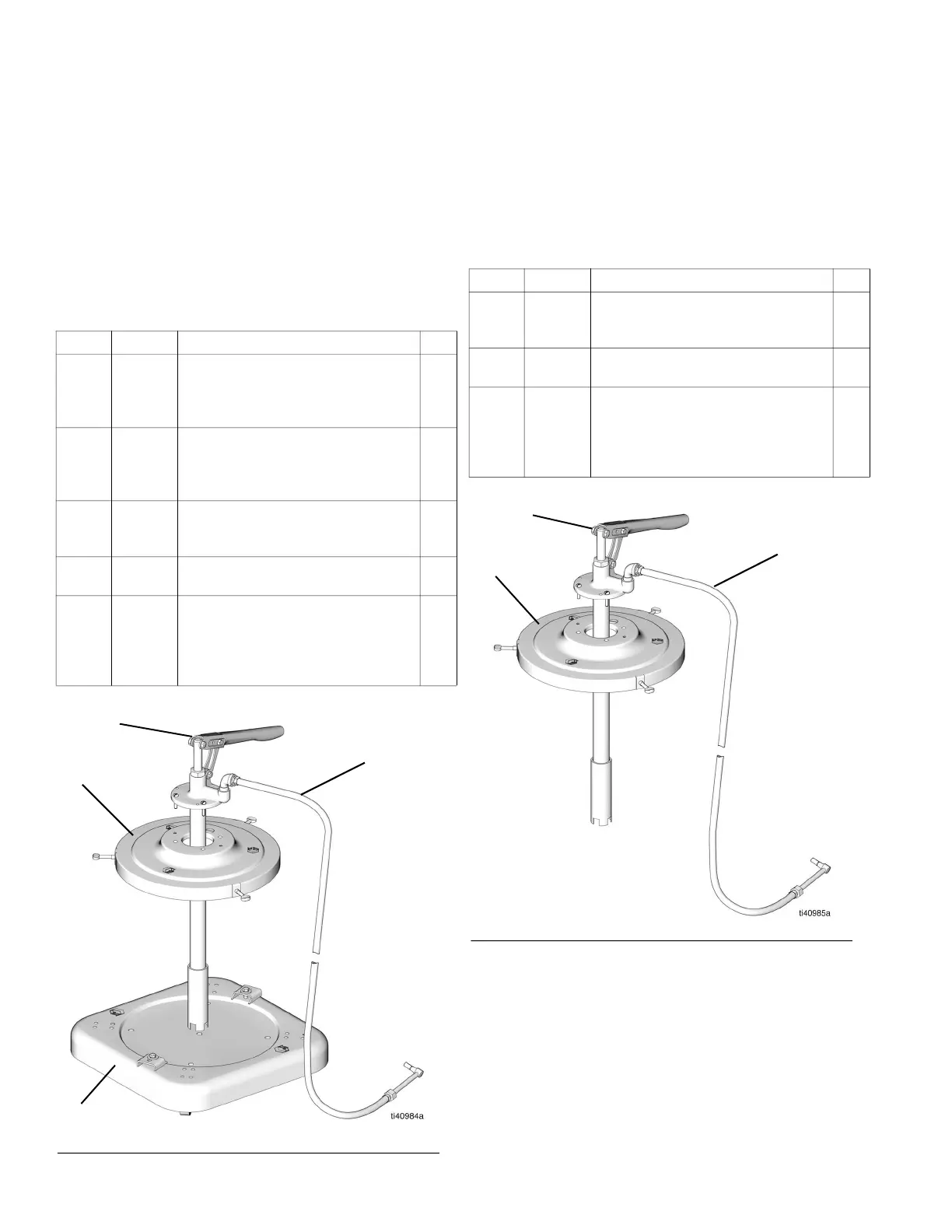

FIG. 4
1
3
201
6
Ref. Part Description Qty.
3 204867
HAND PUMP ASSEMBLY, see Parts
List, page Gear Lube Dispenser,
page 6
1
6 204574
COVER ASSEMBLY, see Lube
Ranger Components manual
1
201 214658
HOSE ASSEMBLY, Model 225378
only. Includes items 201a - 201c;
See Parts List, page Ref 2, Part
239705, Series A Hose and Meter
Assembly, page 11.
1
FIG. 5
3
201
6
