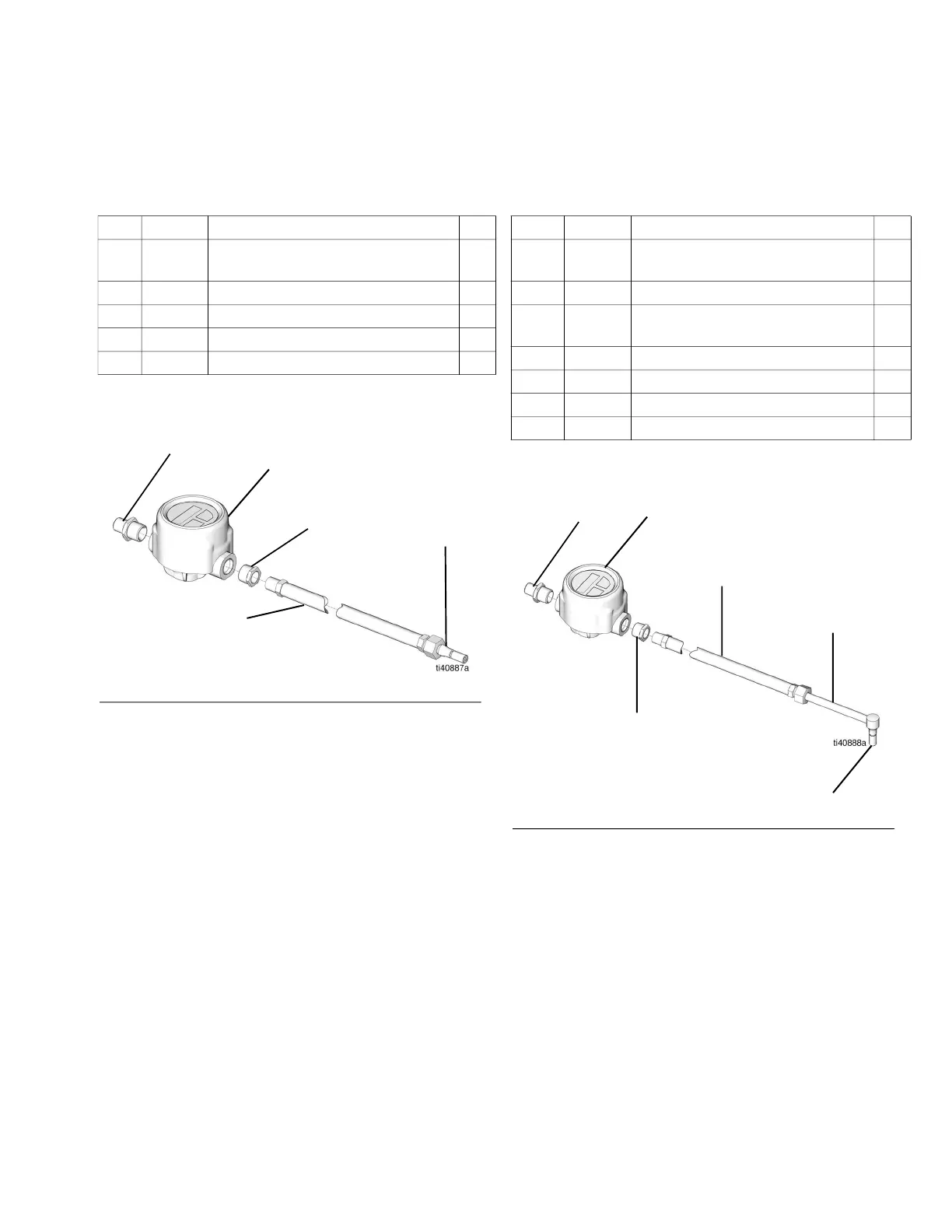

Graco A Series Assembly

Parts
306436M 11
Ref 5, Part 239707, Series A
Metered Dispense Kit
*Keep spare on hand to reduce down time.
Ref 2, Part 239705, Series A
Hose and Meter Assembly
*Keep spare on hand to reduce down time
Ref. Part Description Qty.
501* 214657
HOSE, fluid, cpld 1/2 npt(m) x 1/4
npt(f); 1/2 in. ID, 5 ft. long
1
502 203469 NON-DRIP NOZZLE 1
503 157191 NIPPLE, 1.2 npt x 3/4 npt 1
504 100896 FITTING, bushing pipe 1
508 25C841 METER, in-line electronic 1
FIG. 10
*501
503
508
504
502
Ref. Part Description Qty.
201 214658
HOSE ASSEMBLY, includes
items 201a - 201c
1
201a 200348 NON-DRIP NOZZLE 1
201b* 214657
HOSE, fluid, cpld 1.2 npt(m) x 1/4
npt(f), 1/2 in. ID, 5 ft. long
1
201c 100200 NIPPLE, 1/4 npt, 6 ft. long 1
202 157191 NIPPLE, 1/2 npt x 3/4 npt 1
203 25C841 METER, in-line electronic 1
204 100896 FITTING, bushing pipe 1
FIG. 11
204
201b
203
201a
201c
202
