Parts
8
306436M

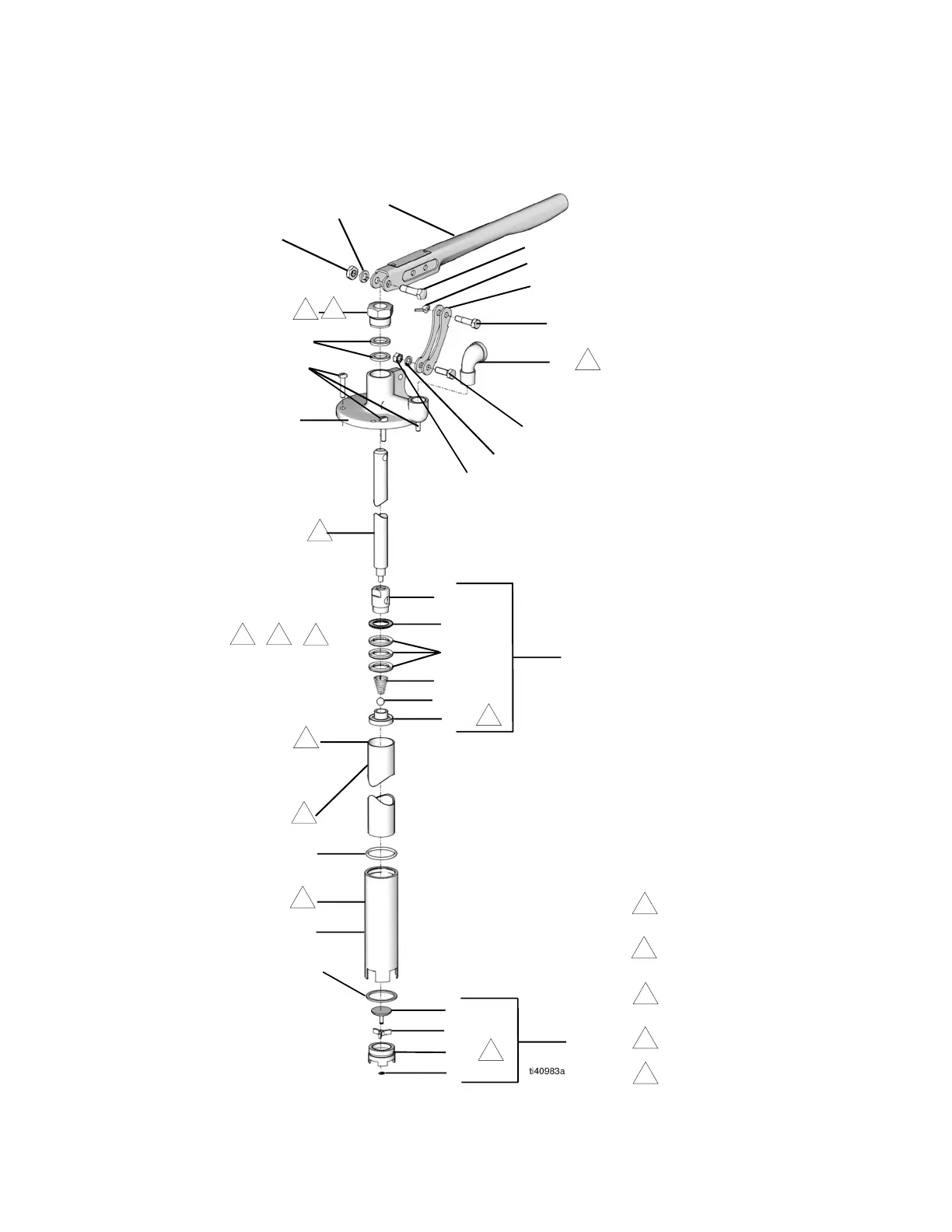

Model 204867
Pa
r
t
s
D
r
a
w
i
n
g
4
3
1
2
Lubricate
threads.
1
2
3
Lubricate
I.D.
2
Lubricate thr
eads.
3
Lubricate t
hreads.
4
316
310
311
306
321
303
308
304
307
305
1
312
313
309
4
322
319
1
320
301f
301c
301d
301b
301a
1
301e
301
4
314
315
318
317
302b
4
302c
302d
302a
302
5
T
or
q
ue t
o 25 in-lbs (2.8 N•m)
5
7
9
Table of Contents
Related Manuals
1
Table of Contents
2
Installation
3
Models with a Portable Truck
3
All Models
3
Models with Drum Cover
3
Operation
4
Pressure Relief Procedure
4
Pump Operation
4
Models with Non-Drip Nozzle 200348
4
Dimension Chart
4
Recycling and Disposal
4
End of Product Life
4
Repair
5
Pump
5
Parts
6
Gear Lube Dispenser
6
Model 225378, Series a Without Meter
6
Model 225376, Series B with Meter
6
Model 225380, Series a
6
Gear Lube Dispenser
7
Model 225384, Series B
7
Automatic Transmission Fluid Dispenser
7
Model 225880, Series B
7
Model 204867
8
Ref 3, Part 204867, Series a Hand Pump Assembly
9
Ref 7, Part 203650, Series a Truck Assembly
10
Ref 1, Part 203622, Series B Portable Base Assembly
10
Ref 5, Part 239707, Series a Metered Dispense Kit
11
Ref 2, Part 239705, Series a Hose and Meter Assembly
11
Ref 3, Part 204867, Series a Hand Pump Assembly
12
California Proposition 65
13
Graco Standard Warranty
14
