Parts
3A3489T 43

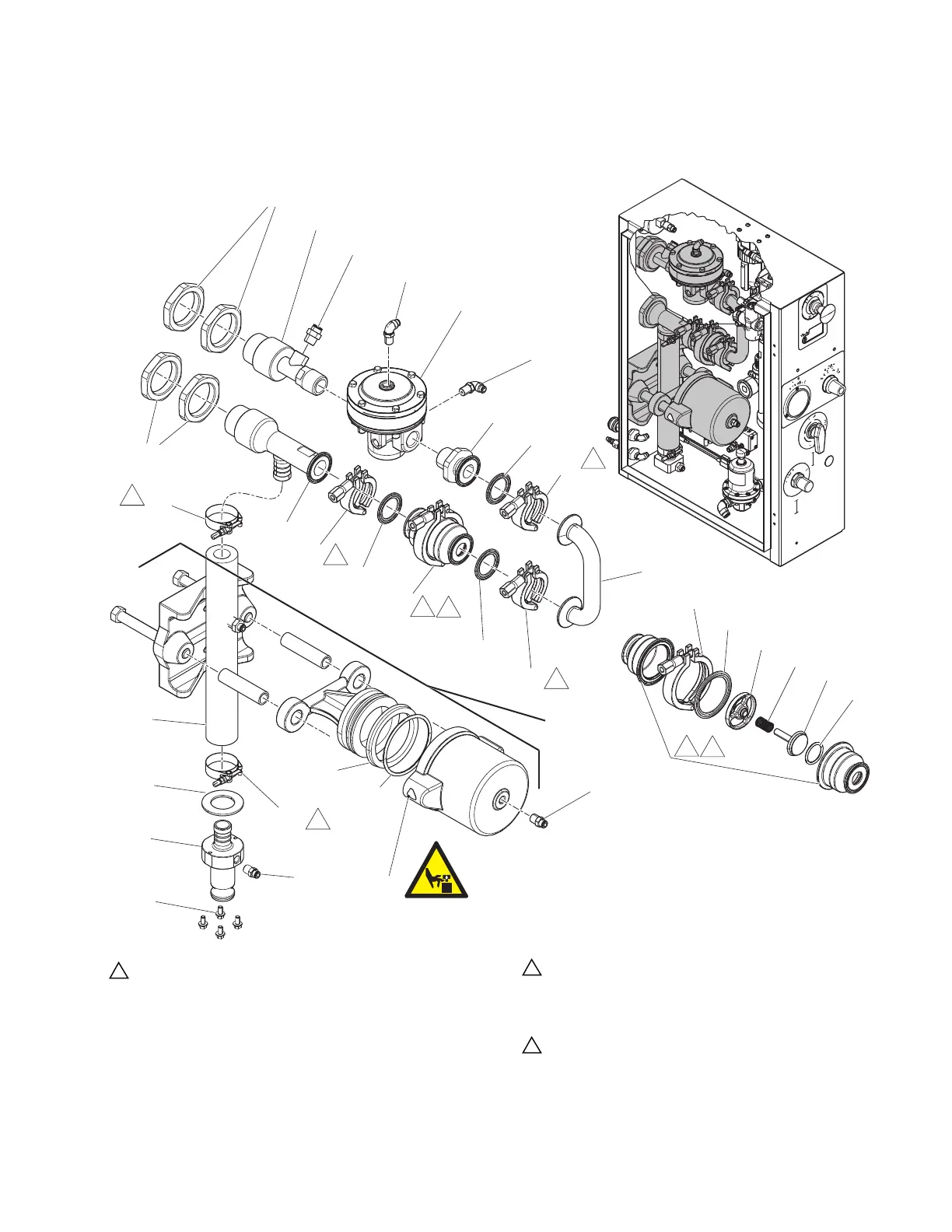

Enclosure Parts (EQm only)
WLG
D
E
D
G
F
H
E
I
J
Assemble valve (17) with plunger facing the bent
manifold (16).
1
Apply anti-seize to threads on clamp (62). Align
the nuts pointing towards the front of the
enclosure. Torque nuts to 85 +/- 5 in-lb
(9.6 +/- 0.5 N•m).
Apply anti-seize to threads on clamp (17g and 60).
Align the nuts pointing towards the front of the
enclosure. Torque nuts to 15 +/- 2 ft-lb
(20.3 +/- 2.7 N•m).
2
3
To Next Page
