Component Identification
3A3489T 9
MediaTrak Controls
Key:
A Blast Control Switch
A2 Blast Nozzle
B Blast Hose
C Pot
E Pot Seal Plunger
F Pot Dump Valve
G Pressure Relief Valve
H Pot Pressure Gauge
J Abrasive Ball Valve
K Control Box
L Emergency Stop
M Blast Air Regulator
N Water Dose Valve
P Abrasive Metering Valve
Q Water Pump Inlet Filter
R Inlet Water Pressure Regulator
S Blast Air Pressure Gauge
T Selector Valve
U Rinse Ball Valve
V Air Supply Connection
W Blast Connection
X Pneumatic Control Connection
Y Electric Control Connection (non-ATEX systems
only)
Z Supply Pressure Gauge
ZA MediaTrak
ZB Accessory Extension Hose
ZC Abrasive Material
ZD Pot Outlet Manifold
ZE Ground Wire and Clamp (ATEX systems only)
ZG Pop-Up Seal
ZH Quick Drain Valve

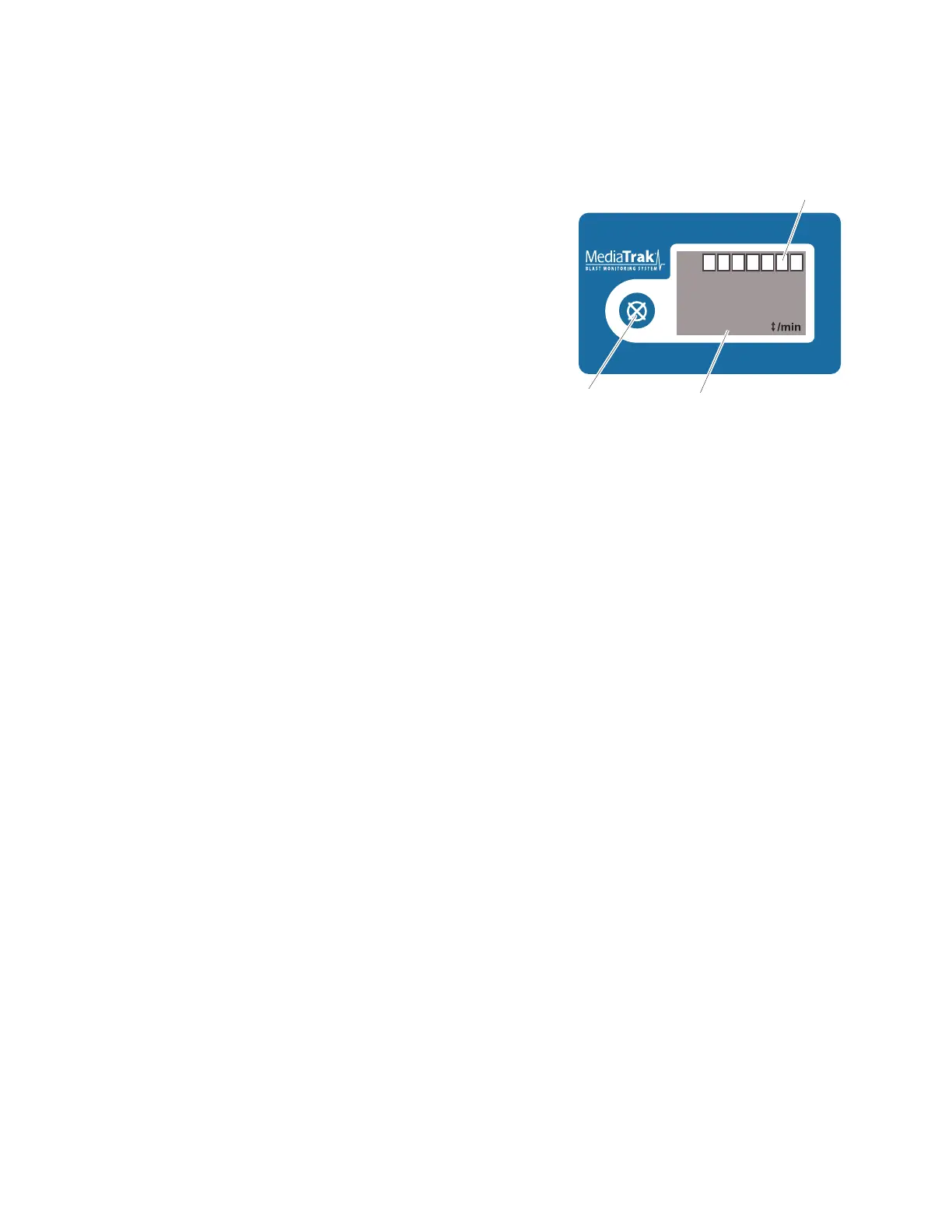

Key:
PK Power Key
CR Cycle/Rate
GT Grand Totalizer
WLD
8800000
*7
3.
15
&5
