Parts
34 3A4802D

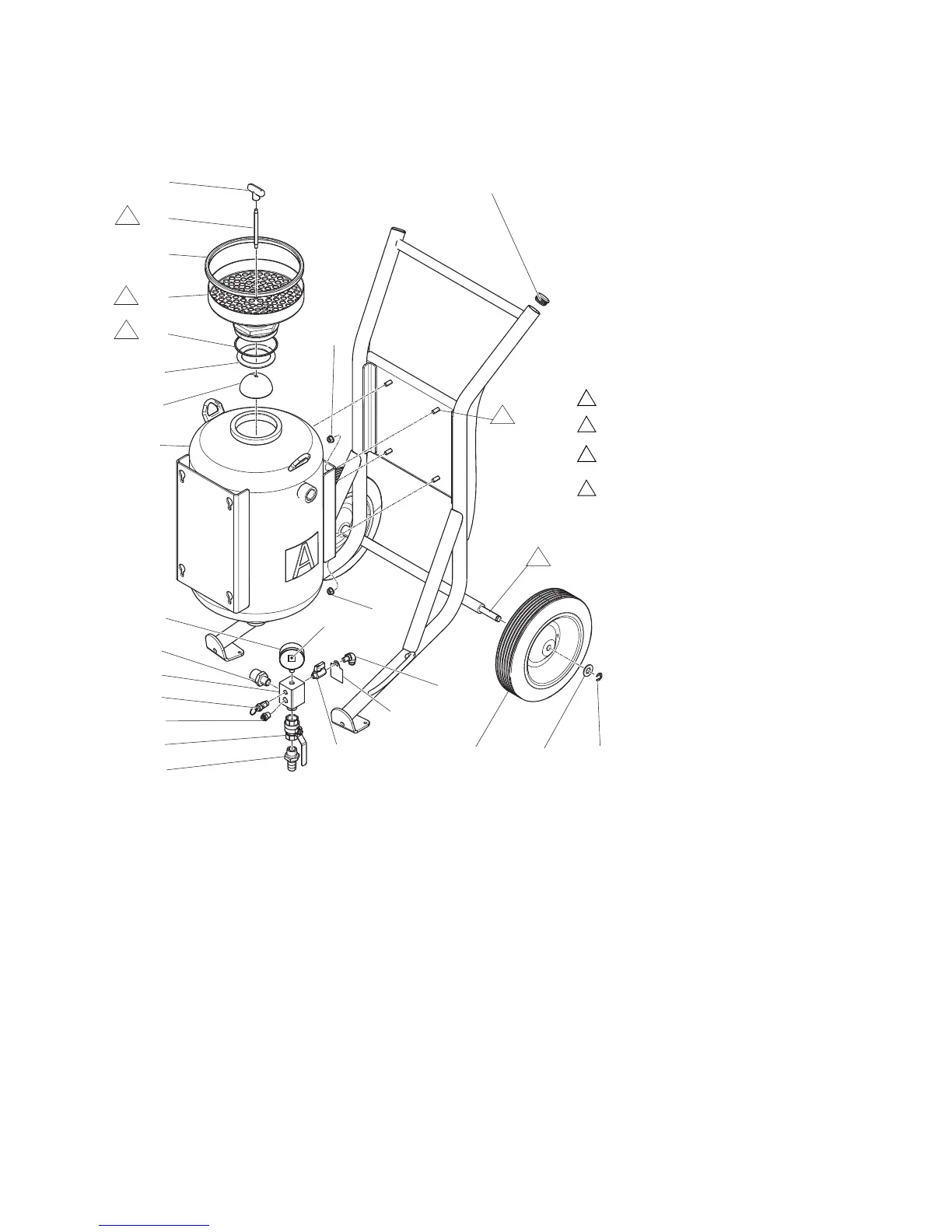

EQp Parts (continued)
EQp Parts List (continued)
WLD
[
[
1
4
Apply thread sealant.
5
Apply anti-sieze to studs.
Apply grease before assembling
wheels and o-ring.
8
Torque to 70 +/- 5 ft-lb (94 +/- 6.7 N•m).
Ref. Part Description Qty.
1
- - - - -
CART, painted, EcoQuip 1
2
- - - - -
PRESSURE POT, blast media, 2.0 cu ft 1
3 17S058 WHEEL, semi pneumatic, offset
(includes 4, 24)
2
4 101242 RING, retaining, ext. 2
5 128226 NUT, flange, 3/8-16, sst 4
6 129571 PLUG, tube, 1.50 od 2
7 17R930 FITTING, nipple, reducing, 1 x 1/2, sst 1
8 - - - - - MANIFOLD, dump 1
9 17L622 VALVE, safety relief, 220 psi 1
10 127852 FITTING, elbow, swivel,
push-to-connect
1
11 17L320 GAUGE, pressure, fluid (includes 29) 1
12 129903 VALVE, ball, 2pc, sst, 3/4 in. npt 1
13 EQ1012 FITTING, nipple barb hose 3/4 in. 1
17 121018 FITTING, elbow, male, swivel, 1/4 npt 1
18 17R837 O-RING, 3 in. ID, 5 in. cross section 1
19 104280 PACKING, o-ring 1
20 17R838 FUNNEL, pressure pot (includes 19) 1
21 17R839 SEAL, puck, pressure pot
(includes 22, 23)
1
22 17R661 ROD, 4 in. long, 5/16-18 thread 1
23 17R750 HANDLE, puck, funnel 1
24 111841 WASHER, plain 5/8 2
26 15B565 VALVE, ball 1
27 17R970 LABEL, operation 1
28 17S061 KIT, funnel edge trim, EQp 1
29 - - - - - LABEL, 185 psi (12.7 bar, 1.27 MPa) 1
Ref. Part Description Qty.
