Operation
10 3A4802D

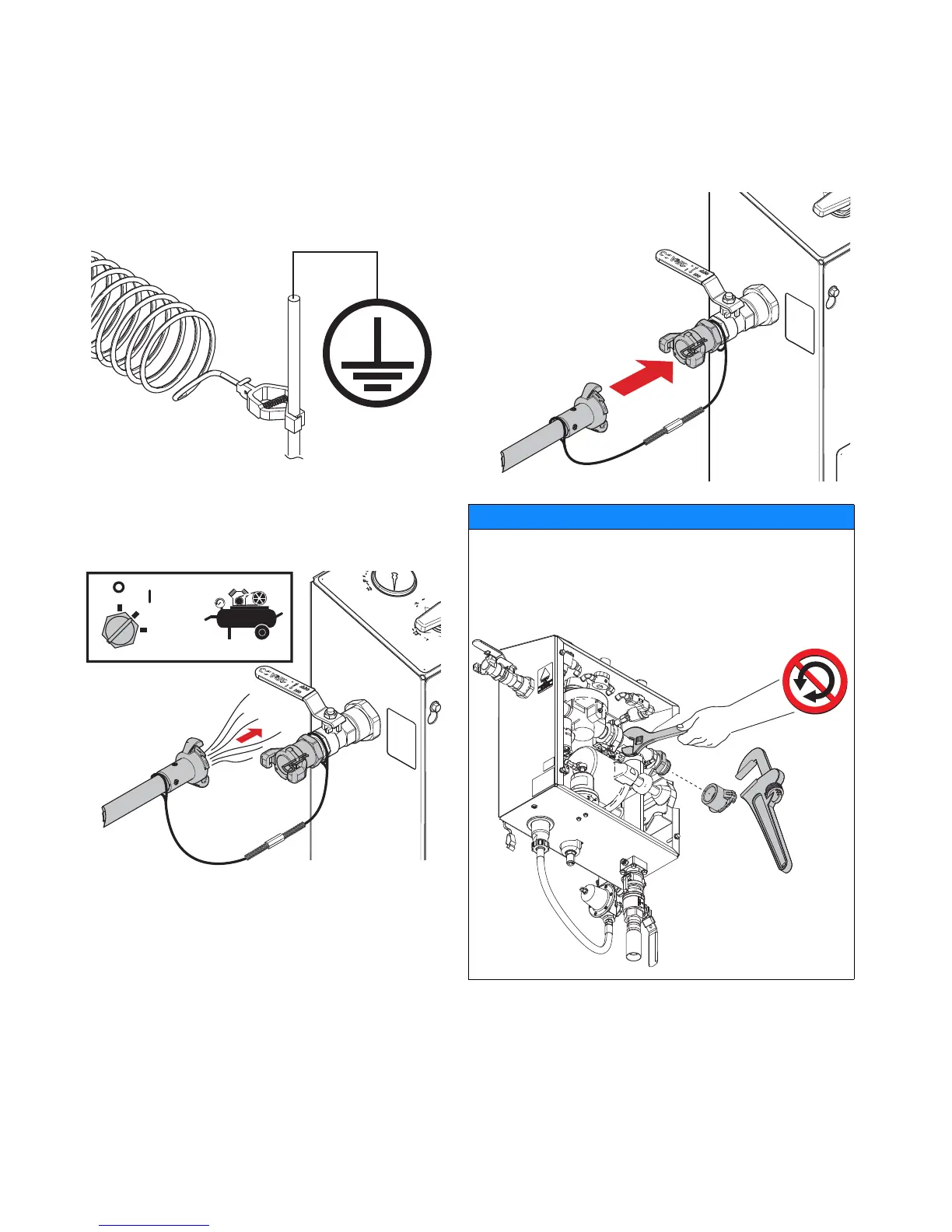

Connecting the Blast Hose and
Air Hose
1. Connect the grounding cable clamp to a true earth
ground.
A
2. Always purge the air supply hose before connecting
the air supply hose from the compressor (or an
on-site compressed air source) to the panel. Make
sure all debris is cleared from the hose.
3. Connect an appropriately sized air supply hose to
the air inlet and install the hose restraints and cou-
pler pins (see Technical Specifications, page 45).
NOTICE
Damage to the tubing connections on the blast control
can occur if the blast circuit is allowed to rotate. To
avoid damage, use a wrench to hold the blast circuit
inside the enclosure while installing threaded fittings to
the blast circuit connections.
WLD
