Graco EcoQuip 2 EQp - Draining the Pot

Operation
18 3A4802D
Draining the Pot
With Pressurized Water Supply:
1. Turn the selector valve to OFF.
2. Open the abrasive ball valve (M).
3. Open the pot dump valve (J) to relieve pressure in
the pinch hose and pot. NOTE: For additional infor-
mation on the Pinch Hose, see page 28.
4. Close the pot dump valve (J) once the pot pressure
gauge reads 0 psi.
5. Close the abrasive ball valve (M).
6. Disconnect the abrasive ball valve cam-lock by
removing the coupler pins and pulling the rings out
and up to pull the two cams away from the groove.
NOTE: Be prepared to capture the water that will be
drained from the pot. All disposals must comply with
national, state, and local regulations.
7. Open the fill/flush valve (XD). Once water is above
the pop-up seal, pull up on the pop-up handle to
pressurize the pot.

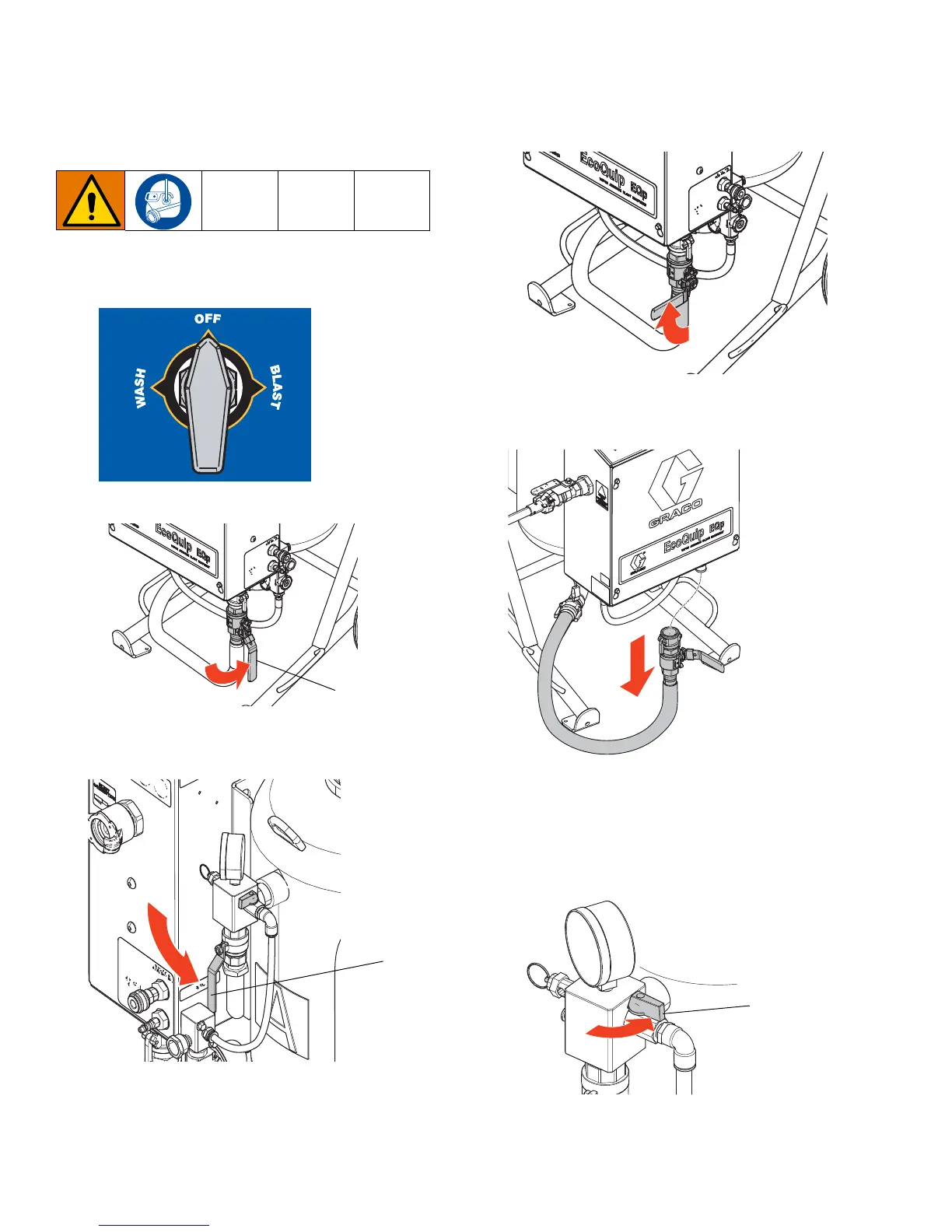

ti30725a
