Installation
332291P 15

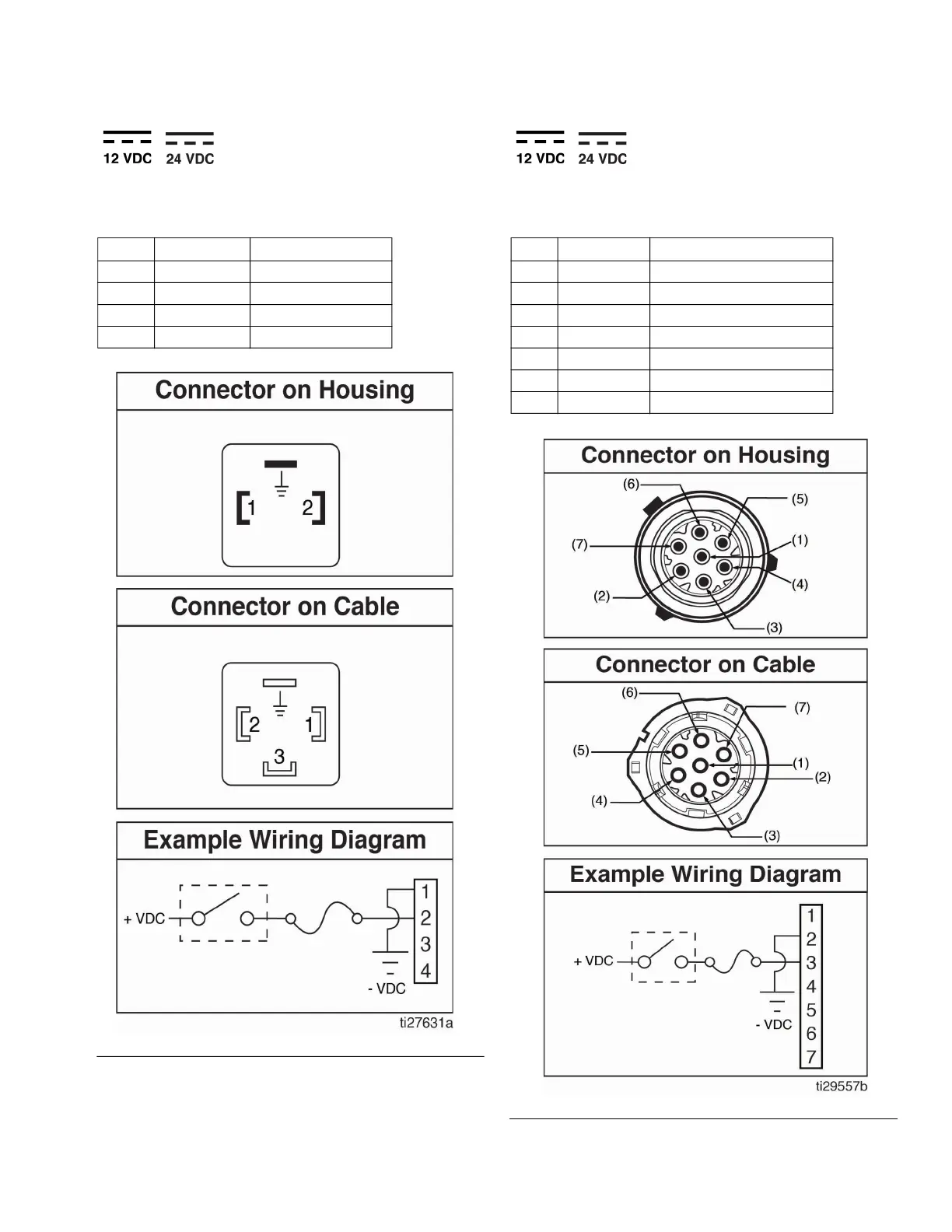

Power DIN DC - 15 foot
Pin and Related Wire Color (FIG. 8)
Power CPC DC - 15 foot
Pin and Related Wire Color (FIG. 9)
Pin Pin Name Color
1 -VDC Black
2 +VDC White
3 Not Used Not Used
4
Not Used Green
FIG. 8
Pin Pin Name Color
1 Not Used Not Used
2 -VDC Black
3 +VDC White
4 Not Used Not Used
5 Not Used Not Used
6 Not Used Not Used
7 Not Used Green
FIG. 9
