Installation
14 332291P
Fuses
Fuse Kits are available from Graco. The following Table
identifies the correct fuse to use for the input voltage
and the corresponding Graco Kit number.
Recommendations for Using Pump in
Harsh Environments
• Use pump with CPC style power cable.
• If using a DIN style power or alarm harness with a
right angle mating connector, make sure the con-
nector does not exit the unit in the UP direction.
• Use a corrosion preventative electrical grease on all
contacts.

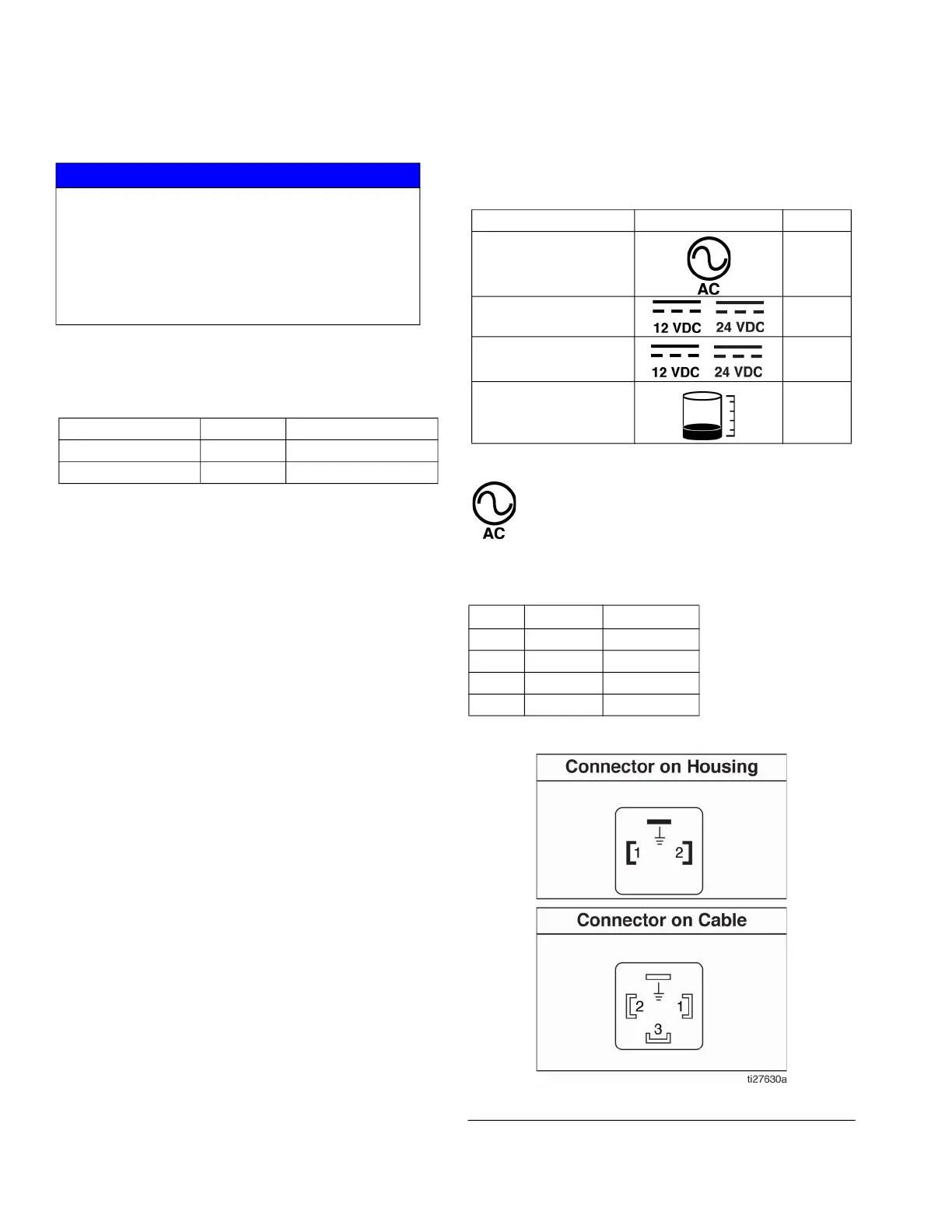

Wire and Installation Diagrams
The following table identifies the wiring and installation
diagrams for the cables included with the pump.
Power DIN AC - 15 foot
Pin and Related Wire Color (FIG. 7)
NOTICE
Fuses (user supplied) are required on all DC mod-
els. To avoid equipment damage:
• Never operate G3 Pump DC models without a
fuse installed.
• A fuse of the correct voltage must be installed
in line with the power entry to the system.
Input Voltage
Fuse Value
Graco Kit No.
12 VDC 7.5 A 571039
24 VDC
4 A
571040
Diagram
Symbol
Page
Power DIN AC 14
Power DIN DC 15
Power CPC DC 15
Low Level Outputs 16
Pin Pin Name Color
1 Line Black
2 Neutral White
3 Not Used Not Used
4
Ground Green
FIG. 7
To Next Page
