21
308-327
Clutch
NOTE:
The clutch assembly (212) includes the arma
-
ture (212a) and rotor (212b). The armature and rotor
must be replaced together so they wear evenly
.
NOTE:
If the pinion assembly (219) is not yet sepa
-
rated from the clutch housing (222), follow Steps 1 to
4. Otherwise, start at Step 5.
NOTE:
Refer to Fig. 10 for this procedure.
WARNING
T
o reduce the risk of serious injury
, always follow
the
Pressure Relief Procedure W
arning
on page
16 before repairing the sprayer
.
1.
Relieve the pressure.
2.
Disconnect the hose (63). Remove the spring clips
(49,52) and drain hose (51).
3.
Remove the bottom two screws (3) and lock
-
washers (4) from the clutch housing (222) and
then remove the top three screws and
lockwashers.
4. T
ap lightly on the back of the bearing housing (1
1)
with a plastic mallet to loosen the drive housing
assembly (5) from the clutch housing (222). Pull
the assembly away
.
5.
Remove the armature (212b) from the hub inside
the pinion housing (219).
6.
There are two ways to remove the rotor (212a).
a.
Remove the four screws (213). Install two of
the screws in the threaded holes in the rotor
.
Alternately tighten the screws until the rotor
comes of
f.
b.
Use a standard steering wheel puller (A) and
two 1/4–22 x 3 or 4 in. long screws (B). Re
-
place the short screws of the steering wheel
puller with the longer screws (B). T
urn the
screws (B) into the threaded holes of the rotor
.
T
ighten the long screw (C) until the rotor com
-
es of
f. See the Detail in Fig. 10.
7.
Skip ahead to
Reassembly
,
page 24, Step 2, or
continue on page 22.

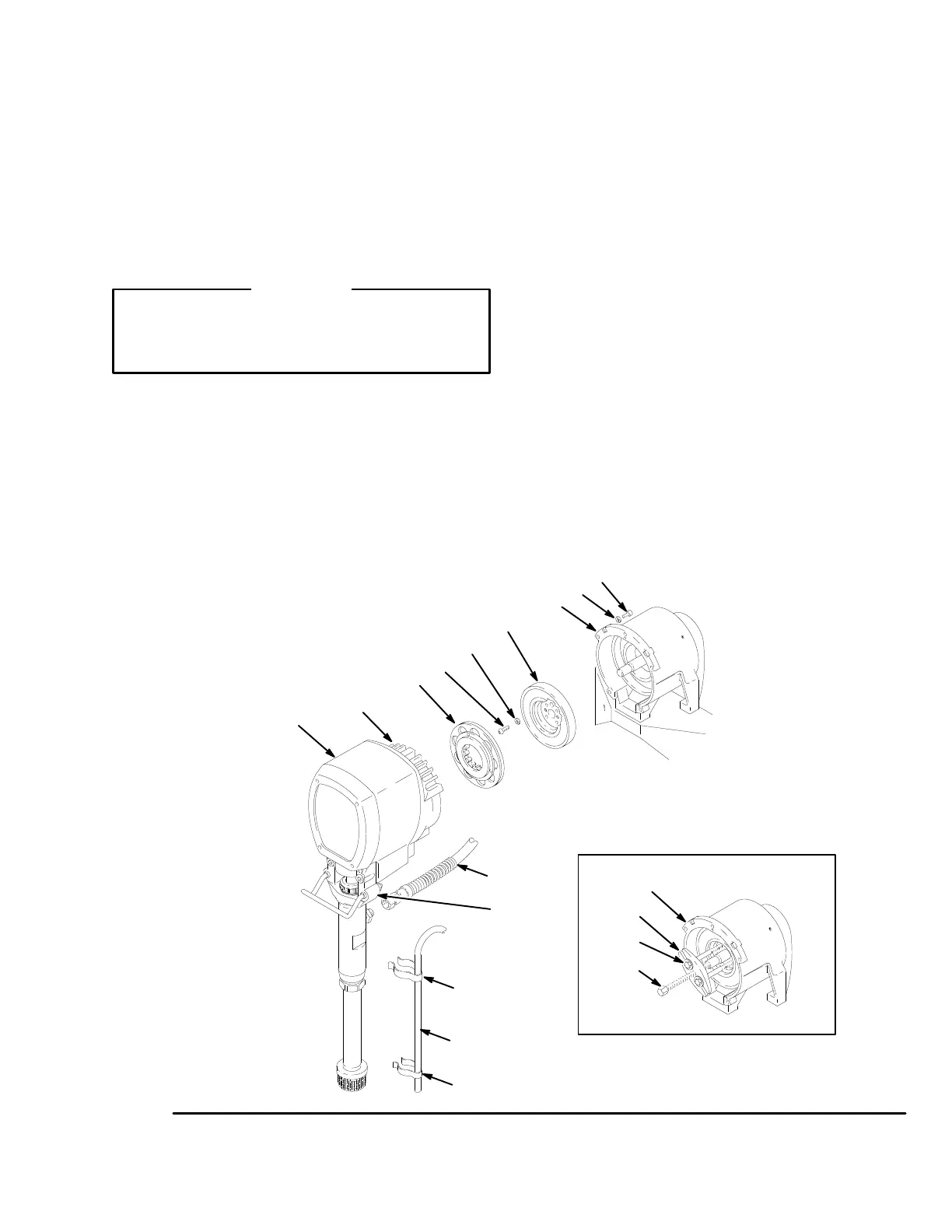

Fig. 10
02699
52
51
49
5
212b
213
212a
222
4
3
63
215
11
219
DETAIL
222
A
B
C
To Next Page
